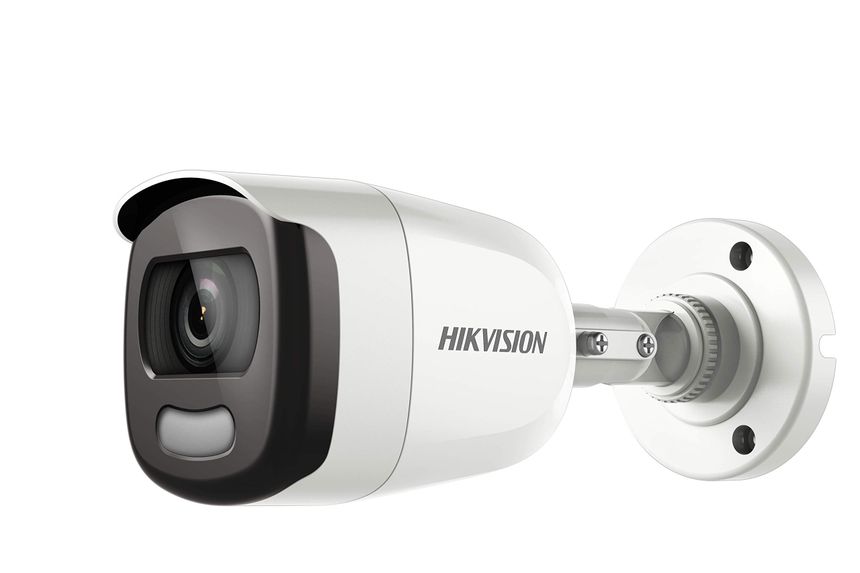

Hikvision DS-2CE10DF0T-PF(3.6mm) 2 MP ColorVu Fixed Mini Bullet Camera description

One of the biggest advantages of this product is that it makes your life easier. Packed with a host of features, it scores high on the aspect of functionality. The fact that it ensures a seamless user-interface makes it worth the buy.

• Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
• Signal System PAL/NTSC

• Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens MountM12

• Illuminator

• Supplement Light Type White Light
• Supplement Light Range White Light Distance: Up to 20 m
• Smart Supplement Light Yes

• Image

• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness;Mirror;Sharpness;Anti-Banding;AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night Mode Color
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement BLC;HLC;Global
• Noise Reduction3D DNR/2D DNR
• White Balance Auto/Manual

• Interface

• Video Output Switchable TVI/AHD/CVI/CVBS
• Alarm Solid Light Alarm (White Light)

• General

• Brand: Hikvision
• Power

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

  Max. 2.4 W

• Material Plastic
• Dimension161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Approx. 229 g (0.50 lb)
• Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Communication HIKVISION-C
• Language English

• Approval

• ProtectionIP67
•
