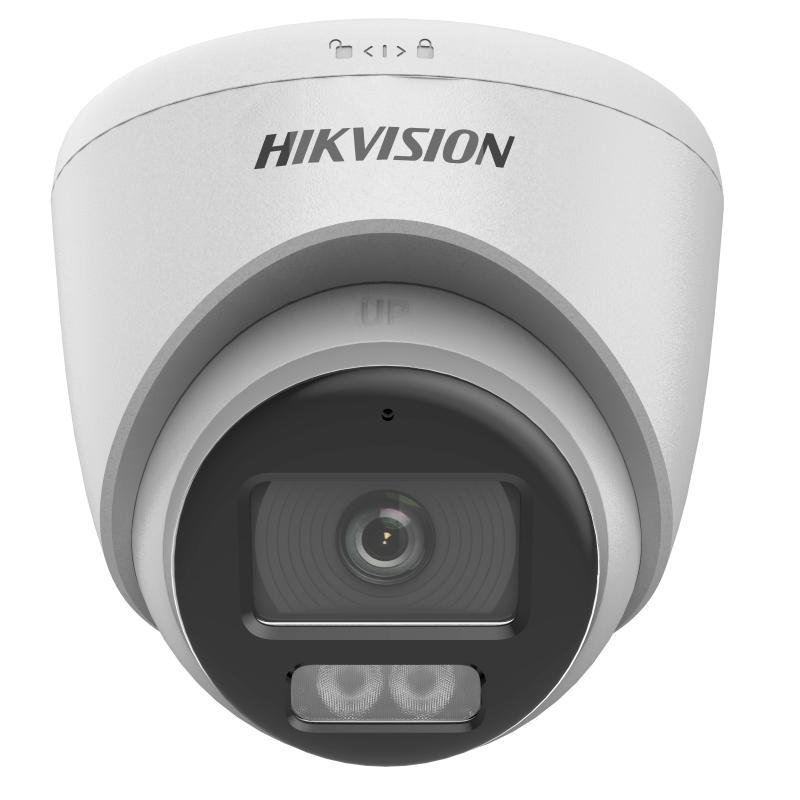

Hikvision DS-2CE72KF0T-LFS(2.8MM) 3K ColorVu Fixed Turret Camera
The Hikvision DS-2CE72KF0T-LFS is a 3K ColorVu Fixed Turret Camera designed for high-quality surveillance in low-light conditions.
Specification |
|
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
|
Frame Rate |
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°
3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Microphone |
|
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m,White Light: Up to 40 m |
Image |
|
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Auto/Color |
| White Balance | Auto/Outdoor/Global/Manual |
| AE (Auto Exposure) Mode | DWDR,BLC,HLC,Global,HLS |
| Noise Reduction | 2D DNR |
| Language | English |
| Function | Brightness,Smart IR,Sharpness,Anti -Banding,AGC |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio In | Built-in mic |
General |
|
| Power | 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply
the power for one camera. |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| Protection Level | IP67 |
| Material | Enclosure: Plastic Main body: Metal |
| Communication | HIKVISION-C |
| Dimension | Ø109.98 mm × 98.27 mm (Ø4.33″ × 3.87″) |
