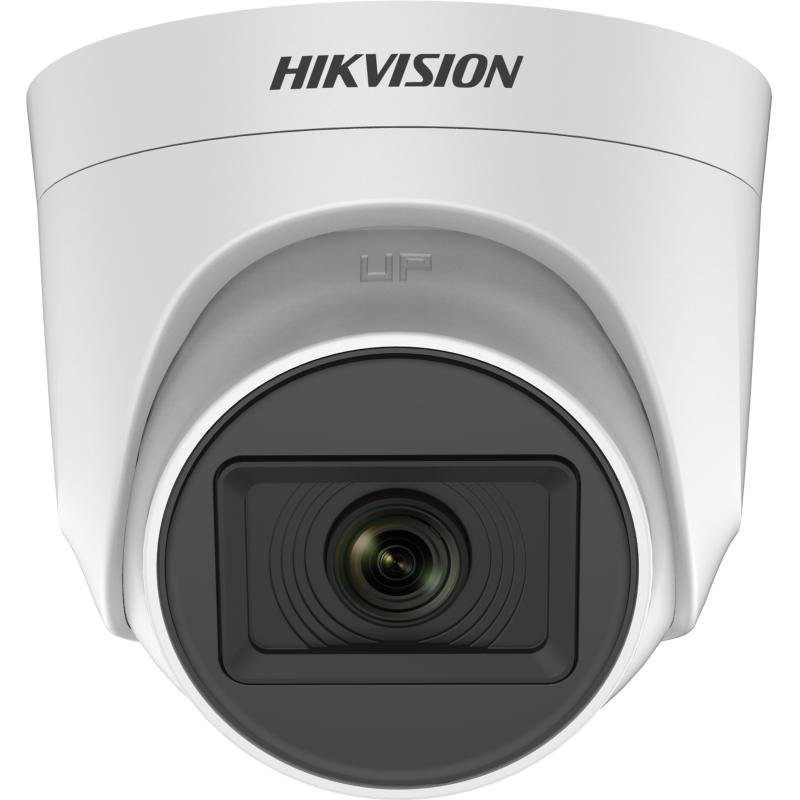

Hikvision DS-2CE76D0T-EXIPF(2.8MM) 2 MP Indoor Fixed Turret Camera
The Hikvision DS-2CE76D0T-EXIPF is a 2.0-megapixel, fixed turret camera ideal for indoor security applications. It captures high-quality video with a resolution of 1920 x 1080 pixels. The camera features a 2.8mm fixed lens that provides a wide field of view, making it suitable for monitoring larger areas.
For night vision, this camera is equipped with infrared (IR) illuminators that can reach up to 20 meters in distance. This ensures clear images even in low-light conditions. Another key feature is its switchable TVI/AHD/CVI/CVBS video output, which allows for compatibility with different video recorder systems.
This CC Camera boasts several outstanding technical components that make it a good choice for indoor security applications:
- High-resolution sensor:Â The 2.0-megapixel sensor captures high-quality images with a resolution of 1920 x 1080 pixels, providing clear details for monitoring and identification purposes.
- Wide field of view:Â The 2.8mm fixed lens offers a wide field of view, allowing you to cover a larger area with a single camera. This reduces the number of cameras needed for comprehensive surveillance.
- Excellent night vision:Â Equipped with infrared (IR) illuminators with a range of up to 20 meters, the camera delivers clear images even in low-light conditions. This ensures 24/7 surveillance without compromising on clarity.
- Video output flexibility:Â The camera features switchable TVI/AHD/CVI/CVBS video output. This makes it compatible with a wide range of video recorder systems, providing flexibility during installation and integration with existing security systems.
Specification
Camera | |
Image Sensor | 2 MP CMOS |
Signal System | PAL/NTSC |
Resolution | 1920 (H) Ă— 1080 (V) |
Frame Rate | TVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC |
Min. Illumination | 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Lens | 2.8 mm, 3.6 mm Fixed Lens |
Field of View | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 81°, vertical FOV: 42°, diagonal FOV: 100° |
Lens Mount | M12 |
Day & Night | ICR |
WDR (Wide Dynamic Range) | Digital WDR |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Menu | |
Image Mode | STD/HIGH-SAT |
AGC | Yes |
Day/Night Mode | Auto/Color/BW (Black and White) |
White Balance | Auto |
AE (Auto Exposure) Mode | DWDR, BLC, Global |
Noise Reduction | 2D DNR |
Language | English |
Function | Brightness, Mirror, Smart IR, Sharpness |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
Power Supply | 12 VDC ± 25% |
Consumption | Max. 3.3 W |
Material | Plastic |
IR Range | Up to 20 m |
Communication | HIKVISION-C |
Dimension | Φ 84.6 mm Ă— 78.9 mm (Φ 3.33″ Ă— 3.11″) |
Weight | Approx. 195g (0.43 lb.) |
