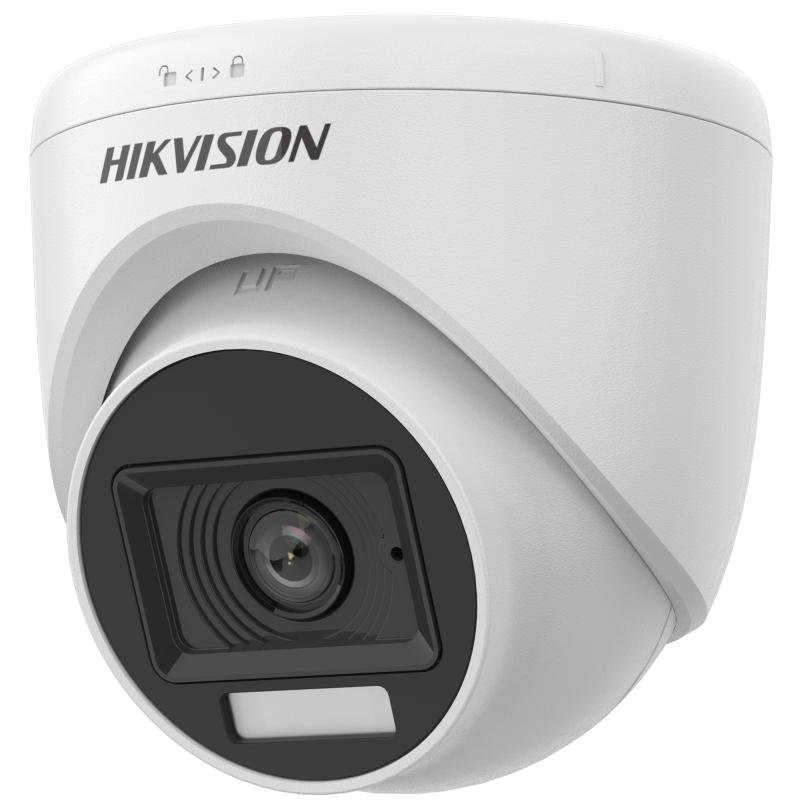

Hikvision DS-2CE76K0T-LPFS(2.8MM) 3K Smart Hybrid Light Audio Indoor Fixed Turret Camera
The Hikvision DS-2CE76K0T-LPFS (2.8MM) is a 3K (5MP) Smart Hybrid Light Fixed Turret Camera with audio support, designed for high-resolution surveillance with enhanced low-light capabilities.
Specification
| Camera | |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
Lens |
|
| Lens Type | 2.8 mm and 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR : Up to 20 m
White Light : Up to 20 m |
Image |
|
| Image Settings | Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global |
| White Balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
General |
|
| Material | Plastic |
| Dimension | 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″) |
| Weight | Approx. 160 g (0.35 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
|
Power Supply |
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 2.9 W |
