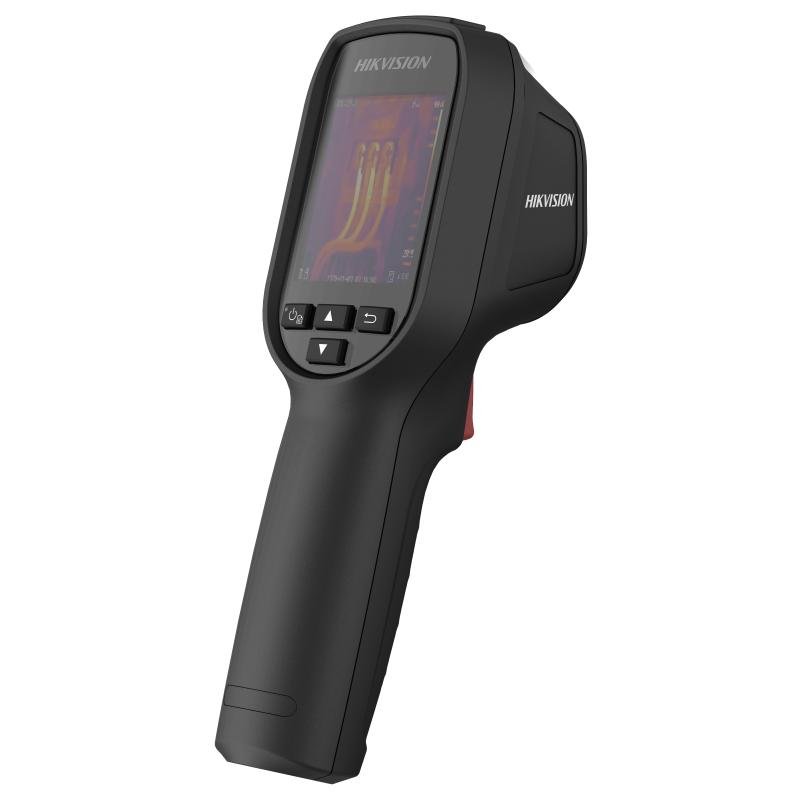

Hikvision DS-2TP31B-3AUF Thermographic Handheld Camera
The Hikvision DS-2TP31B-3AUF is a professional handheld thermal imaging camera designed for portable temperature measurement and inspection across industrial, electrical, and building maintenance applications.
The Temperature Screening Handheld Thermography Camera, specially designed for surface temperature measurement. It’s equipped with a 160 × 120 resolution thermal detector. It helps to detect high temperature quickly.
Note that the device is not for medical use.
Key Feature
- 160 × 120 resolution
- Thermography accuracy up to ± 5 °C
- 320 × 240 resolution 4’’ LCD display
- Built-in rechargeable Li-ion battery
- Up to 8 hours continuous running
Function Thermography
Device detects the real-time temperature, and display it on the screen.
Storage
Device is equipped with replaceable memory card to store snapshots.
Alarm
Device supports color alarm if temperature is higher than the setting value.
Specification
ModelParameter | DS-2TP31B-3AUF | |
Temperature Screening Handheld Thermography Camera | ||
Thermal Module |
Image sensor | Uncooled Focal Plane Arrays |
Max. Resolution | 160 × 120 | |
Pixel Pitch | 17μm | |
Response waveband | 8μm to 14μm | |
NETD | < 40mK (@ 25 °C,F#=1.0) | |
Field of View | 37.2° × 50 ° | |
Focal length | 3.1 mm | |
IFOV | 5.48 mrad | |
Min. Focus Length | ≥ 150 mm | |
Aperture | F 1.1 | |
Image Display | Monitor | 320 × 240 resolution 2.4’’ LCD display |
Palettes | Black hot, White hot, Rainbow, Ironbow | |
Thermography | Rules | Max. Temperature; Min. Temperature; CenterTemperature |
Thermographic Range | 30 °C to 45 °C | |
Thermographic Accuracy | ± 0.5 °C | |
Battery | Battery Type | Rechargeable Lithium Battery |
Battery Operating Time | 8 hours continuous running @ 25 °C | |
Function | Storage | Replaceable memory card (default 8 G, support up to 128 G storage) |
Photo | Thermal image | |
General |
Language | English |
Power | 3.7 VDC/0.4 A | |
Power Consumption | Less than 1.2 W | |
Hardware Interface | micro USB | |
Working Temperature | 10 °C to 35 °C (50 °F to 95 °F) | |
Protection level | IP54 | |
Drop Test Height | 2 m (6.56 feet) | |
Dimension | 196 mm × 117 mm × 59 mm (7.7″ × 4.6″ × 2.3″) | |
Weight | Less than 350 g (0.77 lb) |
