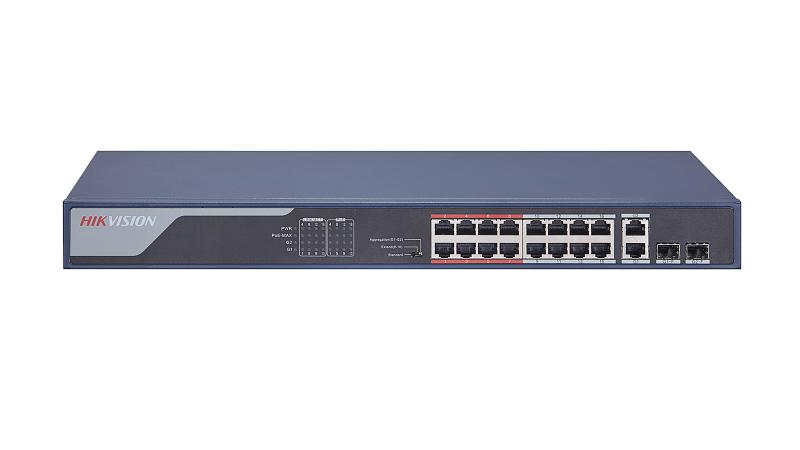

Hikvision DS-3E0318P-E 16 Port Unmanaged PoE Switch
Original price was: KSh 31,000.00.KSh 30,000.00Current price is: KSh 30,000.00. excl. VAT
features.
- 16×10/100Mbps Auto–MDIX PoEports
- Provides up to 30 watts per PoE port
- PoE power budget 230W
- 4 KV surge protection for PoE ports
- IEEE 802.3x flow control support
- Plug-and-play installation
- 7.2 Gbps switching fabric
- 2.75 MbitsRAM Data Buffer
- 4K MAC address entries
- Sturdy metal enclosure.
Buy online at Best price in Nairobi Kenya
Hikvision DS-3E0318P-E 16 Port Unmanaged PoE Switch description
Description
The 16 port PoE Switch can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs).
16 ports 100Mbps Unmanaged PoE Switch DS-3E0318P-E allows electricity to be transmitted along one single cable, allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones.
DS-3E0318P-E Hikvision Switch is cost friendly hence it is affordable to organizations that are cutting on cost in their operations.
Highlights
16 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.
Specifications
| Network Ports: | 18 | |
| PoE Port: | 16, 10/100Mbps RJ45 ports | |
| Uplink Port: | 2, 1000M Combo Port |
| STANDARD | ||
|---|---|---|
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity: | 7.2Gbps | |
| Max. Forwarding Rate: | 5.36Mpps | |
| High Priority Ports: | Ports 1-8 | |
| Forwarding Mode: | Store-and-forward | |
| MAC Address Table: | 4k | |
| Flow Control: | IEEE802.3x full duplex | |
| POWER OVER ETHERNET | ||
|---|---|---|
| PoE Standard: | IEEE802.3af, IEEE802.3at | |
| PoE Power Budget: | 230W | |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m | |
| GENERAL | ||
|---|---|---|
| Power Supply: | 100-240V AC, 50/60Hz | |
| Power Consumption: | ≤250W | |
| Surge Protection: | 4KV | |
| Working Temperature: | Temperature: 0℃-40℃ | |
| Working Humidity: | Humidity: 10%-90% , non-condensing | |
| Storage Temperature: | Temperature: -40℃-70℃ | |
| Storage Humidity: | Humidity: 5%–90% , non-condensing | |
| Weight: | 3.72kg | |
| Dimension: | 440mm*285mm*43mm | |
| ACCESSORIES | ||
|---|---|---|
| SFP modules (Optional): | HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km | |
