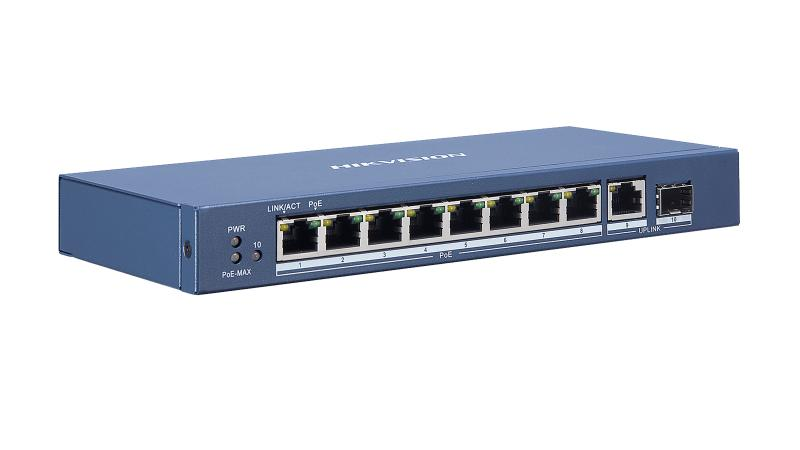

Hikvision DS-3E0510P-E 8-Port Gigabit PoE-Compliant Unmanaged Network Switch

Original price was: KSh 15,825.00.Current price is: KSh 15,625.00. excl. VAT

Key Features

8 x Gigabit RJ45 PoE-Compliant Ports
1 x Gigabit RJ45 Uplink Port
20 Gb/s Switching Capacity
14.88 Mpps Forwarding Capacity
Desktop Design
Plug-and-Play
6kV Surge Protection per Port

Buy online at Best price in Nairobi Kenya

SKU: HB4761 Category: Hikvision Switches

Description
Reviews (0)

Hikvision DS-3E0510P-E 8-Port Gigabit PoE-Compliant Unmanaged Network Switch description

Overview

Expand your network capacity using the DS-3E0510P-E 8-Port Gigabit PoE-Compliant Unmanaged Network Switch from Hikvision. This plug-and-play unmanaged switch doesn’t require any additional setup or configuration. It features eight PoE-compliant Gigabit Ethernet ports to connect surveillance cameras and other powered network devices in addition to a Gigabit RJ45 uplink port for expansion.

The switch has a 20 Gb/s non-blocking switching capacity and a forwarding capacity of 14.88 Mbps. It also delivers up to 30W per port and up to 6kV surge protection with a total power budget of 110W. With its metal construction and fanless design, the DS-3E0510P-E operates silently on your desktop.

Key Features

Growing Your Network

The DS-3E0510P-E switch includes eight Gigabit PoE-compliant Ethernet ports and one Gigabit RJ45 uplink port.

Powering Your Devices

This switch has a 110W power budget, delivering up to 30W per port and 6kV surge protection.

Plug-and-Play Design

The DS-3E0510P-E unmanaged switch does not require any additional configuration after being installed onto your network.

Specifications

Network Parameters

Ports8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding ModeStore-and-forward switching
MAC Address Table4 K
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
Internal Cache1.5 Mbits

PoE Power Supply

PoE StandardIEEE 802.3af, IEEE 802.3at
PoE Power PinEnd-span: 1/2(-), 3/6(+)
PoE PortPorts 1 to 8
Max. Port Power30 W
PoE Power Budget110 W

General

Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)
ShellMetal material, fan-free design
Gross Weight1.4 kg (3.09 lb)
Net Weight0.6 kg (1.32 lb)
Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity5% to 95% (no condensation)
Power Consumption In Idle10 W
Power Supply48 VDC, 2.5 A
Max. Power Consumption120 W

Approval

EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 16)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2026)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2015)
