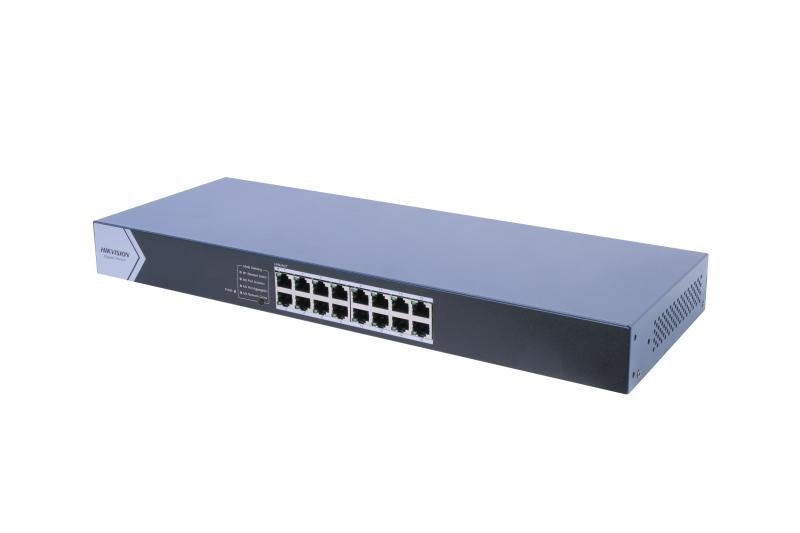

Hikvision DS-3E0516-E(C) 16-Port Gigabit Switch

Original price was: KSh 8,000.00.Current price is: KSh 7,000.00. excl. VAT

16 × 10/100/1000 Mbps RJ45 Port
Easy Plug-and-Play Installation
Rack-Mounting
Rugged Metal Case, Exquisite and Beautiful Design

SKU: HB40857 Categories: Hikvision Store Kenya, Hikvision Switches Brand: Hikvision

Description
Reviews (0)

Hikvision DS-3E0516-E(C) 16-Port Gigabit Switch

Hikvision DS-3E0516-E(C) provides sixteen 10/100/1000 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments.

Specification

General
Shell	Metal material, fan-free design
Net Weight	1.3 kg (2.9 lb)
Gross Weight	1.9 kg (4.2 lb)
Dimensions (W × H × D)	440.00 mm × 44.00 mm × 160.00 mm (17.32” × 1.73” × 6.30”)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100-240 V AC, 50/60 Hz, Max. 0.3 A
Max. Power Consumption	12 W
Power Consumption in Idle	2.8 W
Installation Mode	Rack (equipped with mounting ears)
Surge Protection	6 kV
Network Parameters
Ports	16 × Gigabit RJ45 port
MAC Address Table	8 K
Switching Capacity	32 Gbps
Packet Forwarding Rate	23.81 Mpps
Internal Cache	4.1 Mbits
Approval
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015)
Safety	CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Physical Interface

No.	Port/Indicator	Description
①	PWR Indicator	l Solid on: The switch is powered on normally. l Unlit: No power supply is connected or power supply is abnormal.
②	Working Mode Indicator	l Solid on: The switch works in this mode. l Unlit: The switch does not work in this mode.
③	Mode Button	Used for switching the switch’s working mode. (The switchover takes effect immediately. Once the switch is powered off, the working mode operated before the power failure is automatically saved.)
④	LINK/ACT Indicator	l Solid on: The port is connected. l Flashing: The port is transmitting data. l Unlit: The port is disconnected or connection is abnormal.
⑤	Gigabit RJ45 Port	Used for connection to another device via a network cable.
⑥	Grounding Terminal	Used for connection to a grounding cable to protect the switch from lightning.
⑦	Power Supply	Use the attached AC power cord to connect the switch to a socket.
