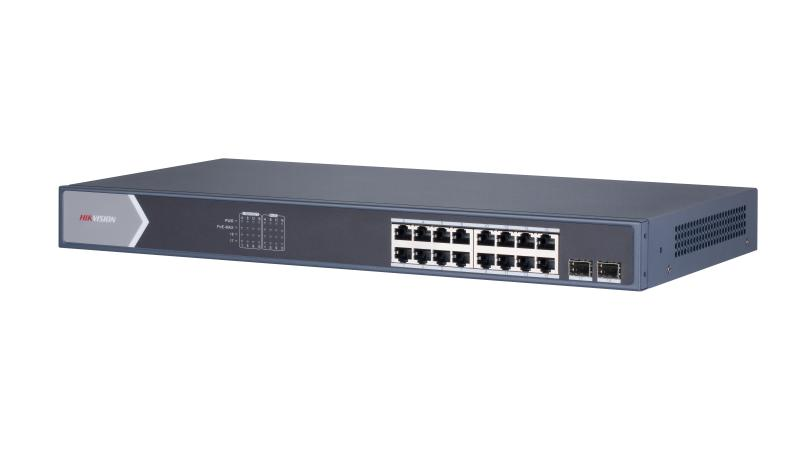

Hikvision DS-3E0518P-E/M 16-Port Gigabit Unmanaged PoE Switch Features

Expand your network capacity using the Hikvision DS-3E0518P-E/M 16-Port Gigabit PoE-Compliant Unmanaged Network Switch. This plug-and-play unmanaged switch doesn’t require any additional setup or configuration. It features 16 PoE-compliant Gigabit Ethernet ports to connect surveillance cameras and other powered network devices in addition to a Gigabit RJ45 uplink port for expansion.

The switch has a 36 Gb/s non-blocking switching capacity and a forwarding capacity of 26.784 Mbps. It also delivers up to 30W per port and up to 6kV surge protection with a total power budget of 230W. With its metal construction and fanless design, the DS-3E0518P-E operates silently on your desktop.

Technical specifications

• General

• ShellMetal material
• Net Weight2.50 kg (5.51 lb)
• Gross Weight3.57 kg (7.87 lb)
• Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A;
• Max. Power Consumption150 W
• Power Consumption In Idle25 W
• Installation ModeRack (equipped with mounting ears)
• Surge Protection6 KV

• Network Parameters

• Ports16 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table8 K
• Switching Capacity36 Gbps
• Packet Forwarding Rate26.79 Mpps
• Internal Cache4.1 Mbits

• PoE Power Supply

• PoE StandardIEEE 802.3af;IEEE 802.3at;
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget125 W

• Dialing Function

• Long Range/
• Port Isolation/
• PoE Watchdog/

• Approval

• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)

See product datasheet
