Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch

Original price was: KSh 93,000.00.Current price is: KSh 91,000.00. excl. VAT

IEEE 802.3af/at PoE standard
48 x Gigabit PoE Ports, 2 × gigabit RJ45, 2 x fiber optical ports
Total PoE Power Budget 470W
PoE Watchdog, STP/RSTP, VLAN, SNMP, QoS
104 Gbps Switching Capacity
16 K MAC Address Entries

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41103 Categories: Hikvision Store Kenya, Hikvision Switches Brand: Hikvision

Description
Reviews (0)

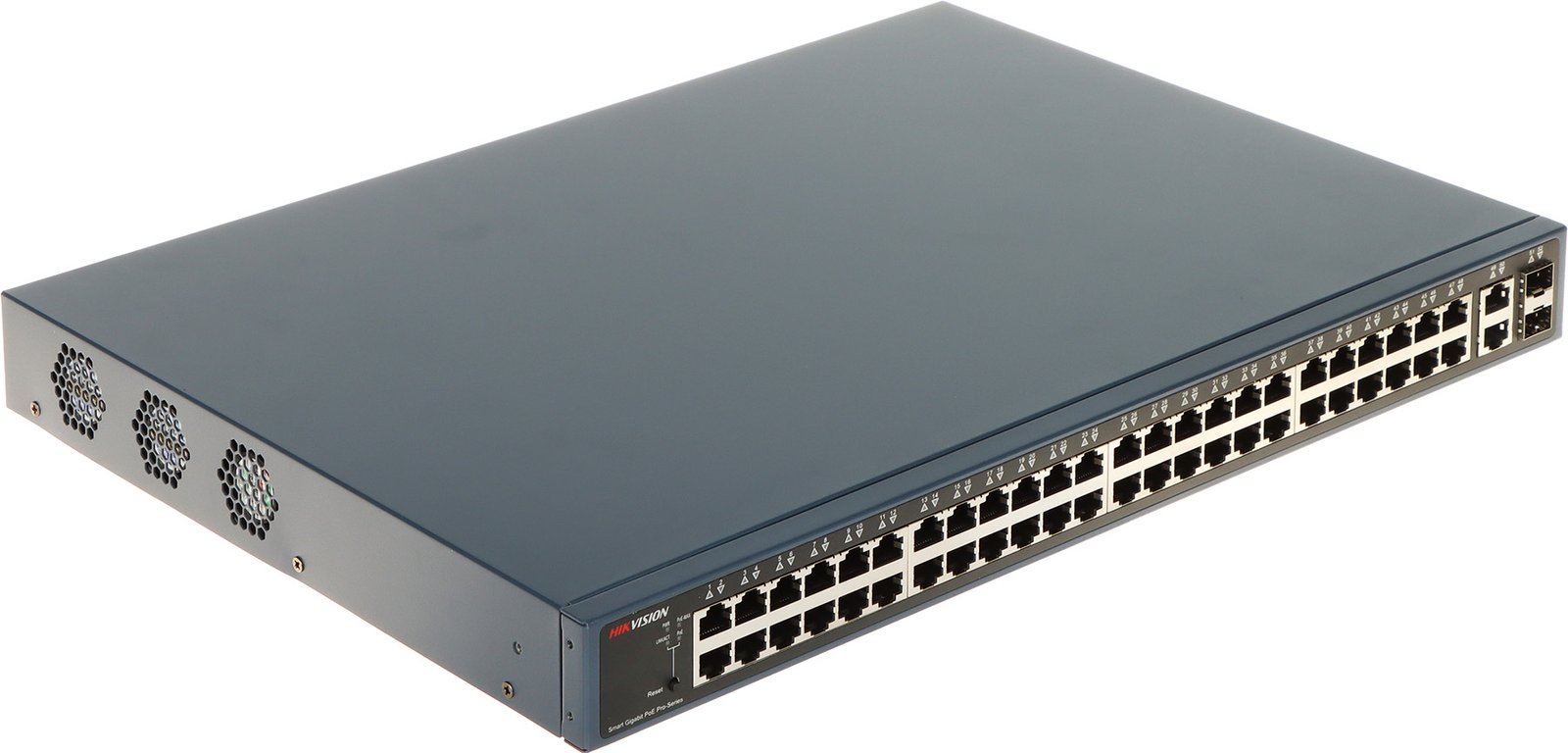

Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch

The Hikvision DS-3E1552P-SI is a 48-port Gigabit Smart PoE+ switch designed for IP surveillance systems and enterprise networks, combining high-power PoE delivery with advanced management features.

Specification

General
Shell	Metal material
Net Weight	4.35 kg (9.59 lb)
Gross Weight	4.5 kg (9.92 lb)
Dimensions (W × H × D)	440.00 mm × 44.00 mm × 323.80 mm (17.32” × 1.73” × 12.71”)
Operating Temperature	0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100 to 240 V AC, 50/60 Hz, Max. 5 A
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	500 W
Power Consumption in Idle	30 W
Surge Protection	6 kV
Network Parameters
Ports	48 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table	16 K
Switching Capacity	104 Gbps
Packet Forwarding Rate	77.38 Mpps
Internal Cache	12 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 48
Max. Port Power	30 W
PoE Power Budget	470 W
Software Function
Long Range	Ports 1 to 48: up to 300 m.Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 48: port isolation mode to improve network security.Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 48: auto detect and restart the cameras that do not respond.
Link Aggregation	Link aggregation combines multiple physical ports into a single logical port to achieve load balancing, expand bandwidth, and protect ports. The system supports static link aggregation. Support 8 aggregation groups.
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.Support port-based priority configuration. Support SP, WRR priority schedule mode.

Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP. Suppport 802.1w RSTP.
VLAN	VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
System Maintenance	Support remote upgrade, default parameter restoration, logs viewing, basic networkparameter configuration, import and export configuration, and time synchronization.
Port Rate-Limiting	Port rate-limiting is used for port bandwidth adjustment to prevent networkcongestion.
Storm Control	Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
Approval
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU);Reach (Regulation (EC) No.19072006)

This switch represents Hikvision’s professional-grade networking solution, specifically engineered for demanding video surveillance environments while maintaining enterprise-class features.
