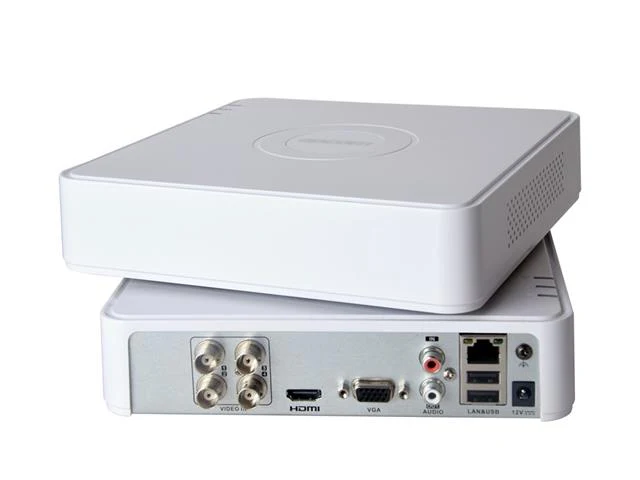

Hikvision DS-7108HGHI-M1 8-ch 720p Mini 1U H.265 DVR
The Hikvision DS-7108HGHI-M1 is a compact 8-channel 720p DVR designed for small-scale surveillance systems.
Specification |
|
Motion Detection 2.0 |
|
  Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Recording |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
 Encoding Resolution |
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
     Frame Rate |
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
Video Bitrate |
32 Kbps to 4 Mbps |
Stream Type |
Video, Video & Audio |
Audio Compression |
G.711u |
Audio Bitrate |
64 Kbps |
Video and Audio |
|
 IP Video Input |
2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
 Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDTVI Input |
1080p25, 1080p30, 720p25, 720p30 |
AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
HDCVI Input |
1080p25, 1080p30, 720p25, 720p30 |
CVBS Input |
Support |
HDMI Output |
1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz |
VGA Output |
1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz |
Video Output Mode |
HDMI/VGA simultaneous output |
 Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio |
Reuse the first audio input |
Synchronous playback |
8-ch |
Network |
|
Total Bandwidth |
72 Mbps |
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPâ„¢, HTTPS |
Remote Connection |
64 |
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
Auxiliary Interface |
|
SATA |
1 SATA interface |
Capacity |
Up to 4 TB capacity for each disk |
USB Interface |
Rear panel: 2 Ă— USB 2.0 |
Alarm In/Out |
N/A |
General |
|
Power Supply |
12 VDC, 1.5 A |
Consumption |
≤ 17 W (without HDD) |
Working Temperature |
-10 °C to 55 °C (14 °F to +31 °F) |
Working Humidity |
10% to 90% |
Dimension (W Ă— D Ă— H) |
200 Ă— 200 Ă— 45 mm (7.9 Ă— 7.9 Ă— 1.8 inch) |
Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
