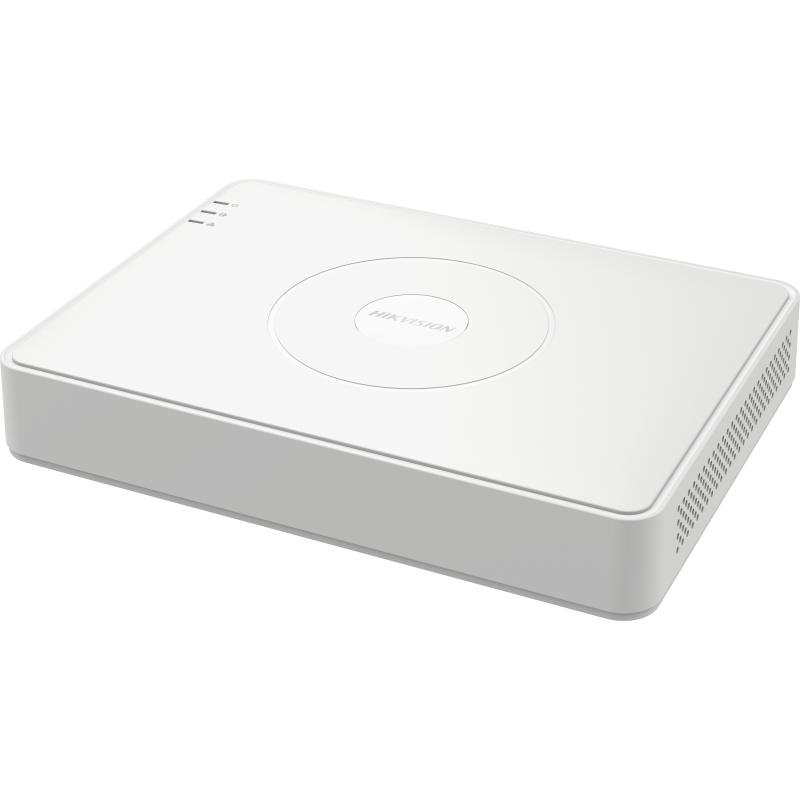

Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR
Original price was: KSh 11,000.00.KSh 10,000.00Current price is: KSh 10,000.00. excl. VAT
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- 265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Support all channels HDTVI two-way audio technology
Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR
The Hikvision DS-7116HGHI-M1 is a compact 16-channel 720p H.265 DVR designed for small to medium surveillance systems.
Specification
| Motion Detection 2.0 | |
| Â
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported; |
Video and Audio |
|
| Â
IP Video Input |
2-ch (up to 18-ch)
Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz |
| VGA Output | 1-ch, 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 16-ch |
Recording |
|
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Â
Encoding Resolution |
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For standard definition stream access: WD1/4CIF/VGA/CIF |
| Â
  Frame Rate |
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
Network |
|
| Total Bandwidth | 96 Mbps |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnPâ„¢, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1, SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | 2 Ă— USB 2.0 |
General |
|
| Power Supply | 12 VDC, 1.6 A |
| Consumption | ≤ 7 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W Ă— D Ă— H) | 285 Ă— 210 Ă— 48 mm (11.2 Ă— 8.3 Ă— 1.9 inch) |
| Weight | ≤ 1.8 kg (without HDD, 4.0 lb.) |
