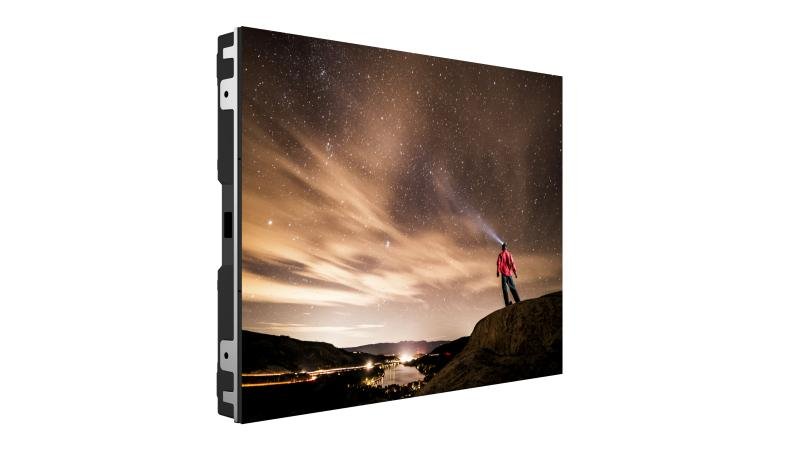

Hikvision DS-D4018CS-1F Indoor LED Display
The Hikvision DS-D4018CS-1F is an indoor LED display panel designed for high-quality digital signage, advertising, and information display in controlled environments.
Specification
| Product Model | |
| Product Model | DS-D4018CS-1F |
| Product Type | |
| Product Type | Indoor small pitch full color LED |
| Cabinet | |
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P1.8 |
| Pixel Pitch | 1.86 mm |
| Pixel Density | 288906 dots/m² |
| Modules Component | 2 × 3 |
| Dimensions (W × H × D) | 640 (W) mm × 480 (H) mm × 58.6 (D) mm (25.197” × 18.898” × 2.307”) |
| Resolution | 344 × 258 |
| Area | 0.3072 m² |
| Weight | 7.55 kg (16.64 lb) |
| Cabinet Material | Die cast aluminum |
| Maintenance Method | Complete front maintenance |
| Module | |
| Dimensions | 320 mm × 160 mm |
| Module Resolution | 172 × 86 |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | 160° (H)/160° (V) |
| Contrast Ratio | 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | Up to 16 bit |
| Power | |
| Max. Consumption | ≤ 450 W/m² |
| Average Consumption | ≤ 150 W/m² |
| Input Voltage | 100 to 240 VAC ± 10% |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Working Humidity | 10% to 60% RH (without condensation) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 10% to 85% RH (without condensation) |
| General | |
| Package Dimensions (W × H × D) | 758 (W) mm × 606 (H) mm × 442 (D) mm (29.843” × 23.858” × 17.402”) |
| Packing List | Qualification Card × 1 Warranty Card × 1 RoHS × 1Several Joint pieces, Fixing screws and Signal cables |
| Net Weight | 4 cabinets in 1 box: 19.3 kg (42.55 lb)24 lamp boards in 1 box: 12.0 kg (26.46 lb) |
