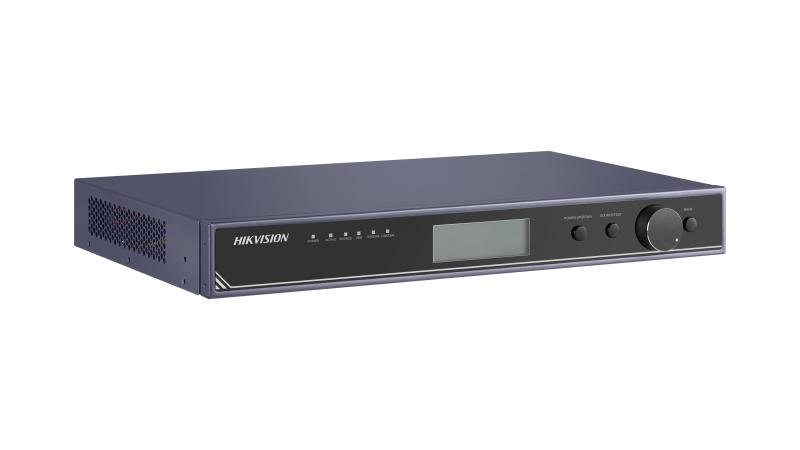

Hikvision DS-D42C08-H LED Display Controller

Name: Hikvision DS-D42C08-H LED Display Controller
SKU: HB41074
Availability: InStock

Original price was: KSh 242,000.00.Current price is: KSh 241,000.00. excl. VAT

DS-D42C08-H LED Display Controller, used with LED full-color display screens, can achieve seamless stitching of the video wall in any dimensions. It is applicable to meeting rooms, studios, stadiums, airports, stations, banks, advertisements, family cinemas, etc

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41074 Category: Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

Hikvision DS-D42C08-H LED Display Controller

The Hikvision DS-D42C08-H is an LED display controller designed to manage and drive Hikvision’s indoor/outdoor LED screens, including fixed and modular displays. It acts as the “brain” of the LED display system, processing video signals and controlling brightness, color, and refresh rates.

Features

8 Gigabit Ethernet output ports, with up to 4096 × 2160@30 Hz signal input.
Up to 3840 × 1080@60 Hz signal input. Point-to-point display for 8 network interfaces.
Automatic source search: Enabled by default.
3D synchronized signal input and output interface: 3D signal accessible, 3840 × 1080@60 Hz input and output for each card.
Audio device access: Audio device accessible, with audio input and output interfaces.
Light sensor extension: Realize light sensor adjustment with no need to add a multi-functional card.
Dual-mode remote control expansion interfaces: Infrared and USB RF Wi-Fi expansion interfaces, remote control enabled.
Competent with load capacity: 5 MP.
Cloud upgrade: Remote cloud online upgrade accessible.
Strip display: Single line super long subtitle display with the content being left-justified, right-justified, centered, or scrolled.
Scene management: Scenes customizable and switchable.
Multi-controller cascade display realizes better synchronization.
3480 Hz high refresh rate and nanosecond response time ensure smooth video pictures.

specifications

Model		DS-D42C08-H
Interface	Video & Audio Input	2 × HDMI
	Video & Audio Output	1 × HDMI,1 × MONITOR
	Network Interface	8
	Control Interface	RJ45 × 1
Processing Performance	Max. Load Capacity	5 MP
	Frame Frequency	60 Hz
	Refresh Rate	3840 Hz
	Processing Depth	8 bit , 10 bit
	Grey Level	16 bit
	Display Color	2^16 × 2^16 × 2^16
	Brightness Control	1 to 100 levels adjustable (gradual white balance)
	Max. Resolution of BarDisplay	20000 × 256 pixels
Power	Max. Consumption	40 W
	Average Consumption	30 W
	Input Voltage	100 to 240 VAC
Working Environment	Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
	Working Humidity	10% to 80%
	Storage Temperature	-10 °C to 60 °C (14 °F to 140 °F)
	Storage Humidity	10% to 80%
General	Product Dimensions(W × H × D)	442 mm × 249.5 mm × 57 mm (17.40” × 9.82” × 2.24”)
	Package Dimensions(W × H × D)	576 mm × 428 mm × 121 mm (22.56” × 16.73” × 4.65”)
	Net Weight	4.20 kg (7.73 lb)
	Gross Weight	5.20 kg (10.10 lb)
	Packing List	Network cable (1.5 m) × 1, infrared signal cable (1.5 m) × 1, hanger accessory box ×1, desiccant × 1, VC power cord (1.2 m) × 1, multilingual quick start guide × 1
