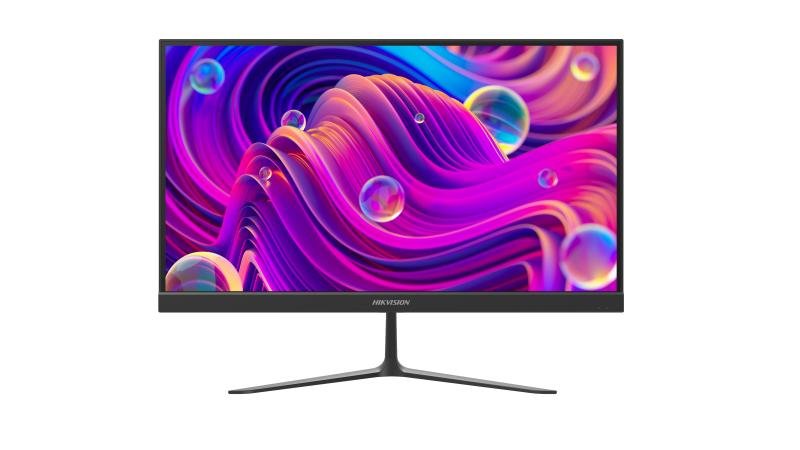

Hikvision DS-D5022F2-2V1 – 21.5 inch FHD Borderless Monitor
Original price was: KSh 11,000.00.KSh 10,000.00Current price is: KSh 10,000.00. excl. VAT
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS FHD (1920 × 1080) display.
- 178° ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Hikvision DS-D5022F2-2V1 – 21.5 inch FHD Borderless Monitor
The Hikvision DS-D5022F2-2V1 is a 21.5-inch Full HD (1920×1080) borderless monitor designed for professional surveillance and general office use.
Specifications
Model | ||
Display | Screen Size | 21.45 inch |
Active Display Area | 478.656 (H) mm × 260.280 (V) mm | |
Resolution | 1920 × 1080 | |
Backlight | E-LED | |
Pixel Pitch | 0.241 (H) mm × 0.241 (V) mm | |
Brightness | 250 cd/m² | |
Viewing Angle | 178° (H)/178° (V) | |
Color Depth | 8 bit, 16.7 M | |
Contrast Ratio | 3000:1 | |
Response Time | 6.5 ms | |
Refresh Rate | Max. 75 Hz, Typ. 60 Hz | |
Haze | Haze 25%, 3H | |
Reliability | 7 × 16 H | |
Color Gamut | 72% NTSC | |
Interface | Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
Power | Power Supply | DC 12 V, 2.0 A |
Power Consumption | ≤ 24 W | |
Standby Consumption | ≤ 0.5 W | |
Working Environment | Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Working Humidity | 20% RH to 90% RH (Non-Condensing) | |
Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
Storage Humidity | 10% RH to 90% RH (Non-Condensing) | |
General | Casing Material | Plastic |
VESA | 75 mm × 75 mm (4 – M4 × 6 mm) | |
Bezel Width | 2.38 mm (top/left/right), 21.55 mm (bottom) | |
Product Dimensions (W × H × D) | With base: 493.26 (W) mm × 367.02 (H) mm × 162.73(D) mm (19.42” × 14.45” × 6.41”) Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm (19.42” × 15.49” × 1.67”) | |
Package Dimensions (W × H × D) | 599 (W) mm × 393 (H) mm × 109 (D) mm (23.58” × 15.47” × 4..29”) | |
Net Weight | 2.0 ± 0.5 kg (4.41 ± 1.10 lb.) | |
Gross Weight | 3.2 ± 0.5 kg (7.05 ± 1.10 lb.) | |
Packing List | Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 | |
Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information | |
Physical Interface
Model | DS-D5022F2-2V1 | |
Display | Screen Size | 21.45 inch |
Active Display Area | 478.656 (H) mm × 260.280 (V) mm | |
Resolution | 1920 × 1080 | |
Backlight | E-LED | |
Pixel Pitch | 0.241 (H) mm × 0.241 (V) mm | |
Brightness | 250 cd/m² | |
Viewing Angle | 178° (H)/178° (V) | |
Color Depth | 8 bit, 16.7 M | |
Contrast Ratio | 3000:1 | |
Response Time | 6.5 ms | |
Refresh Rate | Max. 75 Hz, Typ. 60 Hz | |
Haze | Haze 25%, 3H | |
Reliability | 7 × 16 H | |
Color Gamut | 72% NTSC | |
Interface | Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
Power | Power Supply | DC 12 V, 2.0 A |
Power Consumption | ≤ 24 W | |
Standby Consumption | ≤ 0.5 W | |
Working Environment | Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Working Humidity | 20% RH to 90% RH (Non-Condensing) | |
Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
Storage Humidity | 10% RH to 90% RH (Non-Condensing) | |
General | Casing Material | Plastic |
VESA | 75 mm × 75 mm (4 – M4 × 6 mm) | |
Bezel Width | 2.38 mm (top/left/right), 21.55 mm (bottom) | |
Product Dimensions (W × H × D) | With base: 493.26 (W) mm × 367.02 (H) mm × 162.73(D) mm (19.42” × 14.45” × 6.41”) Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm (19.42” × 15.49” × 1.67”) | |
Package Dimensions (W × H × D) | 599 (W) mm × 393 (H) mm × 109 (D) mm (23.58” × 15.47” × 4..29”) | |
Net Weight | 2.0 ± 0.5 kg (4.41 ± 1.10 lb.) | |
Gross Weight | 3.2 ± 0.5 kg (7.05 ± 1.10 lb.) | |
Packing List | Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 | |
Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information | |
