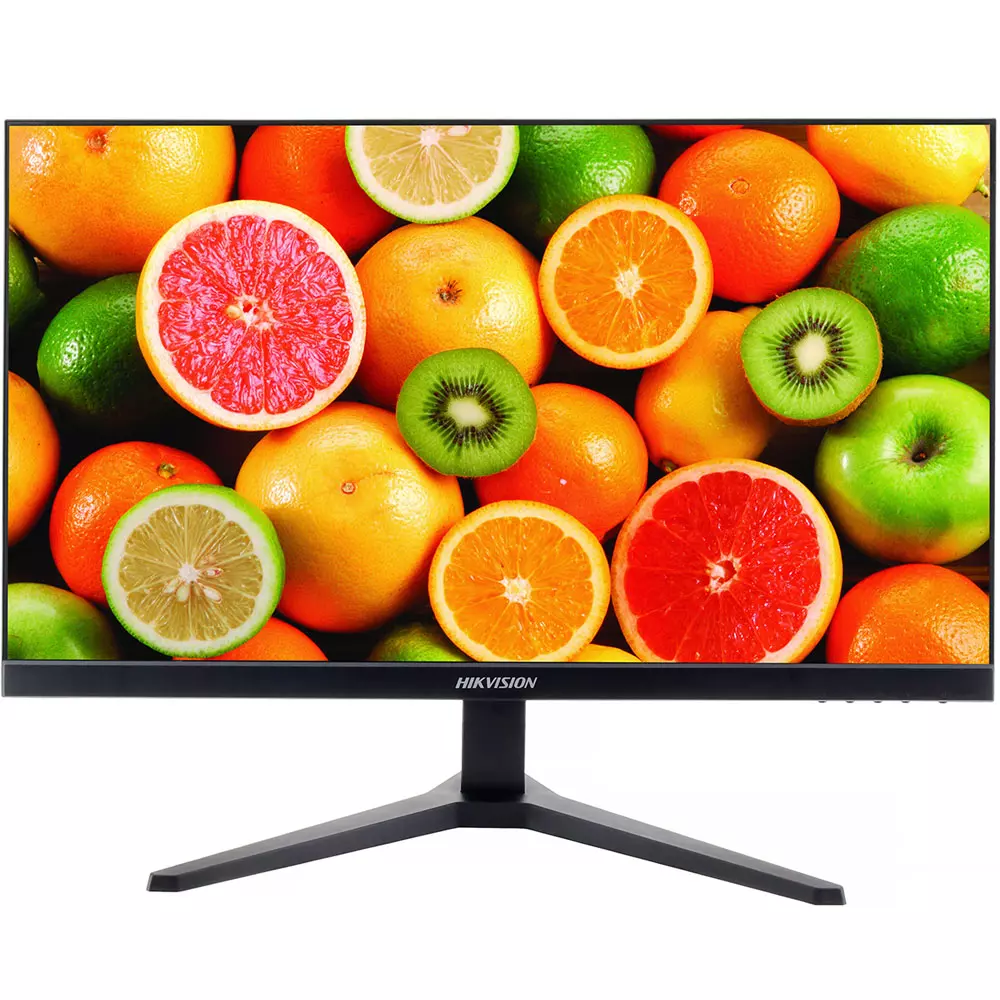

Hikvision DS-D5024F2-2P2 – 23.8 inch FHD IPS 100Hz V-bracket
Original price was: KSh 14,000.00.KSh 13,000.00Current price is: KSh 13,000.00. excl. VAT
- 100 Hz refresh rate, more fluid and life-like video.
- IPS technology for wide, 178° ultra-wide view screen.
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS FHD (1920 × 1080) display.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
Hikvision DS-D5024F2-2P2 – 23.8 inch FHD IPS 100Hz V-bracket
The Hikvision DS-D5024F2-2P2 is a 23.8-inch Full HD (1920×1080) IPS monitor designed for video surveillance and security applications.
Specifications
|
Display |
|
|
Screen Size |
23.8 inch |
|
Active Display Area |
527.04 (H) mm × 296.46 (V) mm |
|
Resolution |
1920 × 1080 |
|
Backlight |
E-LED |
|
Pixel Pitch |
0.2745 (H) mm × 0.2745 (V) mm |
|
Brightness |
300 cd/m² |
|
Viewing Angle |
178° (H)/178° (V) |
|
Color Depth |
8 bit, 16.7 M |
|
Contrast Ratio |
1300:1 |
|
Response Time |
14 (Typ) ms, 5 (OD) ms |
|
Refresh Rate |
Typ. 60 Hz, Max. 100 Hz |
|
Haze |
Haze 25%, 3H |
|
Reliability |
7 × 24 H |
|
Color Gamut |
72% NTSC |
Interface |
|
|
Video & Audio Input |
HDMI 1.4 × 1, VGA × 1 |
|
Video & Audio Output |
Audio Out × 1 |
|
Power |
|
|
Power Supply |
DC 12 V, 2.5 A |
|
Power Consumption |
≤ 25 W |
|
Standby Consumption |
≤ 0.5 W |
Working Environment |
|
|
Working Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
Working Humidity |
20% RH to 90% RH (Non-Condensing) |
|
Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
|
Storage Humidity |
10% RH to 90% RH (Non-Condensing) |
General |
|
|
Casing Material |
Plastic |
|
VESA |
100 mm × 100 mm (4 – M4 × 10 mm) |
|
Bezel Width |
1.8 mm (top/left/right), 21.4 mm (bottom) |
|
Product Dimensions (W × H × D) |
With base: 538.40 (W) mm × 408.21 (H) mm × 186.37 (D) mm (21.20 (W) inch × 16.07 (H) inch × 7.34 (D) inch ) Without base: 538.40 (W) mm × 324.79 (H) mm × 37.50 (D) mm (21.20 (W) inch × 12.79 (H) inch × 1.48 (D) inch ) |
|
Package Dimensions (W × H × D) |
600 (W) mm × 408 (H) mm × 94 (D) mm (23.62 (W) inch × 16.06 (H) inch × 3.70 (D) inch) |
|
Net Weight |
2.8 ± 0.5 kg (6.17 ± 1.10 lb) |
|
Gross Weight |
3.8 ± 0.5 kg (8.38 ± 1.10 lb) |
|
Packing List |
Monitor × 1, Base component × 1, Power adapter (12 V, 2.5 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
|
Remarks |
The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
Physical interface
|
Interface |
Description |
Interface |
Description |
|
HDMI |
HDMI 1.4 digital signal input interface |
VGA |
VGA analog signal input interface |
|
Audio Out |
Audio out interface |
DC |
DC 12 V 2.5 A input interface |
