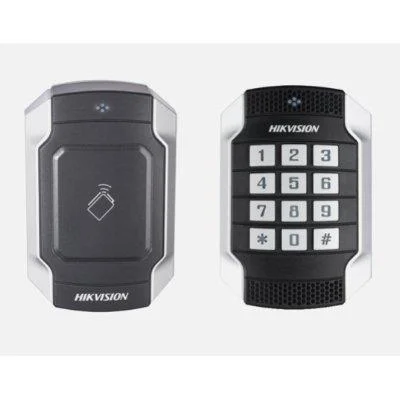

Hikvision DS-K1104MK Mifare Reader & Keypad description
The Hikvision DS-K1104MK Mifare Reader & Keypad is a high-quality access control device that combines a reader and keypad in one. This product offers secure and convenient access control solutions for various applications. Learn more about its features and benefits here.
Overview
Features
- Mifare Card Compatibility:
- The DS-K1104MK is engineered to work seamlessly with Mifare smart cards. Mifare technology is renowned for its secure and contactless access control, making it a reliable choice for various applications.
- Integrated Keypad for PIN Entry:
- Enhance security with the integrated keypad that allows users to enter a Personal Identification Number (PIN) in addition to presenting their Mifare cards. This dual authentication method provides an extra layer of protection against unauthorized access.
- Dual Authentication Capability:
- The device supports dual authentication, requiring both a Mifare card and a corresponding PIN for access. This two-factor authentication significantly enhances security by ensuring that only authorized users with both credentials can enter secured areas.
- Secure Access Control:
- With the DS-K1104MK, you can implement robust access control measures, allowing only individuals with valid Mifare cards and PINs to gain entry to specific areas. This is crucial for maintaining the integrity and security of sensitive premises.
- Anti-Passback Functionality:
- Benefit from anti-passback functionality, which prevents users from passing their cards back to others for unauthorized access. This feature adds an extra level of control and ensures that each user’s access is traceable and authorized.
- Tamper Detection and Alarm:
- The DS-K1104MK is equipped with tamper detection features that trigger alarms in the event of unauthorized interference or tampering. This proactive security measure allows for prompt responses to potential security breaches.
Hikvision DS-K1104MK Specs
Processor | 32-bit |
Reading Frequency | 13.56 mhz |
Reading Range | ≤1.97″ / ≤50 mm |
ID | Settings: DIP Switch |
Keypad | Keypad with 12 keys (0–9, *, #) |
LED Indicators | Power indicator, status indicator |
IP Rating | IP65 |
IK Rating | IK10 |
Tamper Alarm | Supported |
Auditory Alert | Beeper |
Operating Temperature | -4 to 149°F / -20 to 65°C |
Operating Humidity | 10 to 90%, non-condensing |
Power Supply | 12 VDC |
Working Current | ≤500 mA |
Power Consumption | ≤2 W |
Installation Type | 86 and 120 gang box |
Certifications | FCC, CE, UL |
Dimensions | 4.65 x 2.99 x 0.91″ / 118 x 76 x 23 mm |
Weight | ≤18.34 oz / ≤0.52 kg |
