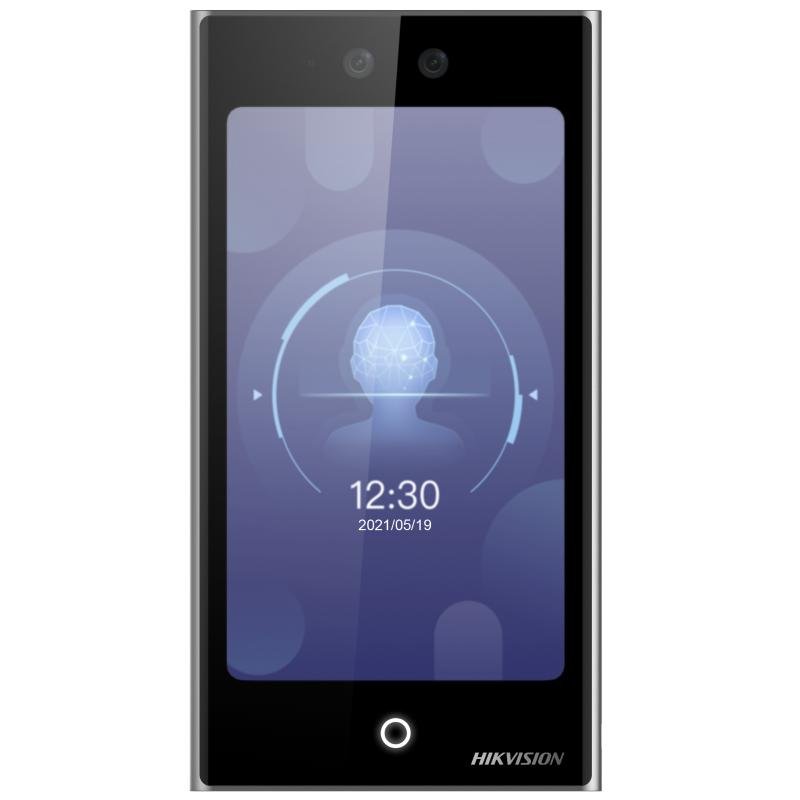

Hikvision DS-K1T673DWX Face Recognition Terminal
The Hikvision DS-K1T673DWX is a high-performance facial recognition terminal designed for secure access control and time attendance management. This terminal represents top-tier performance in Hikvision’s access control lineup, particularly suited for organizations prioritizing hygienic, touchless access with advanced features.
Features
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration < 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specification |
|
Display |
|
Screen size |
7 inch |
Operation method |
Capacitive touch screen |
Type |
IPS |
Lens |
2 |
Resolution |
2 MP |
FOV |
HFOV = 75.5°; VFOV = 41.5°; DFOV = 87° |
Audio |
|
Audio quality |
Built-in omnidirectional microphone |
Network |
|
Wired network |
Support |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface |
|
Network interface |
1 RJ-45, 10/100/1000 M self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
Alarm input |
2 |
Alarm output |
1 |
TAMPER |
1 |
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
Wiegand |
1 Wiegand(Hik 26bit,Hik 34bit) |
USB |
1 (For Module) |
Audio output interface |
1 (3.5 mm) |
Authentication |
|
Card type |
M1 card, DESfire card, Felica card |
General |
|
Power supply |
12 VDC to 24 VDC, 2 A |
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity |
0 to 90% (no condensing) |
Dimensions |
110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″) |
Weight |
Gross Weight:1.06 kg (2.34 lb) Net Weight:0.57 kg (1.26 lb) |
Language |
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish |
Function |
|
Face anti-spoofing |
Support |
