Hikvision DS-K2604T 4 doors Network Access Controller

Original price was: KSh 42,000.00.Current price is: KSh 41,000.00. excl. VAT

Supports various card types: normal/patrol/duress/super card, etc.
Various indicators to show different status
Supports automatically and manually time synchronization
Supports record storage function when the device is offline and insufficient storage space storage alarm function
Backup battery design, watchdog design and tamper-proof function
Data can be permanently saved after the access controller is powered off
Supports I/O linkage and event linkage
500 groups of password under the authentication mode of card or password
Supports time zone settings

SKU: HB41297 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

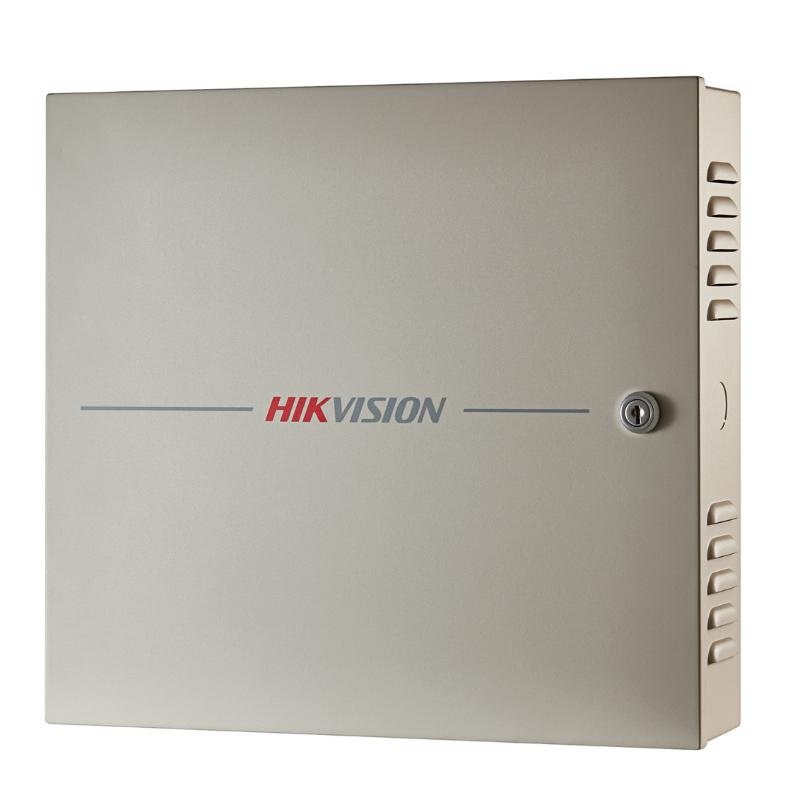

Hikvision DS-K2604T 4 doors Network Access Controller

The Hikvision DS-K2604T is a 4-door TCP/IP network access controller designed for medium to large-scale access control systems. It supports up to 4 doors and integrates seamlessly with Hikvision’s security ecosystem, including iVMS-4200/ACMS management software.

Features

32-bit high-speed processor
Supports TCP/IP communication, EHome 0, and ISAPI protocol. The communication data is specially encrypted to relieve the concern of privacy leak
User-centered Supports adding various user types: normal user, visitor, and user in blocklist
Supports recognition and storage of card with maximum length of 20
Supports up to 100,000 cards (including 97,000 non visitor cards and 3,000 visitor cards) and 300,000 card presenting records
Supports multi-door interlock function, anti-passback function, multiple authentications function, open door with first card function, super card and super password function, M1 card encryption, online upgrade function and remote control of the doors
Supports tampering alarm for the card reader, alarm for door not secured, force opening door alarm, alarm for door opening timeout, duress card and code alarm, blocklist alarm and alarm for illegal card swiping attempts reaching the limit
Short circuit attempts alarm and open circuit attempts alarm
IP address conflict detection
Cross-controller anti-passback function (For cross-controller anti-passback based on card, wire the card reader with RS- 485 For cross-controller anti-passback based on network, make sure the server and device communicate with each other properly. Up to 5000 users’ records can be stored in the selected server.) and inner-device anti-passback function

Supports RS-485, OSDP, and Wiegand protocol for accessing card Wiegand interface supports W26, W34 and is compatible with the third-party card reader with Wiegand interface

Specification

Model	DS-K2601T	DS-K2602T	DS-K2604T
Power supplyPower consumption (with Load) Power consumption (Without Load) Processor Storage Communication Capacity LED Indicator Built-in Clock Accessible Card Reader Input interface Output interface Working temperature Working humidity Dimensions (L × W × H) Approval	100 ~240 VAC
	≤ 50 W	≤ 100 W	≤ 100 W
	≤ 4 W
	32-bit
	32 M
	TCP/IP, RS-485, Wiegand (W26/W34)
	100,000 cards300,000 events
	Power supply status, communication status, and work status
	Support
	2 card readers (RS-485 interface), and 2 cardreaders (Wiegand interface)	4 card readers (RS-485 interface), and 4 cardreaders (Wiegand interface)	8 card readers (RS-485 interface), and 4 cardreaders (Wiegand interface)
	Alarm input × 4, door contact × 1, exit button × 1, case input × 2, tamper alarm× 1	Alarm input × 4, door contact × 2, exit button × 2, case input × 4, tamper alarm× 1	Alarm input × 4, door contact × 4, exit button × 4, case input × 8, tamper alarm× 1
	Lock relay × 1, alarm relay ×2	Door relay × 2, alarm relay ×4	Lock relay × 4, alarm relay ×4
	-20 °C to +65 °C (-4 °F to +149 °F)
	10% to 90% (Non-condensing)
	373 mm × 345 mm × 98 mm (14.7″ × 13.6″ × 3.6″)
	CE, FCC, CB
