Hikvision DS-K3B411BX-Dp65/2 door wings for swing barrier

Original price was: KSh 146,000.00.Current price is: KSh 144,000.00. excl. VAT

6 pairs of IR light detectors: Permissions validation and anti-tailgating
LED light indicates passing direction
The barrier will stop working for a period of time when detecting obstruction when open/close barrier
Self-detection, Self-diagnostics, and automatic alarm
System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
Barrier will automatically open when powering down

SKU: HB41180 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

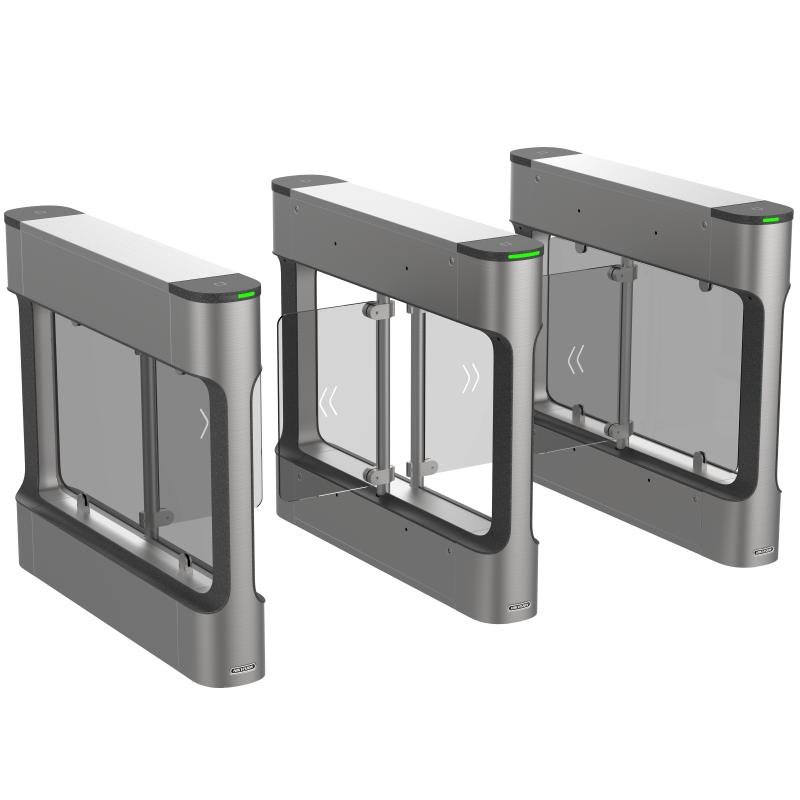

Hikvision DS-K3B411BX-Dp65/2 door wings for swing barrier

The Hikvision DS-K3B411BX-Dp65/2 is a pair of door wings designed for swing barriers, providing secure and controlled pedestrian access in high-traffic areas. These wings are part of Hikvision’s speed gate/swing barrier series, ideal for offices, metro stations, and secured facilities.

Specification
System
MCBF	＞3 million times
Motor	Brushless motor
Interface
Network interface	1
RS-485	4
RS-232	2
Exit button	2
Lock control	2
Alarm input	1
Alarm output	2
Capacity
Card capacity	500,000
Event capacity	500,000
General
Throughput	20 to 60 persons per minuteThe actual throughput is affected by the person passing rate and passing method.
Power supply method	100 to 240 VAC; 50 to 60 Hz
IR light detectors	6 pairs
Lane width	550 mm to 1100 mm
Working temperature	-20 °C to 65 °C (-4 °F to 149 °F)
Built-in access controller	Yes
Working humidity	10% to 95% (no condensing)
Barrier material	Stainless steel pipe; acrylic glass
Dimensions	Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9″ × 40.2″)With packaging: 1408 mm × 348 mm × 1156 mm (55.4″ × 13.7″ × 45.5″)
Pedestal material	SUS304 stainless steel
Application environment	Indoor and outdoor
Protective level	IPX4 (proved by Hikvision laboratory)
Weight	Net (approximately): 38.3 kg (left), 43.3 kg (middle), 40.2 kg (right)/84.5 lb (left), 95.5 lb (middle), 88.6 lb (right)Rough (approximately): 66.5 kg (left), 71.5 kg (middle), 68.4 kg (right)/146.6 lb (left), 157.7 lb (middle), 150.8 lb (right)
Approval	CE/CB/RoHS/REACH/WEEE
Power consumption	65 W (stand by)

Maintenance

The main element of the turnstile is stainless steel, which is rustless (antioxidant) and corrosion resistant (The anti corrosion ability in the medium of acid, alkali, and salt). To prevent the stainless steel from oxidizing or corroding, clean and maintain the turnstile surface regularly.
The instructions and tips for maintaining the turnstile are as follows:

Select different stainless steel types according to the variety of the environments. You can select 304 stainless steel for common circumstances and 316 stainless steel for the scenarios of sea sides and chemical plants.
Keep the device surface clean and dry.
Use non-woven cloth and ethyl alcohol to clean the dirt on the device surface.
Use sourcing pad (do not use mesh cleaning ball) to clean the rust on the device surface by following the wire drawing on the stainless steel. And then use non-woven cloth and stainless steel cleaner to wipe the device surface.
Clean and maintain the device by using non-woven cloth and stainless steel cleaner periodically. It is suggest to clean the
device every month in common circumstances and every week for severe environments (seaside and chemical plants for instance).
