Hikvision DS-K3H4411-120 Pro Full Height Turnstile

Original price was: KSh 183,000.00.Current price is: KSh 181,000.00. excl. VAT

LED indicates the passing direction(forbidden or available).
When the power is cut off, the system will automatically unlock the brake levers into a free-passing mode to facilitate the evacuation of people.
Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration.
There is a DIP switch on the control panel, which adjusts the passage delay time.
Support bi-directional passing through.

SKU: HB41091 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

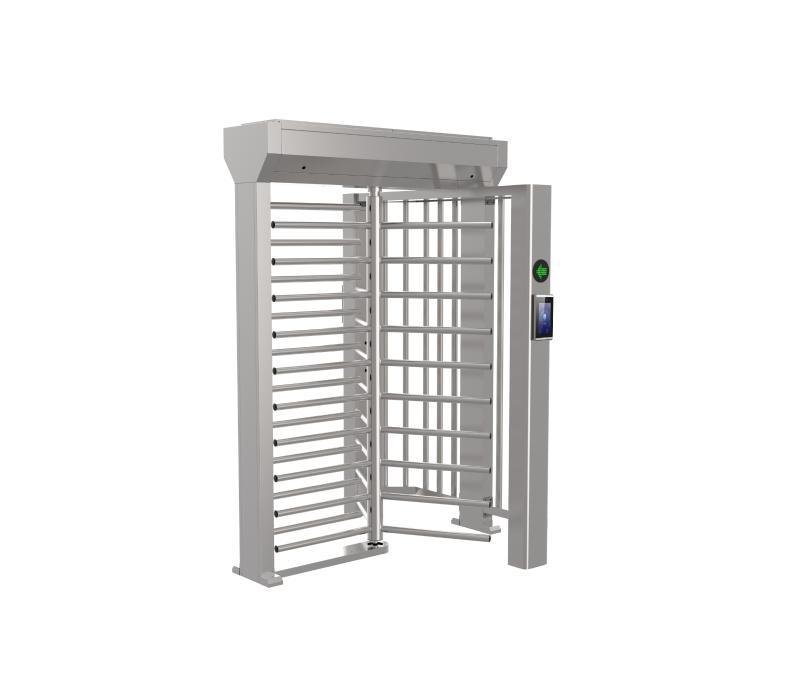

Hikvision DS-K3H4411-120 Pro Full Height Turnstile

The Hikvision DS-K3H4411-120 Pro Full Height Turnstile is a high-security revolving gate solution designed for critical infrastructure and high-risk areas requiring maximum access control.

Specification

System
MCBF	More than 3 million times
Motor	NA
General
Throughput	More than 30 persons per minuteThe actual throughput is affected by the person passing rate and passing method.
Lane width	650 mm
Pedestal material	SUS304 stainless steel 1.5 mm (0.06”)Stainless steel pipe 1.2 mm (0.05”)
Power supply	100 to 240 VAC; 50 to 60 Hz
Working temperature	-15℃ to 55℃ (5℉ to 131℉)
Working humidity	10% to 90% (No Condensing)
Dimensions	Without package: 1630 mm × 1580 mm × 2300 mm (64.2” × 62.2” × 90.6”)With package: 2100 mm × 1290 mm × 1240 mm (82.7” × 50.8” × 48.9”)
Application environment	Indoor and outdoor
Weight	Without package: 220 kg (485 lbs)With package: 320 kg (705 lbs)

Maintenance

The main element of the turnstile is stainless steel, which is rustless (antioxidant) and corrosion resistant (The anti corrosion ability in the medium of acid, alkali, and salt). In order to keep the stainless steel from being oxidized or corroded, you should clean and care the turnstile surface periodically.

The instructions and tips for maintaining the turnstile are as follows:

Select different stainless steel types according to the variety of the environments. You can select 304 stainless steel for common circumstances and 316 stainless steel for the scenarios of seasides and chemical plants.
Keep the device surface clean and dry
Use non-woven cloth and ethyl alcohol to clean the dirt on the device surface
Use sourcing pad (do not use mesh cleaning ball) to clean the rust on the device surface by following the wire drawing on the stainless steel. And then use non-woven cloth and stainless steel cleaner to wipe the device surface
Clean and maintain the device by using non-woven cloth and stainless steel cleaner periodically. It is suggest to clean the device every month in common circumstances and every week for severe environments (seaside and chemical plants for instance).
