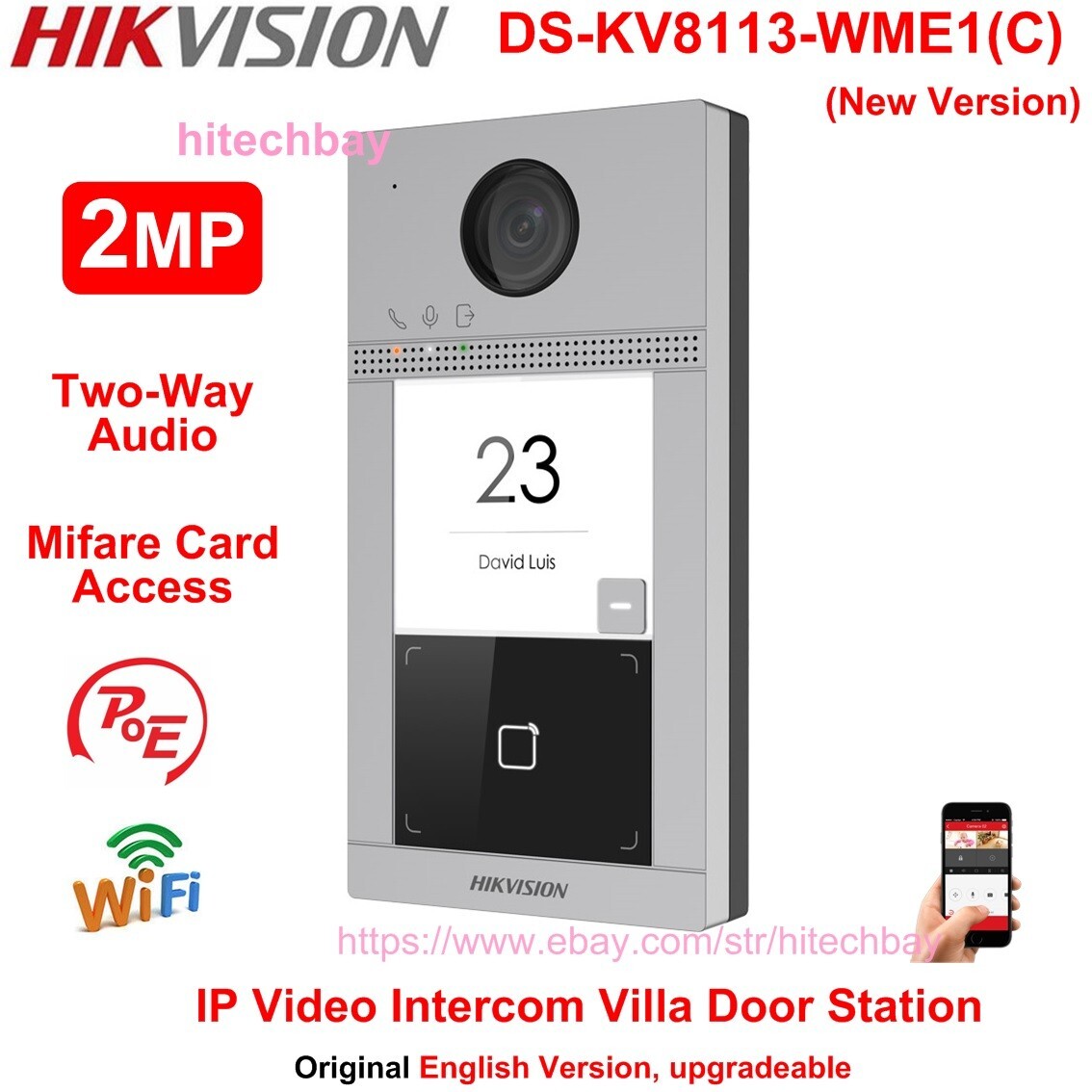

Hikvision DS-KV8113-WME1 Ultra Video Intercom Villa Door Station description

Upgrade the security and communication at your residence with the Hikvision DS-KV8113-WME1 Ultra Video Intercom Villa Door Station. This advanced door station is part of Hikvision’s innovative intercom system, designed to provide a seamless and secure solution for villa environments. Let’s explore the key features that make the DS-KV8113-WME1 a reliable and sophisticated choice for enhancing your home’s entry point:

1. High-Definition Video Intercom: The DS-KV8113-WME1 boasts high-definition video capabilities, providing crystal-clear images for visual verification of visitors at your doorstep. The high-quality video stream enhances security by offering a detailed view of individuals approaching your villa.
2. Wide-Angle Camera Lens: Equipped with a wide-angle camera lens, this door station captures a broader field of view, minimizing blind spots and ensuring comprehensive surveillance of the entry area. The wide coverage contributes to enhanced security and situational awareness.

• System Parameters

• Operating SystemEmbedded Linux operation system
• ROM32 M
• RAM256 M
• CPUEmbedded MCU Processor

• Display Parameters

• Screen Size/
• Operation Method/
• Type/
• Resolution/

• Video Parameters

• Lens1
• Resolution

  Main stream : 1920 × 1080

  Sub stream : 720 × 480

• FOVHorizontal: 129° Vertical: 75°
• WDRSupport
• Supplement LightIR supplement
• Video Compression StandardH.264

• Audio Parameters

• Audio Compression StandardG.711 U
• Audio Input Built-in omnidirectional microphone
• Has Audio Output Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate64 Kbps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment Adjustable

• Capacity
• User Capacity/
• Face Capacity/
• Card Capacity/
• Linked Indoor Station Capacity1

• Network Parameters

• Communication ProtocolTCP/IP, RTSP
• Wired Network10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard/
• Bluetooth Version/
• 3G/4G Standard/

• Device Interfaces

• Alarm Input4
• Network Interface1
• TAMPER1
• Exit Button2
• RS-4851
• USB0
• Wiegand0
• TF Card0
• Alarm Output0
• Lock Control2
• Door Contact Input2
• Power Interface1

• Performances

• Multi-Factor Authentication2000

• General

• Brand: Hikvision
• Button1
• InstallationSurface mounting
• Indicator3
• 385 g
• Protective LevelIP65, IK08
• Working Temperature-40° C to +55° C(-40° F to 131° F)
• Working Humidity10% to 95%
• Dimensions174 mm × 91 mm × 29 mm
• Battery/
• Application EnvironmentOutdoor
• Power Consumption＜ 10 W
• Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
•
