Hikvision DS-PA0103-A IP Horn speaker

Original price was: KSh 78,000.00.Current price is: KSh 77,000.00. excl. VAT

Network broadcast: playing audio file or real-time audio stream
SD card broadcast: playing audio files from SD card
One-way audio: remote computer can talk to the horn speaker
On-the spot sound collection: remote computer can collect the real-time sound around the horn speaker

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41042 Category: Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

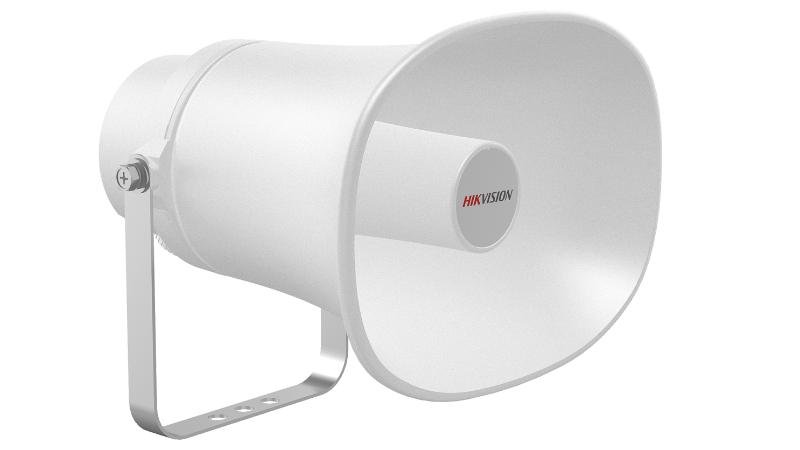

Hikvision DS-PA0103-A IP Horn speaker

The Hikvision DS‑PA0103‑A is a PoE-powered IP horn speaker designed for outdoor public address and surveillance integration. It supports both real-time audio streaming and pre‑recorded message playback via SD card.

Product Features:

Type: IP horn speaker
Interface: 1 x 10/100Mbps RJ-45 network interface
Network broadcast: playing audio file or real-time audio stream
Storage: Micro-SD (up to 32GB)
I/O : Mic Input; speaker output
Power: 802.3af 48VDC standard PoE or 12VDC
SD card broadcast: playing audio files from SD card
Built-in microphone for sound collection
Material: Aluminium alloy
Dimension: with bracket – 242mm x 182mm x 338.5mm; without bracket – 242mm x 182mm x 250mm

Specification
Parameters
Max sound pressure level	120 db
Network Interface	10/100Base-TX self-adaptive network, RJ45 interface
Network Protocol	TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
Audio Protocol	MP3, G.711a/u, G.722
Storage	Micro SD Card, up to 32 GB*need SD card to play pre-recorded audio
MIC Input	0.2 Vrms
Speaker Output	8 Vrms
Power Input	PoE (IEEE 802.3af), maximum 13 W
Approvals	EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,
Color	White
Weight	Approx. 1.5 kg (3.31 lb.)
Material	Casing: aluminum alloyRear cover: stainless steel
Dimension	With bracket: 242 mm × 182 mm × 338.5 mm (9.53″ × 7.17″ × 13.33″)Without bracket: 242 mm × 182 mm × 250 mm (9.53″ × 7.17″ × 9.84″)
Power consumption	< 1 W (without sound), maximum 13 W (producing sound)
Protection level	IP67
Operating Temperature	-40°C to 60°C (-40°F to 140°F)
Frequency Response	300 Hz~12.5 kHz
Coverage Pattern	70° horizontal by 100° vertical
Amplifier Description	Built-in 15 W Class-D amplifier
