Hikvision DS-PDD15AM-EG2 Wired Dual-Tech AM Detector

Original price was: KSh 7,000.00.Current price is: KSh 6,000.00. excl. VAT

Detection Range: 15m / 85.9°
Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
Automatic sensitivity and 24Ghz smart microwave
Digital temperature compensation and IFT technology

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41050 Categories: Alarm Systems, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

Hikvision DS-PDD15AM-EG2 Wired Dual-Tech AM Detector

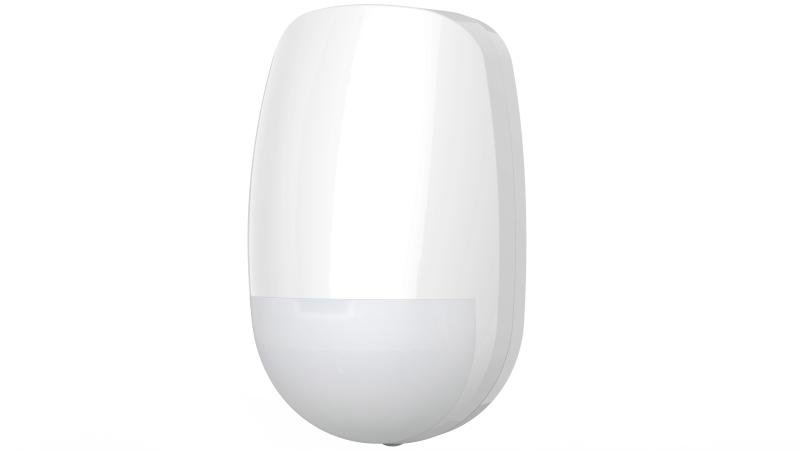

The Hikvision DS‑PDD15AM‑EG2 is a wired dual-technology intrusion detector combining PIR (passive infrared) and 24 GHz microwave sensors. DS-PDD15AM-EG2 is dual-tech detectors with Anti-masking feature. Non-interfering technology allowing back to back installation and no penetration through the wall. It allows the detector to be installed and setup quicker than traditional DT’s giving time and cost saving advantages to the installer.

Specification
Detection Performance
Detection Method	Passive Infrared,Microwave
Detection Range	15m
Detection Angle	85.9°
Detection Zones	52
Detectable Speed	0.3～2m/s
Sensitivity	Auto,Low
White Light Filter	6500lux
Microwave Frequency	24GHz(24.15～24.25GHz)
Digital TemperatureCompensation	Support
Creep Zone Protection	Support
Feature
Digital Processing	Support
Sealed Optics	Support
Tamper Protection	Front
Anti-masking	Support
Anti-cloaking	Support
Anti-blocking	Support
Interface
Alarm Output	Normally Closed
LED Indicator	Green(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission Method	Wired
Electrical Characteristics
Power Supply	9 to 16 VDC
Typical Voltage	12 VDC
Power Consumption	Maximum current：25mA@12VDC Quiescent current： 17mA@12VDC
General
Operation Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity	10% to 90%
Dimension(WxHxD)	65.7 mm (2.59 “) × 103.8 mm (4.09 “) × 45.5 mm (1. 79 “)
Weight	100g
Mounting Height	1.8 m to 2.4 m
Mounting Method	Wall
Application Scenario	Indoor
Bracket	Optional wall & ceiling accessory

The Hikvision DS‑PDD15AM‑EG2 combines PIR and microwave detection into a robust security sensor equipped with anti-blocking defenses, temperature compensation, and smart filtering. It’s ideal for professional indoor security systems requiring dependable, low-false alarm performance.
