Hikvision DS-PHA48-EP AX HYBRID PRO Control Panel

Original price was: KSh 21,000.00.Current price is: KSh 20,000.00. excl. VAT

Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs), and 44 wired/wireless outputs expandable
Dual path communication of alarm events and other signals over LAN, PSTN, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
2-ch onboard IP camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
Pushes alarm notification via messages and Hik-Connect
Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
Supports 1 Speed-X BUS

SKU: HB41113 Categories: Burglar Alarm, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

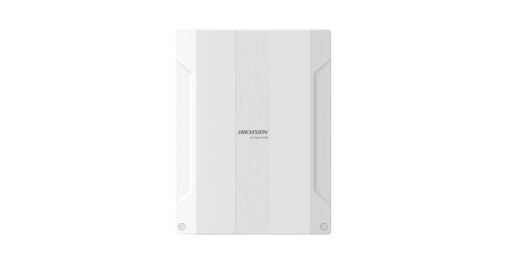

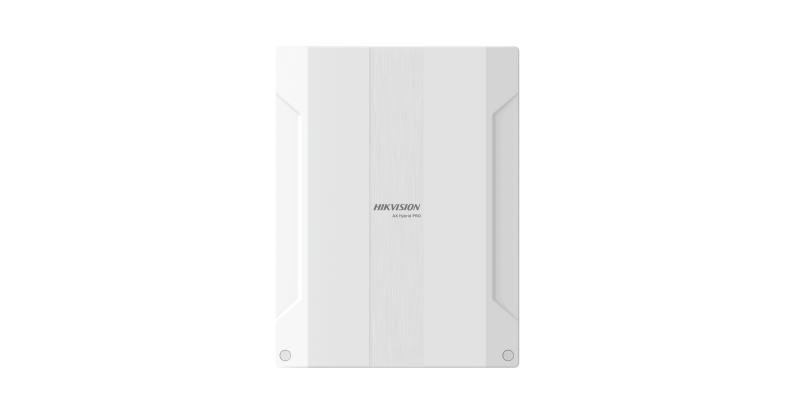

Hikvision DS-PHA48-EP AX HYBRID PRO Control Panel

The Hikvision DS-PHA48-EP AX HYBRID PRO is a hybrid alarm control panel designed for intrusion detection and security management in residential or commercial environments.

Specification
Software features
Zones	48(8 on-board zones, max 4 wired PIRCAM)
Area	16
User	Installer: 1Administrator: 1 Operator: 46
SMS notification	Supports (with GPRS/3G/4G module)
Onboard video clips	2
ARC protocol	ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocolDC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0
Programming tools	Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect
Firmware upgrade	Web/iVMS-4200/Hik-ProConnect
End of Line Resistance	Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K
Hardware features
Alarm input	48 (8 on-board zones)
Alarm output	48(Including 2 on-board relay outputs and 2 I/O outputs)
Power Output	1. Bell: maximum 12V 1.2A2. AUX: maximum 12V 1.5A 3. Bell and AUX maximum 12V 2.1A
3/4G on board	Optional
GPRS on board	Optional
Bus	1 Speed-X bus
Sounder output	1 wired on-board sounder output
Tamper-Proof	1 switch to detect removal from mounting1 switch to detect front cover open
Netowrk interface	1 RJ45 10M/100M Ethernet interface
Electrical characteristics
Power interface	100 to 240 VAC (On-board power transformer)
Power Consumption	1. 220V power supply(1) With an alarm: 1.875A, 30W (2) Without an alarm: 200mA, 3.2W 2. 13.5V battery supply (1) With an alarm: 1.5A, 22W (2) Without an alarm: 150mA, 2W
Battery type	Lead acid battery (12 V, 7 Ah, battery is not included by default)
Battery life span	Up to 36hrs

Display
Indicator	4 on-board LEDs1. 1 AC power LED indicator (Green) 2. 1 system status LED indicator (Green/Red) 3. 1 PSTN status LED indicator (Green/Red) 4. 1 mobile communication status LED indicator (Green/Red)
General
Operation temperature	-10°C to 40°C
Operation humidity	10% to 90%
Shell material	Plastic
Color	White
Dimension(WxHxD)	261 mm × 199 mm × 86.4 mm
Weight	996.5 g
Device management
Tag	48
Keyfob	48
Keypad	4
Wireless sounder	8
