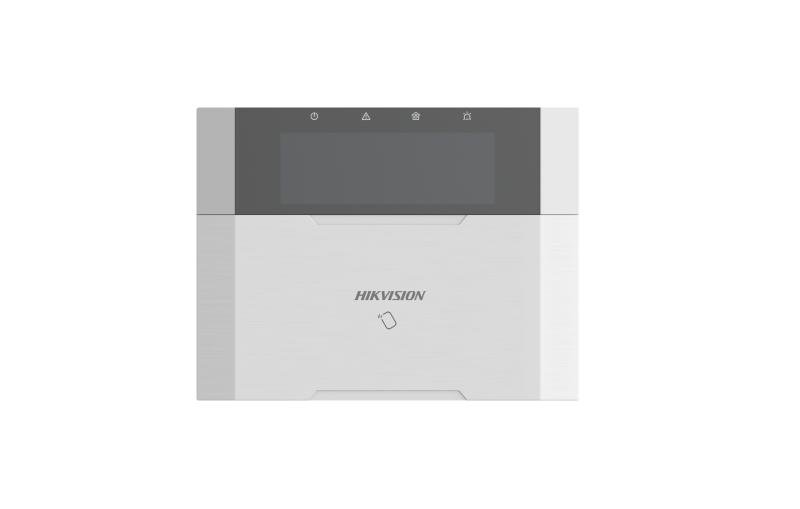

Hikvision DS-PK1-LRT-HWB Wired LCD Keypad
- LCD screen display
- Supports one-touch arm（Arming without password）
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display
- Supports 2 on-board alarm inputs and 1 on-board alarm output
- Supports maximum 64 keyfobs
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Hikvision DS-PK1-LRT-HWB Wired LCD Keypad
The Hikvision DS-PK1-LRT-HWB is a professional wired LCD keypad designed for access control systems, featuring advanced functionality and robust construction.
Key Features
- Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable
- Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notification via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
Specification
| Hardware features | DS-PK1-LRT-HWEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â DS-PK1-LRT-HWB | |
| Tag reader built in | 1 built in tag reader | |
| Serial port | 1 TTL serial port | |
| Tamper-Proof | 1 back cover tamper switch (Will be damaged when tamper triggered) | |
| Buzzer | 1 on-board buzzer | |
| Function key | 8 Function keys: Query, away arm, stay arm, disarm, alarm output, project, left, right | |
| RS-485 | 1 RS-485 | |
| Alarm input | 2 on-board alarm inputs | |
| Alarm output | 1 on-board alarm output | |
| Electrical characteristics | ||
| Power supply | DC 12 V | |
| Power consumption | Quiescent consumption: 0.984W @12 VDCpower supply with 82mA current | Quiescent consumption: 0.972W @12 VDCpower supply with 81mA current |
| Max consumption: 1.32W @12VDC powersupply with 110mA current | Max consumption: 1.33W @12VDC powersupply with 111mA current | |
| Wireless transmission | ||
| RF frequency | 868 MHz | 433 MHz |
| Display | ||
| Numeric key | 0 to 9 , *, # | |
| Display screen | LCD screen | |
|
Indicator |
4 indicators and 1 backlight:(1)Â Â Power: Green
(2)Â Â Faults: Fault-Orange / Alert-Flashing orange / Find me mode-flashing green (3)Â Â Armed: Blue (4)Â Â Alarm: Red (5)Â Â Keypad button backlight: White |
|
| General | ||
| Dimension(WĂ—HĂ—D) | 150 mm Ă— 115 mm Ă— 28 mm | |
| Color | White | |
| Operation temperature | – 10 °C to 55 °C (14 °F to 131 °F) | |
| Operation humidity | 10% to 90% | |
| Device management | ||
| Keyfob | 64 | |
