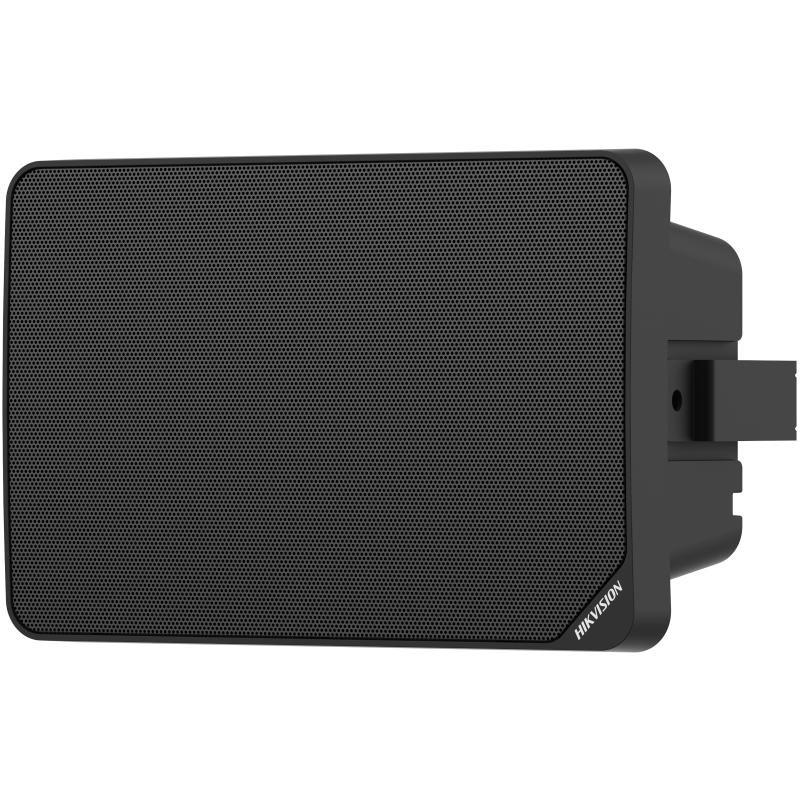

HIKVISION DS-QAE0120G1R NEW Analog Cabinet Speaker 20W
The Hikvision DS-QAE0120G1R is a 20W analog cabinet speaker designed for high-output public address (PA) and background music systems in medium to large spaces.
This speaker is ideal for public address systems in a variety of environments, including commercial spaces, schools, outdoor venues, and industrial facilities. Its selectable power settings and omnidirectional audio ensure flexible, wide coverage with robust output. The adjustable mounting bracket makes installation adaptable to diverse setups, horizontal or vertical, wall or ceiling.
Specification |
|
Speaker | |
Rated Power | 70 V: 5 W/10 W/15 W/20 W100 V: 5 W/10 W/15 W/20 W |
Impedance | 8 Ω |
Sensitivity(1 m, 1 W) | 90 dB ± 3dB |
Max. Acoustic Pressure | 103 dBSPL |
Direction | All directions |
Frequency Response | 130 Hz to 17.5 kHz |
Speaker Unit | 5.25′′ × 1 |
Interface | |
Audio In | Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω × 1 |
General | |
Material | Main body&Front cover:plastic, bracket: metal |
Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Operating Humidity | <90% (No condensation) |
Dimension | 268.4 mm × 180.4 mm × 125.12 mm (10.57″ × 7.1″ × 4.93″) |
Package Dimension | 340 mm × 306 mm × 180 mm (13.39″ × 12.05″ × 7.09″) |
Weight | Approx. 1.5 kg (3.3 lb.) |
Color | White |
With Package Weight | Approx. 2 kg (4.4 lb.) |
Packing List |
Device × 1U-shaped bracket × 1 Screw pack × 1 Installation sticker × 1
Regulatory Compliance and Safety Information × 1 |
