Hikvision DS-QAE0A60G1 Analog Amplifier 60W

Original price was: KSh 15,000.00.Current price is: KSh 14,000.00. excl. VAT

Support four types of audio input: Bluetooth, USB flash drive, microphone, and RCA, with flexible and convenient operation
Built-in Bluetooth module, support fast Bluetooth playback
Support plugging in the USB flash drive to play audio sources
Support independent microphone volume control and two-channel partition volume control
Support two-channel audio mixing output
Adopt high-strength engineering plastics, sturdy and durable
Integrated functional design, convenient and reliable

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41560 Category: Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

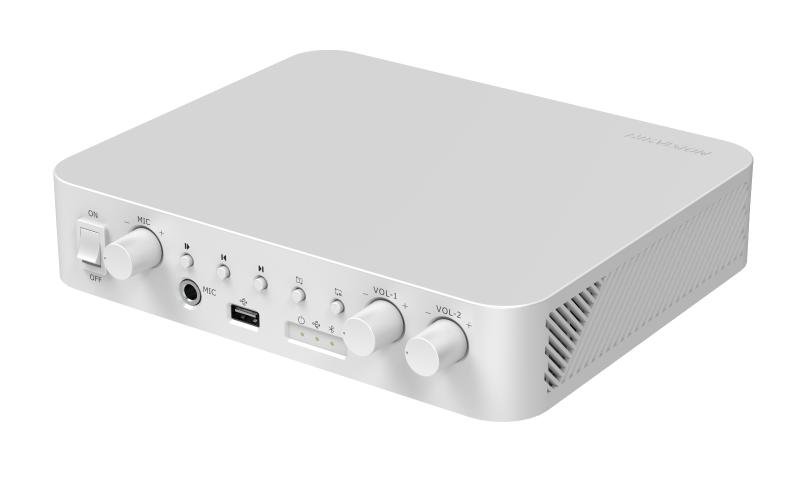

Hikvision DS-QAE0A60G1 Analog Amplifier 60W

The Hikvision DS-QAE0A60G1 is a 60W analog amplifier designed for public address (PA) and background music systems, supporting both 70V/100V line and 4-16Ω low-impedance speaker configurations.

Specification
Function
Protection Function	short circuit protection, overcurrent protection, over temperature protection,anti-static electricity protection, surge protection, electrical shock protection
Audio
Rated Power	60 W24 VDC
Frequency Response	USB, Bluetooth: 20 Hz to 20 kHzMIC, RCA Input: 20 Hz to 8 kHz
THD and SNR	THD: ≤1%SNR: ≥100 dB
Interface
Audio In	MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jackUSB 2.0 × 1 RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack Bluetooth
Audio Out	Constant Voltage Output × 2，100 V COMConstant Resistance Output × 2，30 W 4 Ω to 8 Ω RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack RCA Cascading: support a cascade of up to 3 amplifiers Bluetooth
LED Indicator	Power indicator (solid white): the device is normally working USB flash drive indicator (solid white): the device is in USB mode Bluetooth indicator (solid blue): the device is in Bluetooth modeUSB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed
Volume Knob	MIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
USB	USB 2.0File format: FAT32 USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.
Power Interface	Aperture size: Ø2.0 mm
General
Material	Plastic
Dimension	190.8 mm × 230.8 mm × 51.2 mm (7.48″ × 9.06″ × 2.01″)
Package Dimension	362 mm × 280 mm × 100 mm (14.25″ × 11.02″ × 3.94″)
Weight	Approx. 1445.5 g (3.19 lb.)
With Package Weight	Approx. 2113.3 g (4.66 lb.)
Color	White
Packing List	Device × 1Power Adapter × 1 Power Cord × 1 Regulatory Compliance and Safety Information × 1
Bluetooth	Bluetooth 5.3，10 m
Operating Temperature	-10 °C to 55 °C(14 °F to 131 °F)

Operating Humidity	＜90% (No condensation)
Power Consumption	Standby Consumption: 1 WAnnual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
