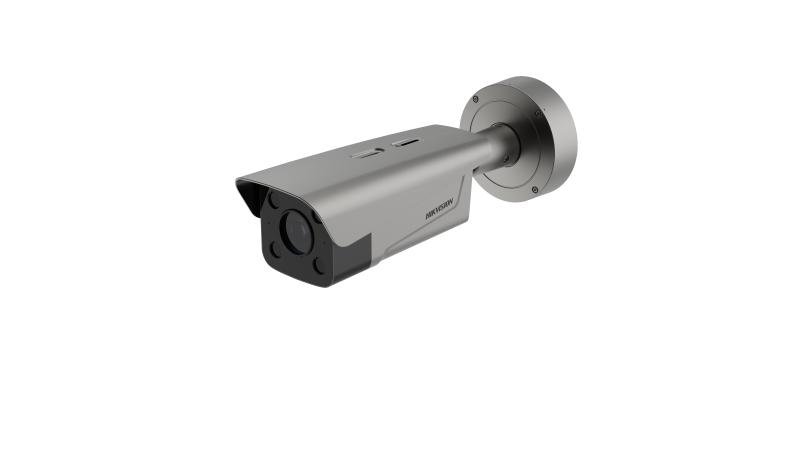

Hikvision DS-TCG406-E(12V/Poe)(2812) 4 MP Access ANPR Camera
The Hikvision DS-TCG406-E is a 4MP (2688 × 1520) ANPR (Automatic Number Plate Recognition) camera designed for high-precision vehicle license plate capture and recognition.
Features
- 1/1.8″ progressive scan CMOS.
- Up to 2688 × 1520 resolution with real-time video.
- 4 built-in high-performance LEDs (integrated white light and IR).
- 2.8 to 12 mm/8 to 32 mm motorized vari-focal lens.
- Supports relay output to control vehicle barrier gate.
- Supports Wiegand, connectable with access control system.
- Supports loop triggering, radar triggering, and video triggering LPR.
- Supports multi-frame LPR, improving LPR rate.
- Supports dirty license plate recognition.
- Equipped with vehicles passing detection algorithm to realize auto switch of barrier gate normally open mode during continuous vehicles passing and improve passing efficiency.
- Supports vehicle type, vehicle color, and vehicle brand recognition.
- Integrated shield, lights, and TF card slot (up to 1 TB).
- Up to 100,000 blocklist and allowlist.
- Supports offline control of barrier gate under allowlist mode.
- Supports a variety of installation methods: pole mounting, wall mounting, pendant mounting, and universal joint installation. Equipped with concealed wire box.
- Adopts entrance and exit dedicated exposure algorithm to adapt to the front/back light and inconsistent front and rear license plates scenes to improve LPR accuracy.
Specification
Camera | |
Max. Resolution | 2688 × 1520 |
Sensor Type | 1/1.8″ Progressive Scan CMOS |
Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON)0 Lux with IR |
Shutter | 1/30 s to 1/100,000 s |
Day/Night Switch | Supported |
IR Cut Filter | IR cut filterBlue glass module to reduce ghost phenomenon |
Lens |
|
Lens Type | 2.8 to 12 mm8 to 32 mm |
Aperture | 2.8 to 12 mm: F1.2 to F2.58 to 32 mm: F1.7 to F1.73 |
Focal Length & FoV |
2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal
FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
Focus | Auto,Vari-focal lens, motor-driven lens |
Supplement Light |
|
Supplement Light Type | IR Light, Warm White Light |
Supplement Light Range |
Video:2.8 mm to 12 mm: 25 m
8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
IR Wavelength | Warm White Light 3000 K, IR Light 850 nm |
Image |
|
WDR | 140 dB |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
Image Settings |
Saturation: 0 to 100Brightness: 0 to 100
Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable. |
Image Parameters Switch | Yes |
WDR Switch | On, Time, Brightness |
Frame Rate | 25 fps (P)/30 fps (N) |
Video |
|
ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
Video Compression | Main stream: H.265/H.264/MJPEG,Sub-stream: H.265/H.264/MJPEG, |
H.264 Type | Low profile Medium profileHigh Profile |
Video Bit Rate | 32 Kbps to 16 Mbps |
Bit Rate Type | Constant, Variable |
Scalable Video Coding (SVC) | H.265 and H.264 encoding |
Capture Mode |
|
Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
Picture Type | Scene Picture, Scene Picture + Close-up Picture |
Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
Capture Type | Strobe Light Mode |
Capture Parameters |
|
Image Format | JPEG |
Capture Resolution | 2688 × 1520 |
License Plate Recognition | Forward, Backward, Bidirection |
LED Control | Supports automatic light control/time control of LEDs |
Smart Recognition | ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle ManufacturerRecognition |
Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
Entrance and Exit |
|
Barrier Gate Control Mode | By Camera/Platform/Mixed |
Keep Boom Pole Open forFollowing Vehicle | Enable/Disable |
Lock Barrier Gate for Large-SizedVehicle | Yes |
Relay Output | 2-ch relay output, supporting opening and closing of barrier gates |
Barrier Gate Status | None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open InPlace |
Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totallyNote: Only when the TF card is available, can the function take effect. |
Network |
|
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-endHikvision memory card, memory card encryption and health detection are supported. |
Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket |
API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP,Otap, Guarding Vision Platform |
Client | Hik-Connect, Hik-Central,SDKdemo,PMS |
Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings,Security Audit Log, TLS 1.2 |
Interface |
|
Audio | 1 input (line in), 1 output (line out) |
Alarm Input | 3-ch triggered inputs |
Alarm Output | 1-ch alarm output |
Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
RS-232 | 1-ch RS-485 serial port |
RS-485 | 1-ch RS-232 serial port |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Memory Card Slot | 1 TF card slot, up to 1 TB |
General |
|
Power Supply | 12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA |
Working Consumption | 10 W Max. |
Dimensions | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
Protection | IP67; IK10 |
Weight | 3.25 kg (7.17 lb.) |
Weight (with Package) | 4.3 kg (9.48 lb.) |
Package Size | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) |
Storage Conditions | Temperature: -20 °C to 70 °C (- 4°F to 158 °F)Humidity: 95% (non-condensing) |
Startup and OperatingConditions | Temperature: -30 °C to 70 °C (-22 °F to 158 °F)Humidity: 95% (non-condensing) |
Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Approval |
|
EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN50130-4: 2011 + A1: 2014);
KC (KN 32: 2015, KN 35: 2015) |
Security | CB (IEC 62368-1: 2014 + A11);CE-LVD (EN 62368-1: 2014/A11: 2017);
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
Smart Function |
|
LPR Accuracy |
Capture rate > 98%Vehicle moving direction recognition accuracy > 98.5% LPR accuracy > 98%
Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95% |
