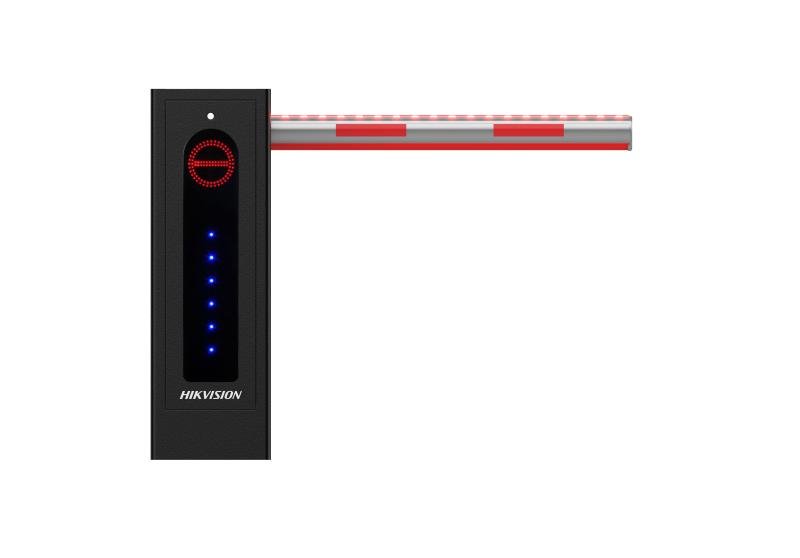

Hikvision DS-TMG300-DL/A/B(4m light) 30 Series Boom Barrier
Original price was: KSh 121,000.00.KSh 120,000.00Current price is: KSh 120,000.00. excl. VAT
- Supports convenient side installation with compact structure.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
- Delayed boom pole closing. Supports 1 to 99 seconds.
- Integrated with strip light and body indicator to show barrier gate status.
Hikvision DS-TMG300-DL/A/B(4m light) 30 Straight Pole Series Boom Barrier
The Hikvision DS-TMG300-DL/A/B (4m Light) is a 30 Series Boom Barrier designed for efficient vehicle access control in parking lots, toll stations, and secured premises.
Specification |
|
| Barrier Housing | |
| Barrier Housing Material | Cold-rolled sheet |
| Barrier Housing Thickness | 1.2 mm |
| Barrier Housing Door Thickness | 1.0 mm |
| Barrier Housing Color | Black background with sliver pattern |
| Barrier Housing Door Color | Black background with sliver pattern |
| Boom Pole Installation Height | 880 mm |
| Body Indicators | Red-green light |
Barrier Gate General |
|
| Rising/Falling Speed | 4m light pole ：Rising Speed: 3 to 6 s
Falling Speed: 3 to 6 s |
| Boom Pole Direction | Left/Right |
| Motor Type | DC brushless motor |
| Matched Boom Pole Type | Boom pole with strip light |
| Boom Pole Falling Delay | 1 to 99 s |
| Number of Cycles | 2,500,000 |
| Consumption | 100 W |
| Temperature and Humidity | Temperature: -30 °C to 80 °C (-22 °F to 176 °F),Humidity: ≤ 90% |
| Rising Boom Pole for Power off | Optional |
Package |
|
| Barrier Housing Dimensions (L ×W × H) | 325 × 220 × 1000 mm (12.8 × 8.67 × 39.37 inch) |
| Body Weight | 26 ± 0.2 kg (57.32 ± 0.44 lb.) |
| Body Dimensions (with Package,Without Boom Pole) (L × W × H) | 385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch) |
| Body Weight (with Package,Without Boom Pole) | 29.1 ± 0.2 kg (64.15 ± 0.4 lb.) |
Barrier Gate |
|
| Duty Cycle | 100% |
| Interface | |
| RS-485 | Optional |
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Traffic Signal Light | 1 group |
General |
|
| Power Supply | 110-240VAC ( default 220V，Switchable ) |
| Approval | |
| Protection | IP54 |
Boom Pole |
|
| Boom Pole Color | White background with red bar |
| Boom Pole Weight | 3 m boom pole with strip light：3.5 ± 0.2 kg4 m boom pole with strip light：4.5 ± 0.2 kg |
| Boom Pole Dimensions (with Package) | 3 m boom pole with strip light：3050 × 100 × 55 mm (L×H×W)4 m boom pole with strip light：4050 × 100 × 55 mm (L×H×W) |
| Boom Pole Weight (with Package) | 3 m boom pole with strip light：4.1 ± 0.2 kg4 m boom pole with strip light：5.3 ± 0.2 kg |
| Boom Pole Dimensions | X × 50 × 95 mm（W×L） |
| Boom Pole Material | 6063 |
