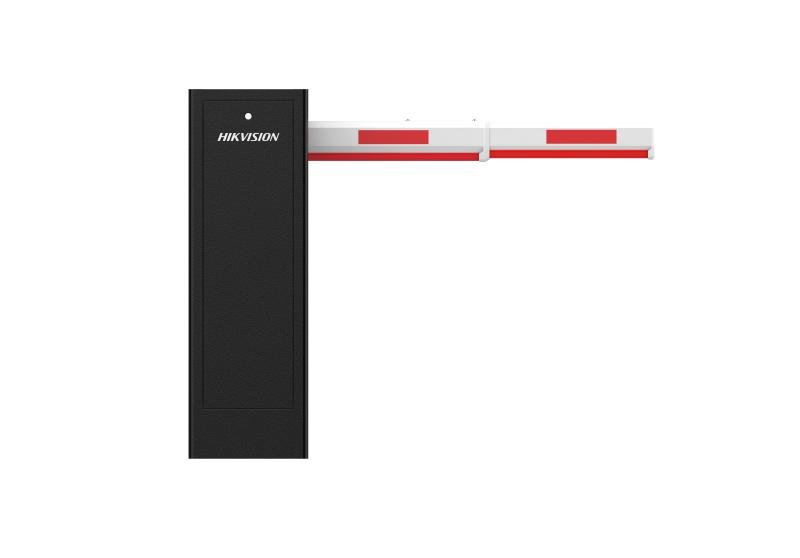

Hikvision DS-TMG300-DL(2.5-4.5m) 30 Series Boom Barrier
Original price was: KSh 82,000.00.KSh 80,000.00Current price is: KSh 80,000.00. excl. VAT
- Supports convenient side installation with compact structure.
- Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
- Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
- Delayed boom pole closing. Supports 1 to 99 seconds.
Hikvision DS-TMG300-DL(2.5-4.5m) 30 Series Boom Barrier
The Hikvision DS-TMG300-DL is a high-performance boom barrier designed for vehicle access control in parking lots, toll booths, and secured entry points. It features an adjustable 2.5–4.5-meter barrier arm and integrates seamlessly with Hikvision’s security ecosystem.
Specification |
|
| Barrier Housing | |
| Barrier Housing Material | Cold-rolled sheet |
| Barrier Housing Thickness | 1.2 mm |
| Barrier Housing Door Thickness | 1.0 mm |
| Barrier Housing Color | Black background with sliver pattern |
| Barrier Housing Door Color | Black background with sliver pattern |
| Boom Pole Installation Height | 880 mm |
| Body Indicators | None |
Barrier Gate General |
|
| Â Â
   Rising/Falling Speed |
3m :Rising Speed: 3 S Falling Speed: 3 S
2.5m-4.5m telescopic pole : Rising Speed: 3 S Falling Speed: 3 S 3.4m-6m telescopic pole : Rising Speed: 6 S Falling Speed: 6 S |
| Boom Pole Direction | Left/Right |
| Motor Type | DC brushless motor |
| Matched Boom Pole Type | Octagonal boom pole |
| Boom Pole Falling Delay | 1 to 99 s |
| Number of Cycles | 2,500,000 |
| Consumption | 100 W |
| Temperature and Humidity | Humidity: ≤ 90%,Temperature: -30 °C to 80 °C (-22 °F to 176 °F) |
| Rising Boom Pole for Poweroff | Optional |
Package |
|
| Barrier Housing Dimensions (L Ă—W Ă— H) | 325 Ă— 220 Ă— 1000 mm (12.8 Ă— 8.67 Ă— 39.37 inch) |
| Body Weight | 26 ± 0.2 kg (57.32 ± lb.) |
| Body Dimensions (with Package,Without Boom Pole) (L Ă— W Ă— H) | 385 Ă— 305 Ă— 1060 mm (15.16 Ă— 12 Ă— 41.73 inch) |
| Body Weight (with Package,Without Boom Pole) | 29.1 ± 0.2 kg (64.15 ± 0.44 lb.) |
| Barrier Gate | |
| Duty Cycle | 100% |
Interface |
|
| RS-485 | Optional |
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Traffic Signal Light | 1 group |
General |
|
| Power Supply | 110-240VAC ( default 220V，Switchable ) |
| Approval | |
| Protection | IP54 |
Boom Pole |
|
| Boom Pole Color | White background with red bar |
| Boom Pole Weight | 4.5 m telescopic boom pole: 4.8 ± 0.2 kg6 m telescopic boom pole: 6.5 ± 0.2 kg |
| Boom Pole Dimensions (withPackage) | 4.5 m telescopic boom pole: 115 Ă— 47 Ă— 2530 mm (HĂ—WĂ—L)6 m telescopic boom pole: 115 Ă— 47 Ă— 3435 mm (HĂ—WĂ—L) |
| Boom Pole Weight (withPackage) | 4.5 m telescopic boom pole: 5.4 ± 0.2 kg6 m telescopic boom pole: 7.1 ± 0.2 kg |
| Boom Pole Dimensions | X Ă— 44 Ă— 110 mm (HĂ—WĂ—L) |
| Boom Pole Material | 6063 |
