Hikvision DS-TMT201-D Entrance Ticket Station

Original price was: KSh 442,000.00.Current price is: KSh 440,000.00. excl. VAT

10.1 inch wide temperature high brightness LCD screen, support text, two-dimensional code and other information display, support picture, video loop playback
Device integrated IC card reader, support card upload
The device contains 1 relay-out interface, which can be used for remote control barrier
Support real-time voice intercom function, Integrated echo cancellation and noise cancellation technology
Increase the paper damping to prevent the paper from falling off
roll paper diameter up to 15cm, can be used for a longer time
the maximum thickness of the paper can be 120g/1㎡, thicker and harder, to ensure that the printing receipt is maintained for a longer time

Visit our store and enjoy:

Genuine, brand new, sealed stock
Price-match against authorized dealers
Installation & configuration services available
Expert advice on compatibility with your network

SKU: HB41135 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

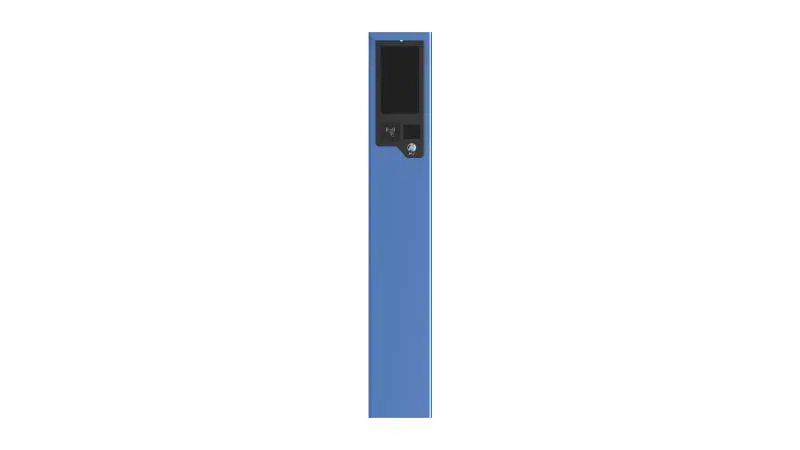

Hikvision DS-TMT201-D Entrance Ticket Station

The Hikvision DS-TMT201-D Entrance Ticket Station streamlines access control and manages tickets efficiently in venues such as parking lots, amusement parks, and public transport hubs.

Specification

Printer
Print Mode	thermal printing
Paper Width	57mm
Roll Outside Diameter	150 mm
Roll Inside Diameter	12±1 mm
Remarks	The length of ticket depends on the contents you set, the upper margin is 1.5cm, thebottom margin is 1cm
Audio
Audio Encoding	G.711U
Audio Bit Rate	64 Kbps
Audio Input	All-directional microphone
Audio Output	loudspeaker 5.5W
Audio Quality	Echo suppression, Noise cancellation
Two-Way Audio Mode	Full duplex two-way voice intercom
Network
Interface Protocol	TCP/IP
Display Screen
Screen Type	10.1 inch LCD screen 1080P
Interface
Alarm Input	2
Alarm Output	2
Network Interface	10M/100M self-adaption × 1
Card Reader
Card Reader Type	IC card, CPU card
Card Reader Frequency	13.56MHz
General
Working Temperature andHumidity	-40°C ~ 70°C10% ~ 95%
Power Supply	220V 50Hz
Power Consumption	<100W 220VAC
Dimensions	230 × 248 × 1386 mm (9.06 × 9.76 × 54.57 inch)
Protection	IP54
Weight	16.86 kg (37.17 lb.)
Weight (with Package)	19.51 kg (43.01 lb.)
Dimensions (with Package)	320 × 360 × 1492 mm (12.6 × 14.17 × 58.74 inch)
Operating System	Embedded Linux System

Technical Specifications:

Display: 4.3-inch LCD (for operator interface).
Printer: Thermal, 80mm paper width.
Inputs/Outputs:
- 2x RS-485, 1x RS-232, 1x Ethernet (10/100M).
- 4x DI (alarm inputs), 2x DO (relay outputs).
Power Supply: 12V DC (PoE support with adapter).
Dimensions: 330 × 220 × 150 mm (13 × 8.7 × 5.9 inches).
