Hikvision DS-TVL224-4-5Y(2 rows) Entrance & Exit LED Screen
Original price was: KSh 58,000.00.KSh 57,000.00Current price is: KSh 57,000.00. excl. VAT
- Placed in the entrance of the parking lot, displaying the information of welcome, advertising and news, etc.
- Displaying standard Chinese characters and numeric characters, and its standard communication method is RJ45, both online and offline are supported
- Displaying content can be the remaining parking spaces of the whole parking lot, license plate number, charge and weather forecast, etc.
- Displaying different content according to the instruction from the host computer
- ar subtitle
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network

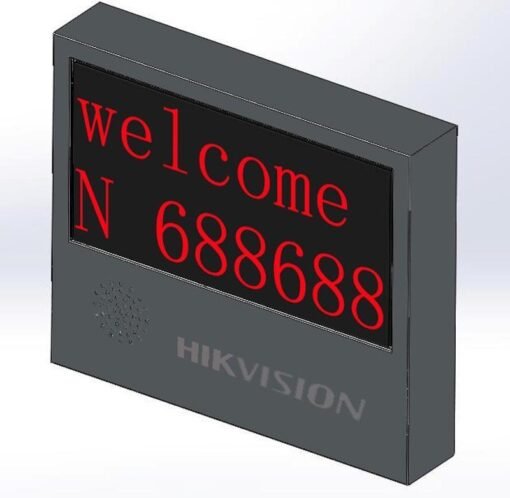

Hikvision DS-TVL224-4-5Y(2 rows) Entrance & Exit LED Screen
The Hikvision DS-TVL224-4-5Y is a high-brightness LED display screen designed for entrance and exit management systems, providing clear visual guidance for vehicles and pedestrians in parking lots, toll stations, and traffic control areas.
Display Screen
-
- Pixel Pitch – P4.75
- Resolution – 64*64
- Display Content – GB2312 Character Set，16*16 Lattice Chinese Characters
- Screen Type – LED
- Display Color – Red,Green,Yellow
- Number of Module – 1
- Viewing Angle – 120° (H) / 120° (V)
- Display Mode – instant，left shift，up forward，etc.
- Pixel Pitch Category – 4.75
- Color Temperature – 3000k to 6000k
- Brightness Uniformity – ≥95%
- Color Uniformity – ≥95%
- Contrast Ratio – 2000 : 1
- Luminance – 1500cd/m²
- Scanning Mode – 8S
- Communication Mode – TCP
Specification |
|
| Installation | |
| Maintenance Mode | Front |
| Display Screen | |
| Pixel Pitch | P4.75 |
| Resolution | 64*32 |
| Display Content | GB2312 Character Set，16*16 Lattice Chinese Characters |
| Screen Type | LED |
| Display Color | Red,Green,Yellow |
| Number of Module | 1 |
| Viewing Angle | 120° (H) / 120° (V) |
| Display Mode | instant left shift，up forward，etc. |
| Pixel Pitch Category | 4.75 |
| Color Temperature | 3000k to 6000k |
| Brightness Uniformity | ≥95% |
| Color Uniformity | ≥95% |
| Contrast Ratio | 2000 : 1 |
| Luminance | 1500cd/m² |
| Scanning Mode | 8S |
| Communication Mode | TCP |
| General | |
| Screen Border Material | Iron Frame Spraying Plastic（Dark armored glass for display part） |
| Working Temperature andHumidity | -30 to 60 °C10% to 85% RH |
| Power Supply | AC110-240V,50/60Hz,max0.5A |
| Package Dimensions | 475mm*430mm*185mm |
| Dimensions | 355 Ă— 315 Ă— 80 mm (13.98 Ă— 12.4 Ă— 3.15 inch) |
| Weight | 5.3 kg (11.68 lb.) |
| Weight (with Package) | 6.4 kg (14.11 lb.) |
| Storage Temperature andHumidity | -40 to 70 °C10% to 85% RH |
| Average Consumption | 10W |
| Max. Consumption | 30W |
| Lifespan | 100000Hours |
| Approval | |
| Protection | IP54 |
Typical Applications
-  Parking lot entrances/exits (displays available spaces, fees).
-  Toll stations (shows payment status, alerts).
-  Traffic guidance (directs vehicles in airports, malls).
-  Security checkpoints (displays access permissions).
