Hikvision DS-TVL224-8-5EY Outdoor Led Speed Display Screen
Original price was: KSh 262,000.00.KSh 260,000.00Current price is: KSh 260,000.00. excl. VAT
- Placed in Enclosed Area, Industrial Park, Enterprise Park, Campus and Port, etc., displays the information of speed and license plate.
- Display three colors to represent different speed status, such as over speed, normal speed, etc., to remind drivers of the bad driving behavior.
- Max. visible distance is up to 50m, makes driver notice the information in time.
- The communication interface is RJ45/RS485, make connection more convenient.
- Support various environments with the working temperature range is -30ºC to 60ºC.

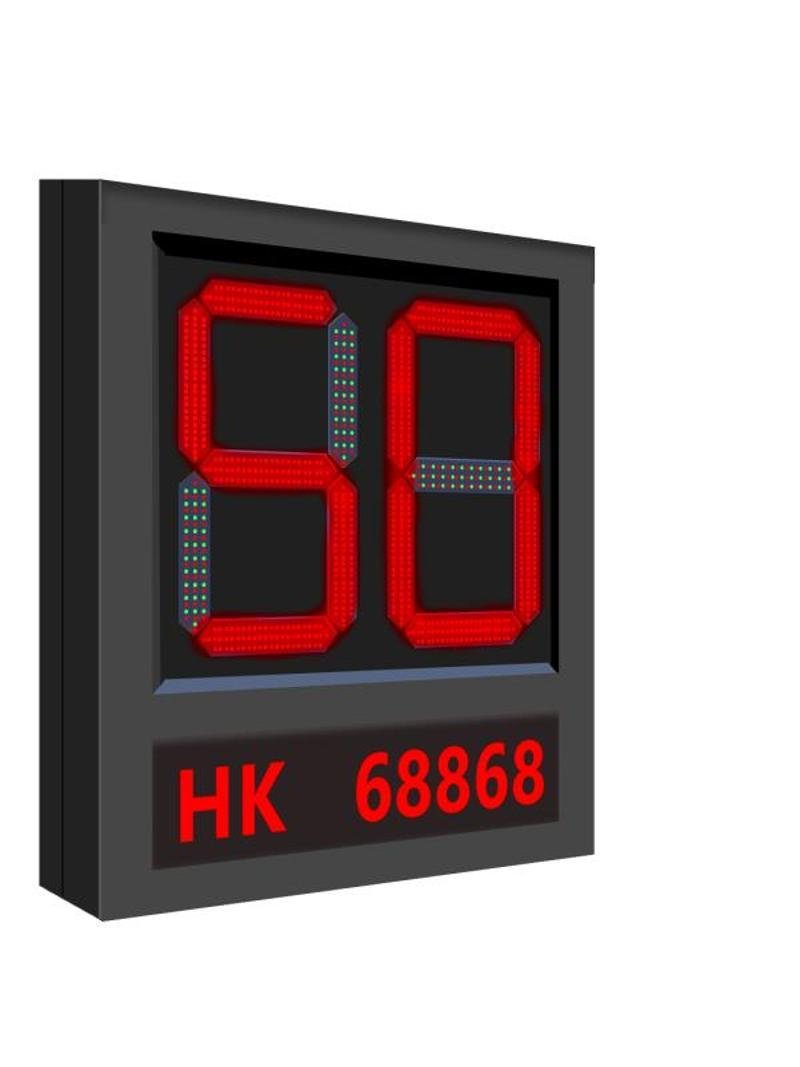

Hikvision DS-TVL224-8-5EY Outdoor Led Speed Display Screen
The Hikvision DS-TVL224-8-5EY is a professional-grade outdoor LED speed display screen designed for traffic speed monitoring and driver feedback systems
Outdoor LED Display for Speed Information DS-TVL224-8-5EY, placed in the enclosed area, industrial park, enterprise park, campus, port, etc., displays the information of speed and license plate. It can display red, green, and yellow to represent different speed status.
Meanwhile, the display content keeps flashing when it reports the over speeding, which reminds the driver to pay attention to the illegal behavior. What’s more, it integrates with highlight LED lamp beads, which are visible within 50 meters. The display also features in lightweight, easy mounting, and anti-corrosion shell. It can apply to various scenarios.
Specification
| Display for Speed | |
| Character Standard | Number 8 |
| Character Number | 2 |
| Color | Red, Green, Yellow |
| Size | Width: 641 mm, Height: 540 mm (approximately) |
| Display for License Plate | |
| Character Standard | P10 |
| Color | Red, Green, Yellow |
| Size | Width: 641 mm, height: 161 mm |
| Resolution | 64 × 16 |
| Display | |
| LED | DIP346 |
| Pixel Composition | Display for speed: 1R1G, display for license plate: 2R1G |
| Luminance | 5,000 cd/m2 |
| Viewing Angle | Horizontal: 110°/ Vertical: 60° |
| Max. Visual Range | 50 m |
| Module Interface | HUB12 |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| LED Lifetime | 100,000 hours |
| Max. Power Consumption | 200 W |
| Average Power Consumption | 80 W |
| Temperature | -30 ºC to 60 ºC |
| Humidity | 10% to 95% |
| Materials | Aluminum plate |
| Dimension | Width: 740 mm, Height: 850 mm, Depth: 90 mm |
| Weight | 25 kg |
| Protection | IP54 |
