-11%

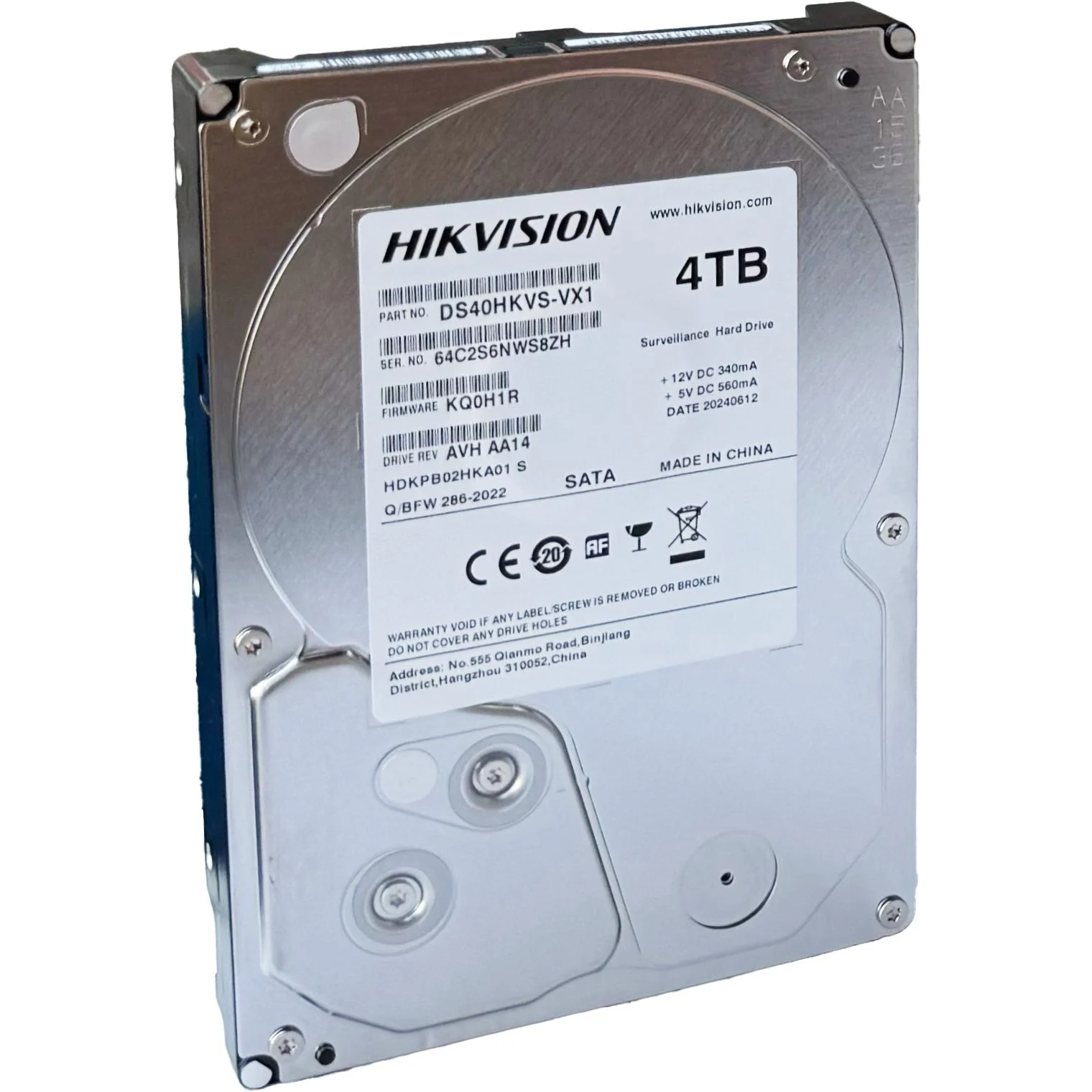

Hikvision DS40HKVS-VX1 4TB 3.5″ SATA Surveillance Hard Disk
Original price was: KSh 14,000.00.KSh 12,500.00Current price is: KSh 12,500.00. excl. VAT
- Supports up to 32 cameras high-definition streams
- 128 MB Cache buffer helps to smooth video recording and guard against frame drops
- Designed for 24×7 operation
- Annual workload rating of 180 TB/year[3]
- MTTF of 1M hours[4]
- Industry-standard 3.5-inch form-factor[5] and SATA interface
- Advanced Format 512e Sector Technology
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Hikvision DS40HKVS-VX1 4TB 3.5″ SATA Surveillance Hard Disk
The Hikvision DS40HKVS-VX1 is a 4TB 3.5-inch SATA surveillance hard disk engineered specifically for continuous, high-definition video recording in security systems.
Specifications
| Item | DS40HKVS-VX1 | DS20HKVS-VX1 | |
| Interface | SATA | ||
| Formatted Capacity | 4 TB | 2TB | |
|
Performance |
Interface Speed [6] | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s | |
| Rotation Speed | 5400 rpm | ||
| Buffer Size | 128 MB | ||
| Maximum Data Transfer Speed(Sustained) (Typ.) | 176.4 MB/s | ||
| Logical Data Block Length[9] | HOST: 512 B, DISK: 4096 B | ||
| Supply Voltage | Allowable Voltage | 12 V [10] ± 10 % / 5 V [10] ± 5 % [11] | |
| Power Consumption | Operating (Typ.)[12] | 4.11 W | 4.01 W |
| Active idle (Typ.) | 2.36 W | 2.08 W | |
| Standby (Typ.) | 0.20 W | 0.31 W | |
| Acoustics (Sound Power)[13] | Low Power Idle (Typ.) | 22 dB | 21 dB |
Environment Limit
| Item | Specification | |
| Ambient temperature | Operating | 0 °C to 60 °C (No condensation) |
| Non-Operating [14] [15] | – 40 °C to 70 °C (No condensation) | |
| Enclosure surfacetemperature | Operating | 0 °C to 70 °C (No condensation) [16] |
| Relative Humidity | Operating | 5 % to 90 % R.H. (No condensation) |
| Non-Operating | 5 % to 95 % R.H. (No condensation) | |
| Altitude | Operating | – 305 m to 3048 m |
| Non-Operating [14] | – 305 m to 12 192 m | |
| Shock [14] | Operating | 686 m/s2 { 70 G } ( 2 ms duration ) |
| Non-Operating | 6TB: 2940 m/s2 { 300 G } / 4TB, 2TB: 3430 m/s2 { 350 G } ( 2 ms duration ) | |
| Vibration [14] | Operating [15] | 4.90 m/s2 { 0.50 G } ( 5 to 350 Hz )2.45 m/s2 { 0.25 G } ( 350 to 500 Hz ) |
| Non-Operating [17] | 29.4 m/s2 { 3.0 G } ( 5 to 500 Hz ) | |
Reliability
| Item | Specification |
| MTTF / AFR [4] | 1 000 000 hours / 0.88% |
| Non-recoverable Error Rate | 1 error per 1014 bits read |
| Load / Unload | 600 000 times |
| Availability | 24 hours/day, 7 days/week |
| Rated Annual Workload (Total TB Transferred per Year,R/W) | 180 TB/year |
Mechanical Specification
| Item | DS40HKVS-VX1 | DS20HKVS-VX1 |
| Width | 101.6 mm ± 0.25 mm | |
| Height (Max) | 26.1 mm | |
| Length (Max) | 147.0 mm | |
| Weight (Max) | 650 g | 440 g |
