-4%

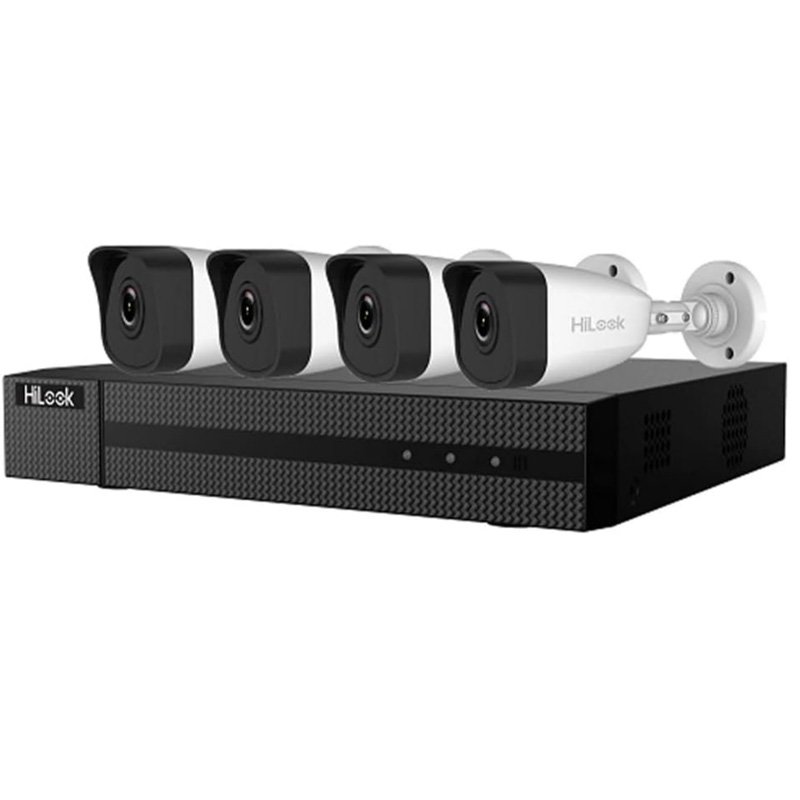

Hikvision- HiLook IK-4142TH-MH 4-ch 2 MP Bullet & Turret Kit
Original price was: KSh 47,000.00.KSh 45,000.00Current price is: KSh 45,000.00. excl. VAT
- One pack contains everything required for small monitoring scenarios
- One 4-channel PoE NVR with decoding up to 2-ch @ 1080p
- Four 2 MP turret network cameras with efficient H.265 compression technology
- 5 network cables and 1 HDMI cable;
- 1 TB pre-installed HDD;
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Hikvision- HiLook DS-J142I(STD)/TK-4142TH-MH 4-ch H.265 2 MP Bullet&Turret Kit
The Hikvision HiLook IK-4142TH-MH is a 4-channel 2MP entry-level surveillance kit designed for small businesses or residential use.
Key Feature
- Â H.265+/H.265/H.264+/H.264 video compression
- Â PoE connection
- Â 4 Ă— 2 MP IR fixed network turret camera
- Â 1 x NVR, full channel recording at up to 4 MP resolution
Camera
-  1/2.8″ Progressive Scan CMOS
- Â 1920 Ă— 1080@30 fps
- Â 2.8 mm fixed lens
- Â Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
- Â 3D Digital Noise Reduction
NVR
- Â Up to 4-ch network camera inputs (up to 4 MP)
- Â 2-ch@1080p/1-ch@4 MP decoding capability
- Â HDMI/VGA output with up to 1920 Ă— 1080 resolution
- Â HiLookVision for easy network management
Specification
| Kit Model | IK-4142TH-MH/P |
| Camera Model | 4 Ă— IPC-T221H (2.8 mm) |
| NVR Model | NVR-104MH-D/4P |
Camera |
|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day &Night | IR cut filter |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Protection Level | IP67 |
| Material | Camera body: metal, bottom base: plastic |
Lens |
|
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | Horizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 30 m |
Compression Standard |
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Main Profile/High Profile/Baseline Profile |
| H.264+ | Main Profile |
| H.265 Type | Main Profile |
| H.265+ | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
Image |
|
| Max. Resolution | 1920 Ă— 1080 |
| Main Stream | 50 Hz: 25 fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)60 Hz: 30 fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720) |
| Sub-stream | 50 Hz: 25 fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)60 Hz: 30 fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240) |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable byclient software or web browser |
| Day/Night Switch | Auto/Scheduled/Day/Night |
Network |
|
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Client | iVMS-4200, HiLookVision, iVMS-5200, iVMS-4500 |
Interface |
|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Out | No |
| Alarm I/O | No |
| Reset Button | No |
General |
|
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3) |
| Consumption | 12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max:4.5 W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Dimension (W Ă— D Ă— H) | Ă˜ 110 mm Ă— 93.2 mm (4.3″ Ă— 3.7″) |
| Weight | Approx. 360 g (0.8 lb) |
NVR |
|
| Video and Audio | |
| IP Video Input | 4-ch |
| Up to 4 MP resolution | |
| Incoming/OutgoingBandwidth | 40 Mbps/60 Mbps |
| HDMI/VGAÂ Output | 1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz |
Decoding |
|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Resolution | 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Capability | 2-ch@1080p / 1-ch@4 MP |
Network |
|
| Network Interface | 1, RJ45 10/100M Ethernet interface |
| Network Protocol | IPv6, UPnPâ„¢, NTP, SADP, DHCP |
| Remote Connection | 16 |
PoE |
|
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 36 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 Ă— USB 2.0 |
| Alarm In/Out | No |
General |
|
| Power Supply | 48 VDC |
| Consumption (without HDDand PoE off) | ≤ 10 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W Ă— D Ă— H) | 265 Ă— 225 Ă— 48 mm (10.4″ Ă— 8.9″ Ă— 1.9″) |
| Weight (without hard disk) | ≤ 1 kg (2.2 lb) |
Kit |
|
| Accessories | Power: 1 power cableNetwork cable: 4 Ă— 18.3 m (60 ft) video and power cable HDMI cable: 1 HDMI cable |
| Hard Drive | Pre-installed 1 TB HDD |
| Certification | FCC, CE |
| Weight (with package) | ≤ 8 kg (17.6 lb) |
