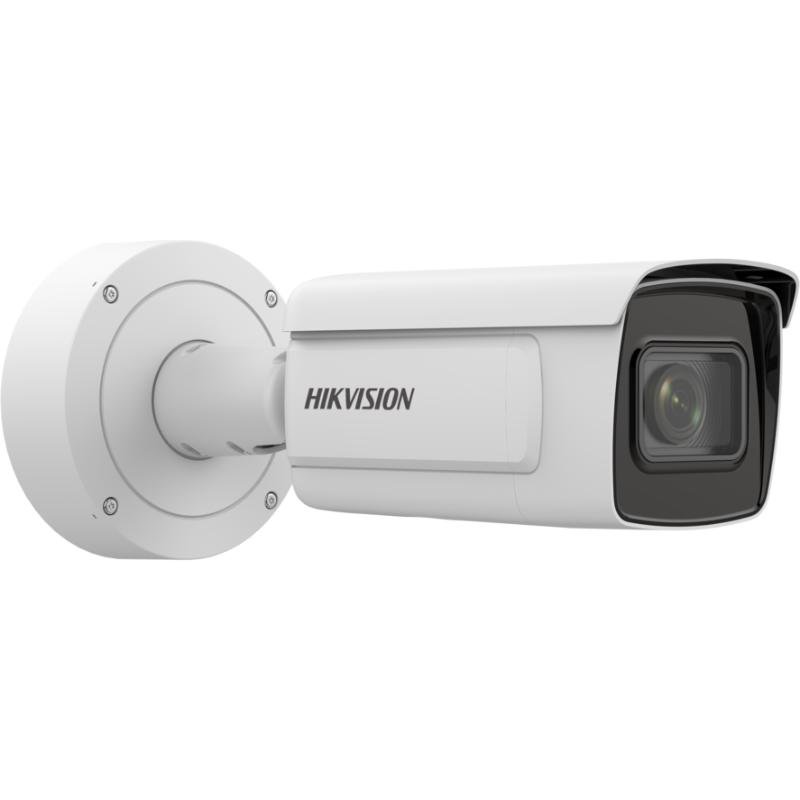

Hikvision iDS-2CD7A46G0/P-IZHS(2.8-12mm) 4MP DeepinView Moto Varifocal Bullet Camera
The Hikvision iDS-2CD7A46G0/P-IZHS is a 4MP AcuSense bullet camera designed for high-performance surveillance with advanced AI detection capabilities. Hikvision has been dedicated to develop products with security since established.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection.
In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product’s cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Function |
Face CaptureWith embedded deep learning based algorithms, the camera is able to give the best shot of a target face through detecting, capturing, grading and selecting. The camera uses face exposure function to dynamically adjust face area exposure of captures and ensures high face picture quality. Perimeter ProtectionWith embedded deep learning based target detection and classification algorithms, the camera carries out the duty of perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms greatly filter out the mistaken alarm caused by the interference of leafs, lights, animal, flag, etc. Multi-Target-Type DetectionWith the embedded deep learning algorithms, the camera detects and captures the face, human body, vehicle in the specified region. Queue ManagementWith embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. It can generate reports to compare the efficiency of different queuing-ups and display the changing status of one queue, and supports raw data export for further analysis. Regional People CountingWith the embedded deep learning algorithms, the camera supports people density detection and will upload detection data through scheduled uploading, number of people change uploading and congestion level uploading. It also supports number of people exception detection and waiting time exception detection. On/Off Duty DetectionWith the embedded deep learning algorithms, the camera supports absence detection and on/off duty detection. It can detect the on/off duty status and people number changes in a predefined area. Heat MapThe camera can generate a graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area. Multi-Dimension People CountingWith the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and compares them with the built-in face picture library to remove duplicates. It counts persons and reports an alarm simultaneously to achieve both the entrance control and people counting. Hard Hat DetectionWith the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and reports an alarm if not. |
Specification |
|
Camera | |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max. Resolution | 2688 Ă— 1520 |
Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON);B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1 s to 1/100,000 s |
Day & Night | IR cut filterBlue glass module to reduce ghost phenomenon |
Lens |
|
Focal Length & FOV | 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonalFOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3° |
Focus | Auto,Semi-auto,Manual |
Iris Type | P-iris |
Aperture | 2.8 to 12 mm: F1.2 to F2.58 to 32 mm: F1.7 to F1.73 |
DORI |
|
DORI |
Wide:2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m Tele: 2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m 8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | 2.8 to 12 mm: 50 m8 to 32 mm: 100 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
AI Open Platform | |
Model Specification | Up to 4 models,Model type: detection model, classification model, mixed model (detection model and classification model) |
Video |
|
Main Stream |
50 Hz:25 fps (2688 Ă— 1520, 2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720)
50 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) 60 Hz: 30 fps (2688 Ă— 1520, 2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) 60 fps (2560 Ă— 1440, 1920 Ă— 1080, 1280 Ă— 720) |
Sub-Stream | 50 Hz: 25 fps (704 Ă— 576, 640 Ă— 480)60 Hz: 30 fps (704 Ă— 480, 640 Ă— 480) |
Third Stream | 50 Hz: 25 fps (1920 Ă— 1080, 1280 Ă— 720, 704 Ă— 576, 640 Ă— 480)60 Hz: 30 fps (1920 Ă— 1080, 1280 Ă— 720, 704 Ă— 480, 640 Ă— 480) |
Fourth Stream | 50 Hz: 25 fps (704 Ă— 576, 640 Ă— 480)60 Hz: 30 fps (704 Ă— 480, 640 Ă— 480) |
Fifth Stream | 50 Hz: 25 fps (704 Ă— 576, 640 Ă— 480)60 Hz: 30 fps (704 Ă— 480, 640 Ă— 480) |
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR,VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 4 fixed regions for each stream |
Target Cropping | Yes |
e-PTZ | Support Patrol and Auto Tracking settings |
Audio |
|
Environment Noise Filtering | Yes |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Type | Mono sound |
Network |
|
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS,WebSocket, WebSockets |
Simultaneous Live View | Up to 20 channels |
API | Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
User/Host | Up to 32 users3 user levels: administrator, operator, and user |
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log,TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200,Hik-Connect,Hik-Central |
Web Browser | Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image | |
Image Parameters Switch | Yes |
Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustableby client software or web browser |
Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
Wide Dynamic Range (WDR) | 140 dB |
Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
SNR | ≥ 52 dB |
Privacy Mask | 8 programmable polygon privacy masks |
Image Stabilization | EIS |
Picture Overlay | LOGO picture can be overlaid on video with 128 Ă— 128 24 bit bmp format. |
Interface |
|
Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
Audio | With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector |
Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
RS-485 | With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
Reset Key | Yes |
Power Output | With -Y: 12 VDC, max. 100 mA |
Event |
|
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibrationdetection |
Smart Event | scene change detection,audio exception detection,defocus detection |
Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarmoutput,trigger recording,trigger capture,audible warning |
Deep Learning Function |
|
Multi-target-type Detection |
Supports simultaneous detection and capture of human body, face, and vehicle, Gets 7 face features,Gets 13 human body features, Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle, Supports dynamic mosaic mask |
Face Capture |
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode, Supports dynamic mosaic mask, Gets 7 face features |
