Hikvision ISD-SC6550SA-E2CL X-ray Machine

Original price was: KSh 1,905,000.00.Current price is: KSh 1,900,000.00. excl. VAT

Low Radiation Dose The radiation leakage dose rate reaches the natural environmental background level, far lower than the national standard requirements
Security Networking supports access to the higher security screening networking management platform to achieve data management
Data Storage support scanning images. video, pictures, alarm information in local storage, viewing, calling
Event Tracing X-ray images can be combined with video information to achieve package tracing

SKU: HB41099 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

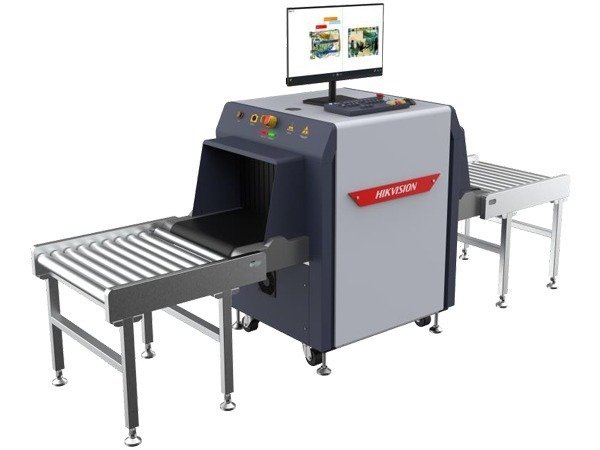

Hikvision ISD-SC6550SA-E2CL X-ray Machine

The Hikvision ISD-SC6550SA-E2CL dual-energy X-ray security inspection system designed for high-throughput baggage screening .The product is suitable for government agencies, transportation hubs, logistics industry, courts, procuratorates, prisons, embassies, factories, schools, hospitals, stadiums, exhibition halls, entertainment venues and other scenes, can be used for the safety inspection of briefcases, postal bags, express mail, portable luggage and small parcels.

Specification

Model		ISD-SC6550SA-E2CL
Size	Tunnel Size	650mm×500mm（W×H）
	Dimension	1831mm×890mm×1300mm（L×W×H）
Performance	Line Resolution	36AWG standard, 38AWG typical
	PenetrationSteel panel	8mm standard, 10mm typical
	Spatial Resolution	1.3mm(Horizontal and vertical)
	X-Ray Generator	80kV 0.6mA(Adjustable)
	X-Ray Cooling/WorkPeriod	Oil Cooling/Continuous
	Film Security	Standard of ASA/ISO1600
System Function	Additional Feature	64 times continuous zoom in, Displays the date/time，Luggage counter， user-id, High density alarm, TIP, Operation training system, System runningtimer, X-ray emitting timer
Radiation	Leakage		＜1μGy/h, 50mm away from the device sheet
Conveyor	Conveyor Height	600m
	Speed	0.2m/s
Video	Sensor Type	1/2.8″ Progressive Scan CMOS
	Camera	2 ch （each at entrance and exit）
	Video CompressionStandard	H.265 /H.264 / MJPEG
	Max. Image Size	1920× 1080
	Frame Rate	50Hz: 25fps (1920× 1080，1536× 864，1280 × 720)
	Storage Time	≥30 days
Display	Screen Size	21.5″, Single Screen,1920×1080
General	Noise level	＜60dB(A)，1m distance
	Consumption	＜0.8KVA
	Power	220VAC(±10%) 50±3Hz
	Operating Humidity	10% to 95%(No Condensation)
	OperatingTemperature	0℃ to 45℃
	Weight	500 kg

This system represents Hikvision’s cutting-edge X-ray inspection technology, combining advanced imaging physics with intelligent analysis for comprehensive security screening solutions.
