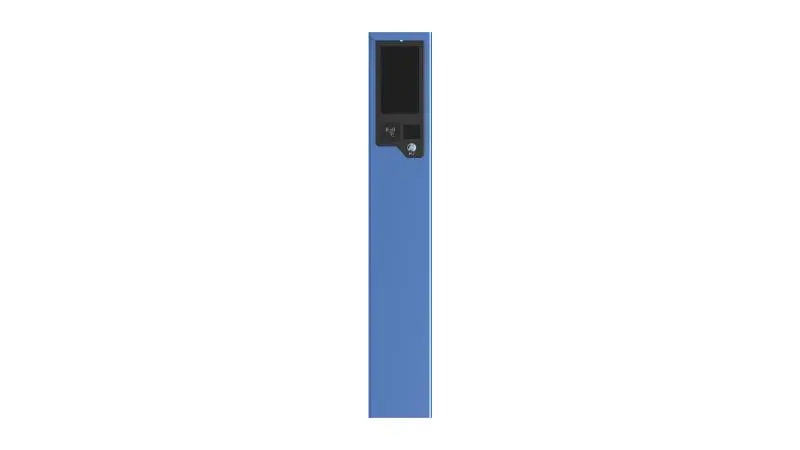

Hivision DS-TMT202-D Entrance & Exit Controllers

Original price was: KSh 452,000.00.Current price is: KSh 450,000.00. excl. VAT

10.1 inch wide temperature high brightness LCD screen, support text, two-dimensional code and other information display, support picture, video loop playback
Device integrated IC card reader, support card upload
The device contains 1 relay-out interface, which can be used for remote control barrier
Support real-time voice intercom function, Integrated echo cancellation and noise cancellation technology
Support SDK protocol

SKU: HB41131 Categories: Hikvision Access Control, Hikvision Store Kenya Brand: Hikvision

Description
Reviews (0)

Hivision DS-TMT202-D Entrance & Exit Controllers

The Hikvision DS-TMT202-D is an Entrance & Exit Controller designed for access control management in security systems. It supports bidirectional pedestrian flow control and integrates with Hikvision’s access control ecosystem.

Specification

Audio
Audio Encoding	G.711U
Audio Bit Rate	64 Kbps
Audio Input	All-directional microphone
Audio Output	loudspeaker 5.5W
Audio Quality	Echo suppression, Noise cancellation
Two-Way Audio Mode	Full duplex two-way voice intercom
Network
Interface Protocol	TCP/IP
Scan and Recognition
Recognition Distance	0-9cm
Recognition Type	Bar code, QR code
Display Screen
Screen Type	10.1 inch LCD screen 1080P
Interface
Alarm Input	2
Alarm Output	2
Network Interface	10M/100M self-adaption × 1
Card Reader
Card Reader Type	IC card, CPU card
Card Reader Frequency	13.56MHz
General
Working Temperature andHumidity	-40°C ~ 70°C10% ~ 95%
Power Supply	220V 50Hz
Power Consumption	<50W 220VAC
Dimensions	230 × 237.5 × 1386 mm (9.06 × 9.35 × 54.57 inch)
Protection	IP54
Weight	16.86 kg (37.17 lb.)
Weight (with Package)	19.51 kg (43.01 lb.)
Dimensions (with Package)	320 × 360 × 1492 mm (12.6 × 14.17 × 58.74 inch)
Operating System	Embedded Linux System

Key Features:

Dual-Direction Access Control
- Manages both entry and exit of pedestrians in secured areas.
- Supports two access points (one controller for two doors/gates).
Multi-Factor Authentication
- Compatible with:
  - RFID cards (EM/CPU cards, NFC).
  - Biometrics (fingerprint, facial recognition when paired with Hikvision readers).
  - Mobile access (Bluetooth, QR codes via Hikvision mobile apps).
Wiegand & RS-485 Communication
- Supports Wiegand (26/34-bit) protocol for connecting card readers.
- RS-485 interface for external devices (e.g., electric locks, alarms).
Integration with Hikvision Ecosystem
- Works with Hikvision ACS software (e.g., iSecure Center) for centralized management.
- Compatible with Hikvision intercoms (DS-KV8113-WME1) and turnstiles.
Anti-Passback & Alarm Triggers
- Anti-tailgating feature to prevent unauthorized entry.
- Tamper alarm (door forced open) and duress alarm (emergency triggers).
Event Logging & Reporting
- Stores 50,000+ event records (access logs, alarms) locally.
- Exports logs to Hikvision NVRs or VMS platforms for auditing.
