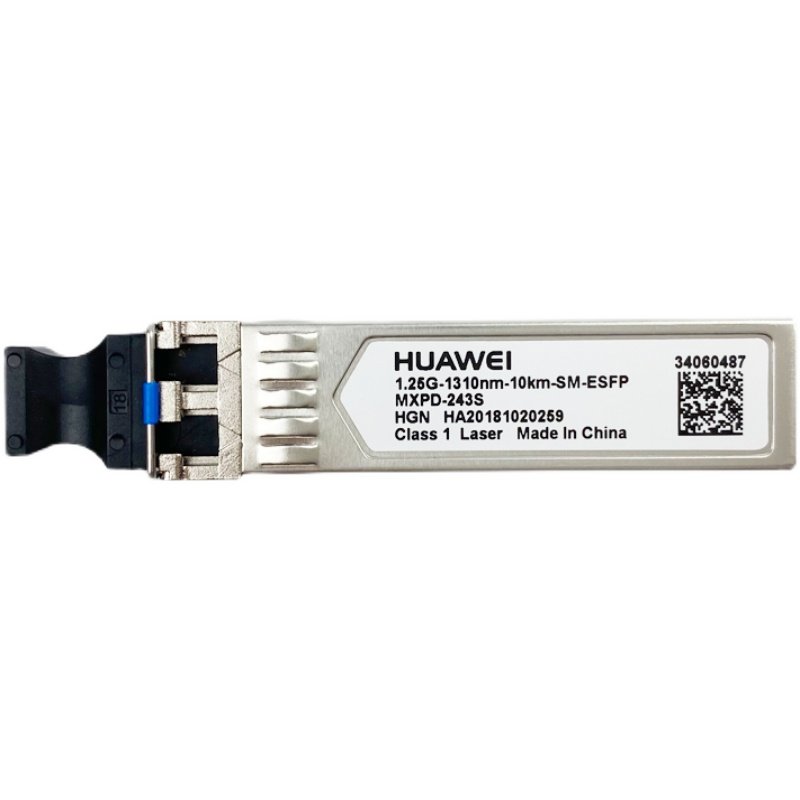

Huawei eSFP 1310nm 1.25G 10km Optical Transceiver
Original price was: KSh 6,500.00.KSh 6,000.00Current price is: KSh 6,000.00. excl. VAT
- Supports data rates up to 1.25Gb/s
- Operates at a wavelength of 1310nm
- Single-mode fiber (SM) compatibility
- LC connector interface
- High-quality optical components for reliable performance
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Huawei eSFP 1310nm 1.25G 10km Optical Transceiver
The Huawei eSFP-1310nm-1.25G-10km is a high-performance optical transceiver designed for efficient data transfer at 1.25Gb/s over long distances up to 10km. Using a single-mode LC interface, this transceiver operates at a wavelength of 1310nm and ensures reliable connectivity with excellent transmission power and sensitivity.
Product Applications
- Long-distance data centers interconnects
- Enterprise networking for seamless connectivity
- Campus-wide network for high-speed data transfer
Specification | |
| Part Number | 34060290 |
| Model | eSFP(S)-1310nm-1000Base-Lx |
| Description | Low Speed Transceiver,eSFP,1310nm,1.25Gb/s,-9dBm,-3dBm,-19dBm,LC(-40~85),10km |
| Level-1 category | 1.25Gbps eSFP Optical Module |
| Module name | 1.25Gbps-eSFP-SMF-1310nm-10km-industry |
| Technical Specifications | |
| Connector type | LC |
| Optical fiber type | SMF |
| Form factor | eSFP |
| Transmission rate [bit/s ] | 1.25 Gbit/s |
| Target transmission distance [km] | 10 km |
| Application standard | IEEE 802.3, 1000BASE-LX10 |
| Working case temperature [°C(°F)] | –40°C to +85°C (–40°F to +185°F) |
| Center wavelength [nm] | 1310 nm |
| Overload power (OMA) [dbm] | - |
| Overload power (AVG) [dbm] | -3 dBm |
| Minimum Tx optical power (OMA) [dbm] | - |
| Minimum Tx optical power (AVG) [dbm] | -9 dBm |
| Maximum Tx optical power (OMA) [dbm] | - |
| Maximum Tx optical power (AVG) [dbm] | -3 dBm |
| Minimum extinction ratio [db] | 9.5 dB |
| Rx operating wavelength range [nm] | 1260 nm - 1360 nm |
| Tx operating wavelength range [nm] | 1260 nm - 1360 nm |
| Rx sensitivity (AVG) [dbm] | -19 dBm |
| Rx sensitivity (OMA) [dbm] | - |
| DDM options | SFF-8472 |
| Bit error ratio (BER) | <1x10E-12 |
| Environment standard | RoHS |
| Security standard | FCC Class B, IEC 60825-1 Class 1 |
| ESD(HBM1) | 500 |
