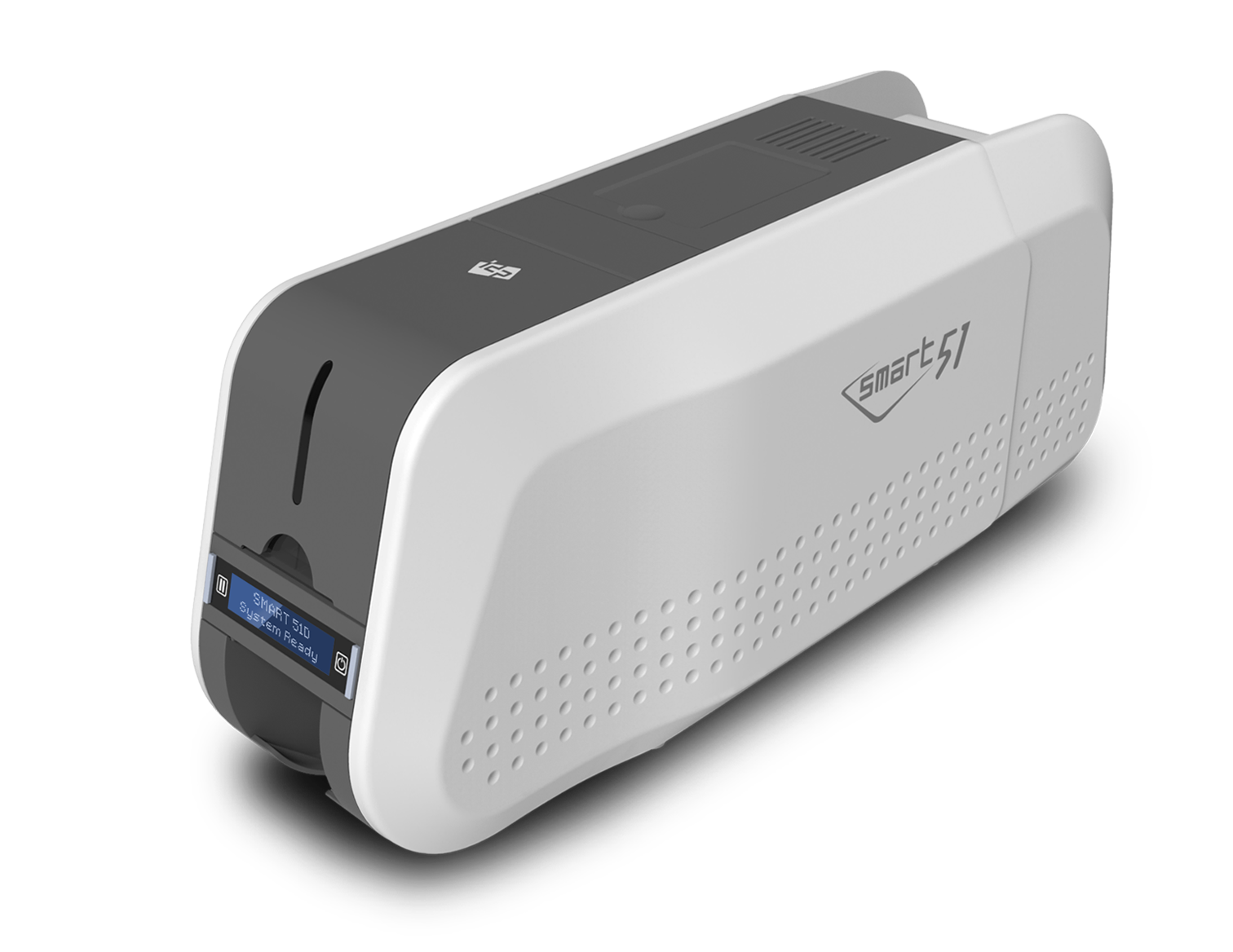

IDP SMART-51D Dual Sided ID Card Printer

The IDP SMART-51D is a high-performance dual-sided ID card printer designed for fast, reliable and cost-effective card issuance. Built for businesses, institutions and security environments that require professional card printing, it produces sharp, durable cards on both sides in a single pass—saving time and improving workflow efficiency.

With its enhanced print engine and superior color rendering, the SMART-51D delivers clear text, vibrant graphics and crisp photo quality, ideal for staff badges, access cards, membership cards, student IDs and more. It prints up to 212 full-color cards per hour, making it an excellent choice for medium to high-volume printing environments.

Specification

Printing

• Print Mode

  Dual Sided

• Print Type

  Direct Dye-Sublimation

• Print Area

  Edge to Edge

• Resolutions

  300dpi (Color & Mono), 600 & 1200dpi (Mono only)

Card

• Card Feeding

  Automatic

• Card Size

  ISO CR80 or ISO CR79 (Option-Factory installed)

• Card Thickness

  0.38mm (15mil) ~ 1.0mm (40mil)

• Card Type

  PVC, PET, Composite PVC

Print Speed

• Monochrome

  5 sec./card (720 cards/hour)

• YMCKO

  Max. 17 sec./card (212 cards/hour)

• YMCKOK

  Max. 22 sec./card (164 cards/hour)

Capacity

• Input Hopper: Card

  100 Cards / 200 Cards with cover open

• Output Hopper: Card

  Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)

System

• Memory

  64MB RAM

• Interface

  2 Line LCD / 2 LED Buttons

• Supported Platforms

  Microsoft Windows 7/ 8 /10, Mac OS, Linux

• Communication

  USB, Ethernet, WiFi (Option)

• Power Supply

  Free Voltage (AC 100/ 220V, 50~60Hz)

• Power Consumption

  48W

• Temperature

  15~35℃

• Humidity

  35~70%

Security

• Physical Lock

  Input Hopper & Ribbon (Option)

• Station Itself

  Kensington Lock (Option)

Dimensions

• Milimeter

  165 (W) x 498 (L) x 210 (H)

• Inch

  6.5 (W) x 19.6 (L) x 8.3 (H)

Weight

• Kg/Lbs

  5.2 / 11.5

Encoding Option

• Magnetic

  ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II

• Contact

  ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card

• Contactless

  ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
