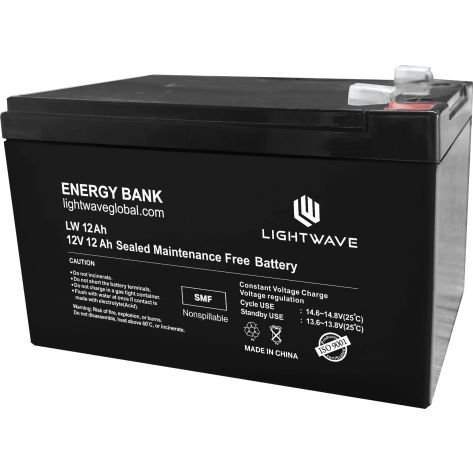

Lightwave LW 12AH 12V/12AH UPS High Performance battery

The Lightwave LW12V/12AH is a high-performance 12V 12Ah sealed lead acid (SLA) battery. It delivers reliable power for critical applications such as UPS systems, emergency lighting, alarm systems, security systems, and backup power for electronics. The valve-regulated lead acid (VRLA) design ensures safe and durable performance. It offers maintenance-free operation and high energy density in a compact size.

This battery runs at a nominal voltage of 12V. It provides a nominal capacity of 12Ah at a 20-hour rate. It delivers consistent and reliable power. The design is compact, with dimensions of 151mm (length), 99mm (width), and 95mm (container height). The total height reaches 101mm.

Despite its compact size, the LW12V/12AH weighs approximately 3.2 kg and uses a Fasten Tab No.187E terminal for secure and convenient installation.

More about Lightwave 12V/12AH Ups battery

The electrical performance of the Lightwave LW12V/12AH remains stable under various load conditions. It features excellent discharge characteristics, with a 1-hour rate of 7.2A and a 3-hour rate of 3.0A.

Its internal resistance is low at 17mΩ when fully charged at 25°C, ensuring efficient power delivery. The battery retains 102% capacity at 40°C, 100% at 25°C, and still maintains 85% at freezing point (0°C), making it suitable for a range of environments.

For charging, the battery supports both cyclic and standby applications. In cycle mode, it charges with an initial current less than 3.6A at 14.4–15.0V. In standby mode, it operates at 13.5–13.8V with no limit on initial charging current. Its performance is further supported by stable constant current and constant power discharge ratings, providing long runtime and efficient power utilization during use.

Whether used for industrial purposes or residential backup, the Lightwave LW12V/12AH delivers trusted performance, long service life, and safe operation, making it an excellent choice for demanding energy storage needs.
