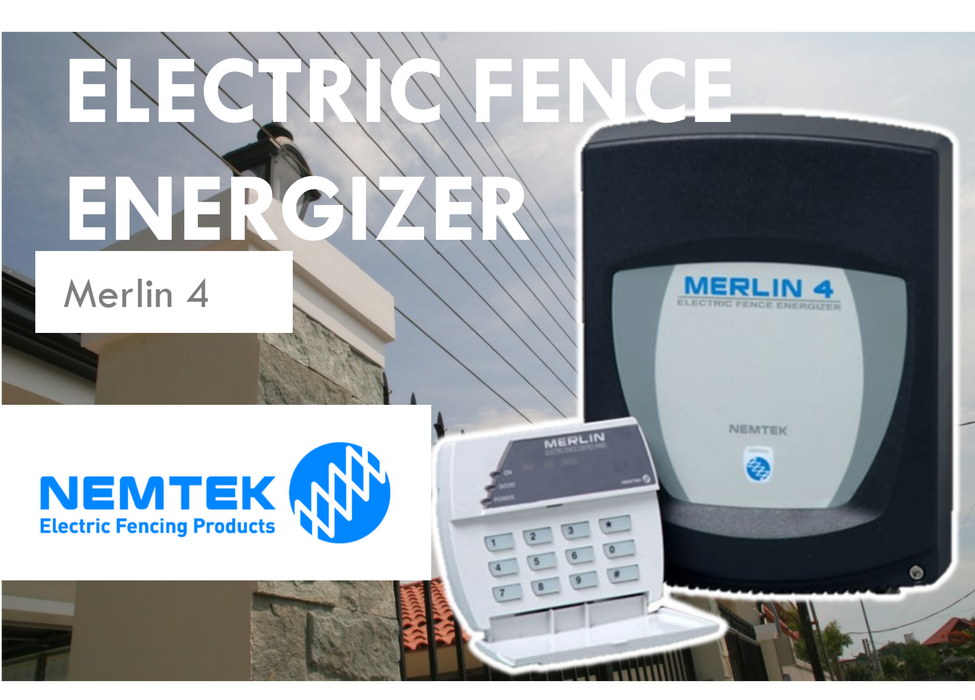

MERLIN 4I ELECTRIC FENCE ENERGIZER SPECIFICATIONS AND DETAILS
Overview
The Merlin 4i includes a keypad for controlling and programming the energizer. The energizer can be installed near the fence and the keypad can be located where it is most convenient for the user. This allows the user to control the energizer remotely, with up to four keypads.
Discover the advanced features of the Merlin 4i Electric Fence Energizer, designed to revolutionize your security system. At the heart of its capabilities is a user-friendly keypad, which empowers you with precise control and programming options.
Installation is a breeze as the energizer can be strategically placed in close proximity to your fence, optimizing its performance. Meanwhile, the keypad can be situated wherever it is most convenient for you. This thoughtful design allows you to effortlessly manage your electric fence system remotely, granting you unparalleled flexibility and convenience.
But that’s not all – the Merlin 4i takes convenience a step further by accommodating up to four keypads. This means you can have multiple access points to control and monitor your security system from various locations, enhancing the adaptability and efficiency of your setup.
Experience the power of the Merlin 4i Electric Fence Energizer and elevate your property’s protection to new heights. With its intuitive keypad and remote control capabilities, you can rest assured that your security is in your hands, anytime and anywhere. Discover the future of security today.
Highlights
- Robust and flexible design for home and commercial security
- Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
- Powered by 230V mains and includes built-in battery for back-up power
- Built-in gate alarm input to monitor if the gate is open or closed
- Gate chime available to alert that the gate has been opened or closed
- The fence voltage outputs can be adjusted using the keypad
- The siren and gate outputs can be bypassed using the keypad
Technical Specification
Enclosure size | 285(L) x 212(W) x 120(D)mm |
---|---|
Weight | 3.1kg excluding battery (7AH) 5.3kg including battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 18VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 3.7 Joule per zone (500 Ohms load) |
Open circuit voltage | 8000V |
