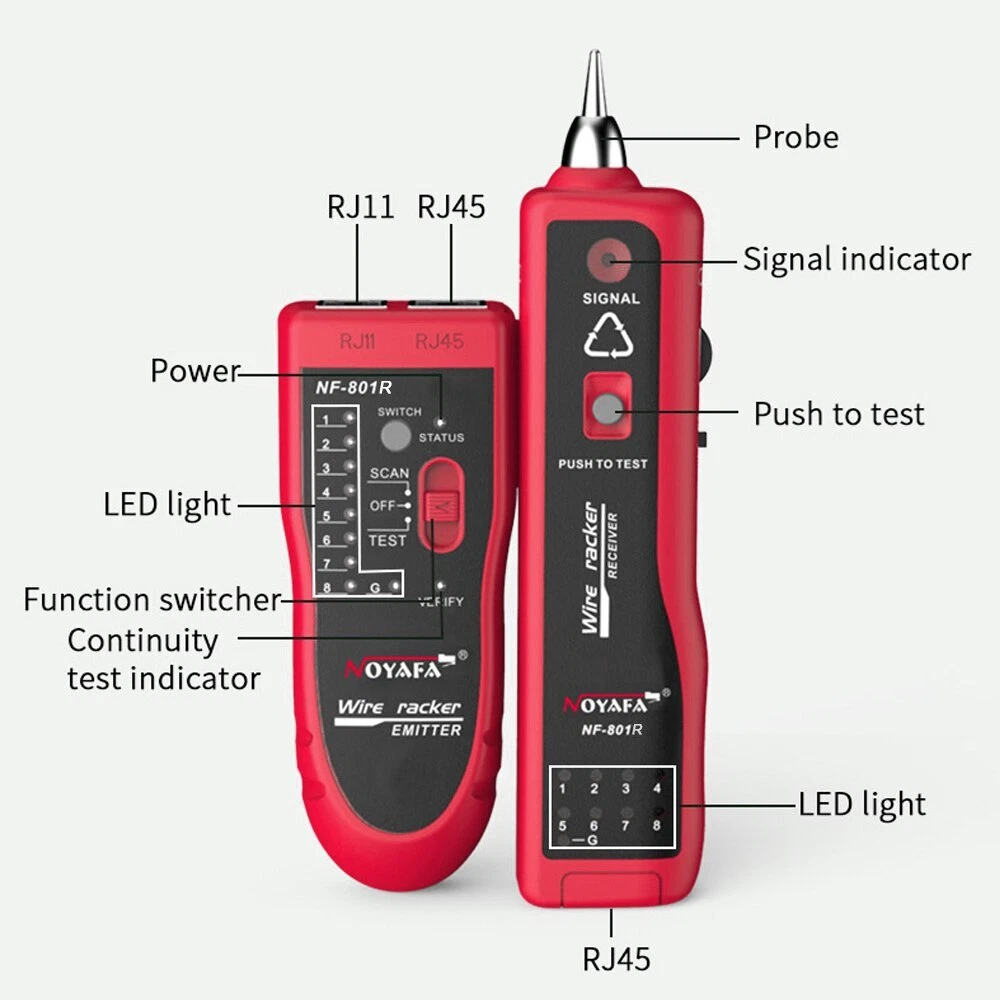

NF-801 WIRE TRACKER SPECIFICATIONS AND DETAILS
Overview
- Quickly trace and identify needed cables among lots of unknown cables.
- Check continuity for Lan cables.
- Track the cables, and diagnose the breakage.
- Visible indication: pin-to-pin cable map for individual cable (not by pairs).
- Low Voltage alarm function.
- Earphone for using in noisy environment.
- LED light assists use in dark scenario.
- Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
- 100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.
Highlights
- Port : RJ11/ RJ45
- Tracing Cable type : UTP/STP RJ45/ RJ11 / metal cable
- Testing Type : STP / UTP (8P8C)
- Power : 9V Alkaline battery(excluded)
- Warranty : Limited.
- Type: Network Tool
Tech Specifications
NF-801 Transmitter specifications | |||
Tone frequency | 200Hz | ||
Max. distance of transmission | Up to 2 kilometers | ||
Max. working current | 10mA | ||
Volume Regulate Function | Audio volume level control | ||
Tone mode | 2 Tones, adjustable | ||
Compatible connectors | RJ11, RJ45 | ||
Max. signal voltage | 8Vp-p | ||
LED lights display | Wiremap, tone, tracing | ||
Voltage protection | DC 48V | ||
Battery Type | DC9.0V(NEDA 1604/6F22) x 1pc | ||
Dimensions (LxWxD) | 15 x 3.7 x 2cm | ||
NF-801 Receiver specifications | |||
Frequency | 200kHz | ||
Max. working current | 30mA | ||
Earphone jack | 1 | ||
Battery Type | DC9.0V(NEDA 1604/6F22) x1pc | ||
Dimensions (LxWxD) | 12.2 x 4.5 x 2.3cm |
The NF-801 Wire Tracker is a multifunctional and indispensable tool for professionals and enthusiasts working with network cables, electrical wiring, and telecommunications systems. This versatile device offers a wide range of features and benefits, making it an essential tool for various applications. Let’s explore the key features of the NF-801 Wire Tracker in more detail:
Efficient Cable Tracing: The NF-801 Wire Tracker is designed to streamline the process of cable tracing and identification. Whether you’re working in a data center, telecommunications room, or home network, this tool simplifies the task of locating and tracking cables, saving you valuable time and effort.
Cable Mapping and Identification: The device typically allows you to map and identify cables within a network or wiring system. By using its transmitter and receiver units, you can quickly determine the connectivity of cables, making it easier to troubleshoot issues, perform maintenance, and reconfigure connections.
Tone Generator Function: The built-in tone generator feature is incredibly useful for identifying specific cables among a bundle or in a complex network setup. The transmitter sends a unique tone signal through the cable, which can be detected by the receiver unit, helping you pinpoint the correct cable in a crowded environment.
Continuity Testing: The NF-801 Wire Tracker often includes continuity testing capabilities. This allows you to verify that cables are properly connected, identify open or short circuits, and ensure the integrity of the wiring.
