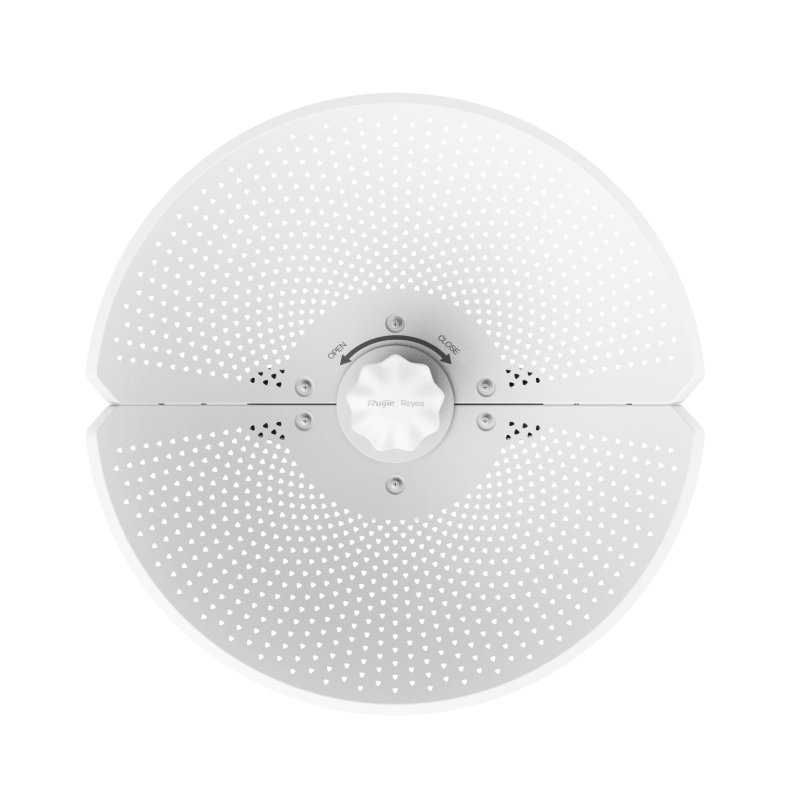

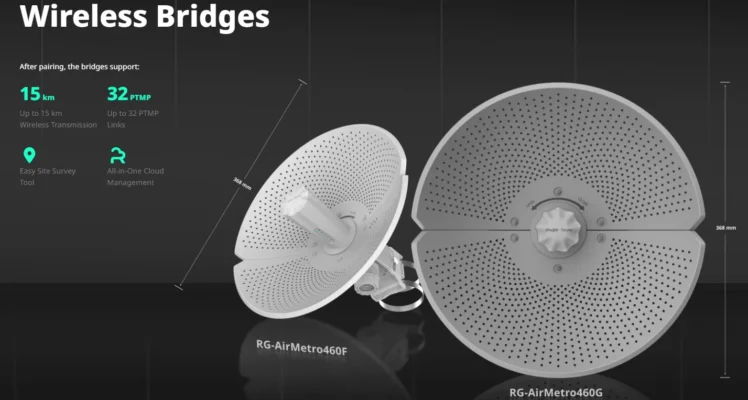

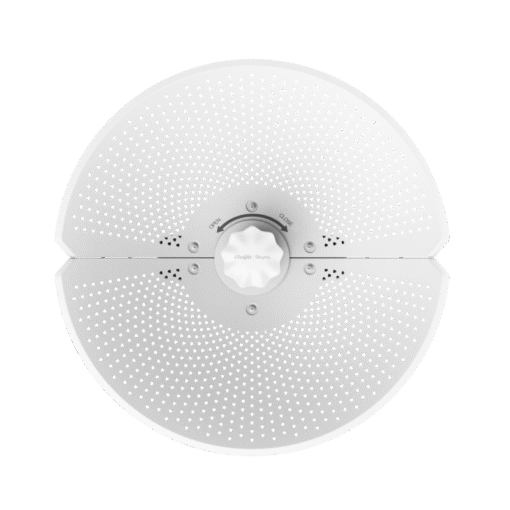

Ruijie Reyee RG-AirMetro460F CPE of RG-AirMetro Series Wireless Bridges

The Ruijie Reyee RG-AirMetro460F 5GHz Long-Range WiFi 5 Point-to-Point PtP Link is designed for demanding environments. This 5GHz PtP link offers unparalleled reliability and performance, boasting a blazing-fast transmission rate of 867Mbps. Whether you’re extending network coverage across vast distances or establishing a secure connection between remote locations, the RG-AirMetro460F delivers robust, seamless connectivity to meet your needs with ease.

The RG-AirMetro460F wireless bridge offers an ideal choice for both WISP, CCTV, Town, City Road, Factory and other scenarios, with extensive coverage without fiber connections and affordable excellence and smooth surveillance.

Technical Specifications:

• Radio Design: 2.4 GHz single-band single-stream, 5 GHz single-band dual-stream
• Operating Frequency Bands:
  – 2.4 GHz: 802.11 b/g/n: 2.4000 GHz to 2.483 GHz
  – 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
• Antenna Type: Directional antenna (horizontal 9°, vertical 9°, point to point)
• Antenna gain: 23 dBi
• Spatial Streams:
  – 2.4 GHz single-stream
  – 5GHz, 2×2, MIMO
• Data Rate:
  – 2.4 GHz: 150 Mbps
  – 5 GHz: 867 Mbps
• Modulation Technology:
  – OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  – DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5 /11Mbps, OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Receive Sensitivity:
  – 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
  – 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
  – 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
• Max. Transmit Power:
  – 2.4 GHz: ≤ 100 mW (20 dBm) (adjustable)
  – 5 GHz: ≤ 400 mW (26 dBm) (single stream)
• Power Step: 1 dBm
• Service Ports: 1× 10/100Base-T port, supporting 24V PassivePoE input
• LED: 1× system LED, 1× port LED, and 3× signal LED
• Power Supply: 24V PassivePoE input (shipped with a 24V PoE adapter)
• Max. Power Consumption: ≤9W
• Installation: Pole-mounted (shipped with metal clamps)
• Wind Resistance Level: 17
• IP Rating: IP65
• Certification: CE
• MTBF: > 400000 hrs

Dimensions:

• Unit Dimensions: 368.50 x 271.00mm (14.50x 10.70in.)
• Net Weight: 2.33kg (5.15lbs.)
• Package Dimensions (LxWxH): 40.2*26.2*14.5cm
• G. Weight: 2.5kg

Temperature and Humidity Requirements:

• Operating Temperature: -40°C to 70°C (-40°F to 158°F) excluding the power adapter
• Note: When a power adapter is used, the maximum operating temperature for both the device and the power adapter is 60°C (140°F)
• Storage temperature: –40°C to 85°C (–40°F to +185°F)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)

Package Contents:

• RG-AirMetro460F Wireless Bridge
• 1x PoE Power Adapter, 24 V, 0.5 A
• 1x Power Cord (0.6 m) (1.97 ft.)
• 2x Reflector
• 1x Mounting Bracket Assembly
• 1x User Manual
• 1x Warranty Card
• 2x Metal Clamp
