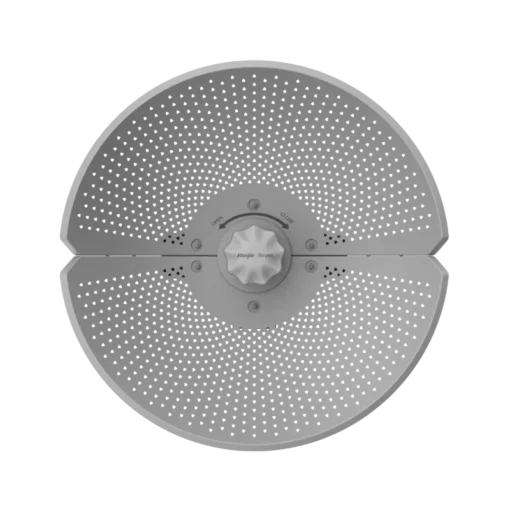

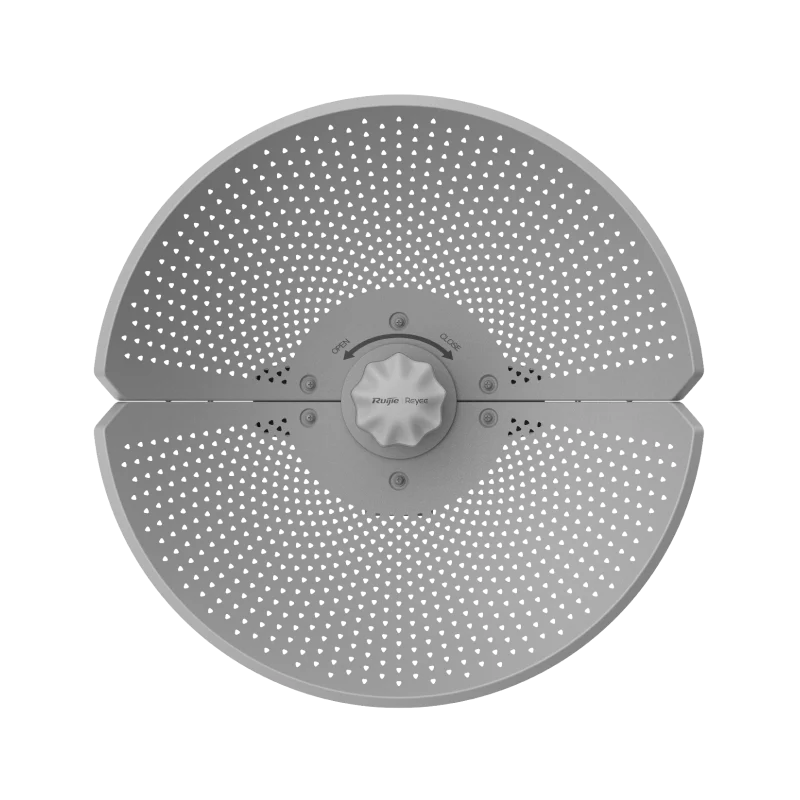

Ruijie Reyee RG-AirMetro460G CPE of RG-AirMetro Series Wireless Bridges

The Ruijie Reyee RG-AirMetro460G Wireless Bridge offers a powerful point-to-point (PTP) solution with a maximum working distance of 15 km. This feature enables businesses to establish reliable high-speed connections between distant locations, providing a seamless network experience for remote sites, branches, or large outdoor areas.

Key Features:

• PTP max. working distance of 15 km
• Supports up to 32 PTMP links
• Easy one-touch pairing in 30 seconds
• 24V Passive PoE
• IP65 weatherproof rating
• Surge protection of 6 kV and ±24 kV ESD
• 220.32 km/h wind survivability
• 5 GHz frequency
• 867 Mbps capacity
• 23 dBi gain with 9° horizontal and vertical angle coverage
• CE certified

Easy and Quick Setup with One-Touch Pairing

Setting up the RG-AirMetro460G is simple and fast, thanks to its one-touch pairing functionality. Within just 30 seconds, users can initiate the connection, making installation quick and hassle-free. This user-friendly feature ensures that even non-technical users can establish strong wireless links in no time, reducing setup time and effort.

High-Performance Wireless Connectivity

Operating at a frequency of 5 GHz, the RG-AirMetro460G provides a robust wireless capacity of 867 Mbps, making it ideal for high-demand environments. With a 23 dBi gain and a narrow 9° horizontal and vertical beam angle, it ensures stable and focused connectivity across long distances, delivering high-speed internet and data transfer with minimal interference.

Rugged and Durable for Harsh Environments

Built to withstand tough environmental conditions, the RG-AirMetro460G is IP65-rated, providing excellent protection against dust and water. Additionally, it features 6 kV surge protection and ±24 kV electrostatic discharge (ESD) resistance, ensuring the device remains operational even in harsh weather or electrical surges, making it ideal for outdoor deployments.

Designed for High Winds and Extreme Temperatures

With a wind survivability rating of 220.32 km/h (137 mph), the RG-AirMetro460G can endure strong winds, ensuring uninterrupted performance even in severe weather conditions. It is also designed to operate in a wide temperature range, from –40 °C to +70 °C, making it suitable for deployment in both hot and cold climates, providing reliable service in a variety of locations.

Streamlined Management with Cloud Integration

The RG-AirMetro460G simplifies network management with its all-in-one cloud management system. This feature allows users to easily monitor, configure, and maintain the bridge remotely from anywhere. With cloud-based management, users can save time and effort, ensuring that their wireless links remain optimized and functioning at peak performance.

Versatile Pairing and Site Survey Tools

The RG-AirMetro460G supports both one-touch pairing in 30 seconds and app pairing in 2 minutes, offering flexibility in installation methods. Additionally, it comes with a built-in site survey tool, an alignment tool, and spectrum scanning capabilities, which assist in optimizing the wireless link, ensuring the best possible performance in various deployment scenarios.

Specifications

Category	Specification	Details
Model Version	RG-AirMetro460G	Wireless Bridge
Working Distance	Max Distance	15 km
Gain	Antenna Gain	23 dBi
Angle	Antenna Coverage	H: 9° V: 9°
Capacity	Wireless Capacity	5 GHz, 867 Mbps
Port	Network Port	1 x 10/100/1000 Mbps
IP Rating	Ingress Protection	IP65
Operating Temperature	Temperature Range	-40 °C to +70 °C
ESD Protection	Electrostatic Discharge Protection	±24 kV Contact/ Air
Surge Protection	Total	6 kV
Power	Power Supply	24 V Passive PoE
LED Indicators	LED Lights	3 Signal Strength LEDs 1 LAN LED, 1 System LED
Pairing Method	Pairing Options	One-touch pairing in 30 sec App pairing in 2 mins
Dimensions	L x W	368.5 x 271 mm
Certification	Compliance	CE
Wind Survivability	Wind Resistance	220.32 km/h
