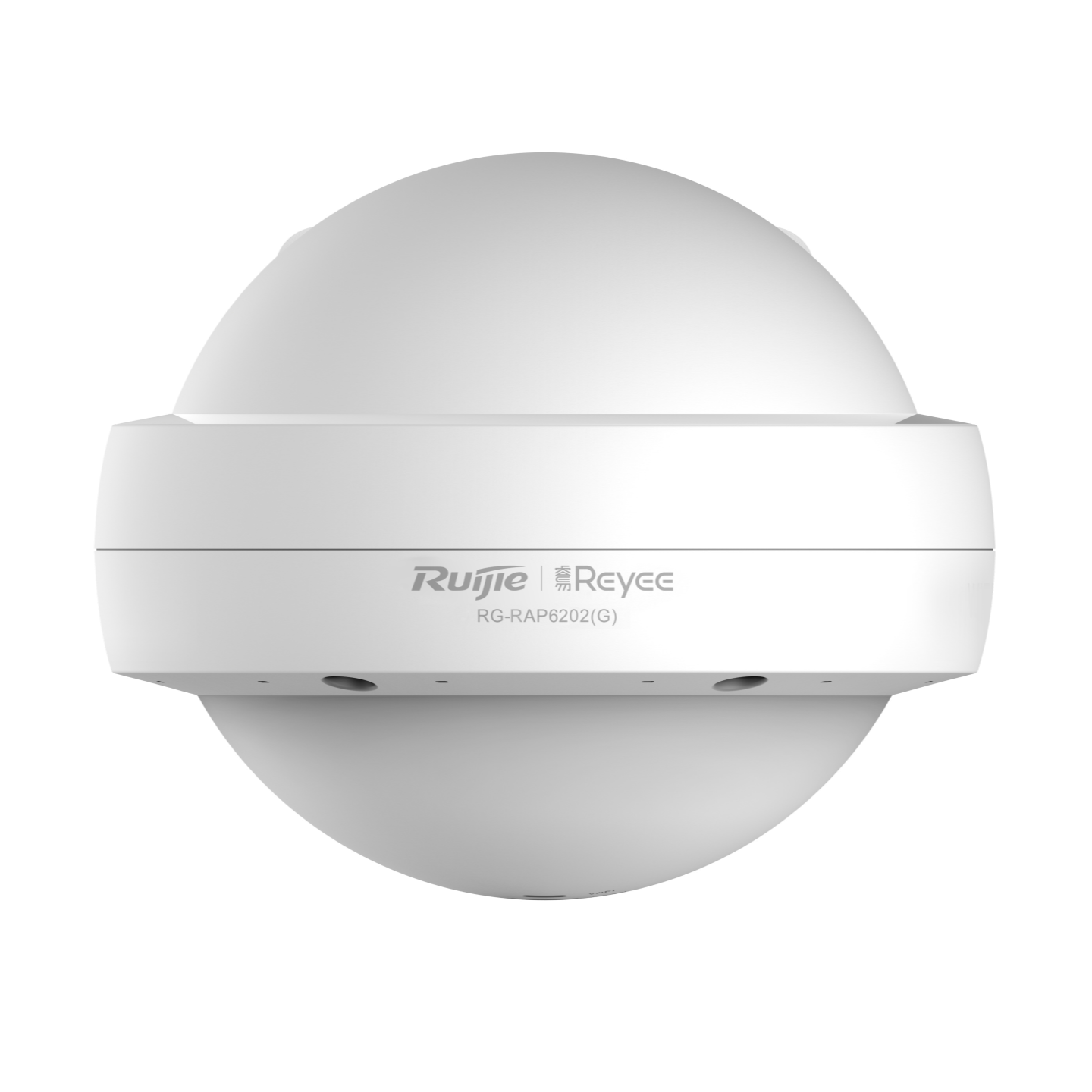

Ruijie Reyee RG-RAP6202(G) Outdoor Wi-Fi 5 Access Point
The Ruijie RG-RAP6202(G) is a purpose-built, industrial-grade outdoor Wireless Access Point (AP) designed to deliver reliable, high-speed Wi-Fi in challenging environments. As part of Ruijie’s extensive networking portfolio, this AP targets the mid-range outdoor market, offering a robust balance of performance, durability, and cost-effectiveness for enterprise and carrier deployments.
Hardware Specifications |
|
| Model | RG-RAP6202(G) |
| Wi-Fi Radio | |
| 6 GHz Wi-Fi | No |
| 5 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11a/n)Wi-Fi 5 (IEEE 802.11ac) |
| 2.4 GHz Wi-Fi | Wi-Fi 4 (IEEE 802.11b/g/n) |
|
Operating band |
IEEE 802.11b/g/n, 2.400 GHz to 2.4835 GHzIEEE 802.11a/n/ac, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725
GHz, 5.725 GHz to 5.850 GHz
Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands. |
|
Radio design |
Dual-radio4 spatial streams
● 2.4 GHz: 2 x 2, MIMO ● 5 GHz: 2 x 2, MIMO |
| FEM | 2.4 GHz: 2 x eFEM5 GHz: 2 x eFEM |
| 6 GHz channel width | No |
| 5 GHz channel width | Auto/20/40/80 MHz |
| 2.4 GHz channel width | Auto/20/40 MHz |
| Maximum wireless data rate | 1266 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 866 Mbps |
| 2.4 GHz wireless data rate | 400 Mbps |
| Maximum transmit power | Frequency bands and maximum Effective Isotropic RadiatedPower (EIRP): |
| Hardware Specifications | |
| Model | RG-RAP6202(G) |
| LEDs | 1 x system status LED1 x Wi-Fi LED
2 x Ethernet port LEDs |
Power Supply and Consumption |
|
|
Power supply |
● DC power adapter● PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply | Yes, one DC power connector (12 V, 1.5 A) |
| Dimensions of the DC connector | Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.) |
| PoE In standard | ● IEEE 802.3af (PoE)● IEEE 802.3at (PoE+) |
| PoE budget | No |
| Maximum power consumption | 12.95 W |
Environment and Reliability |
|
| Operating temperature | –30°C to +65°C (–22°F to +149°F) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating humidity | 0% RH to 100% RH (non-condensing) |
| Storage humidity | 0% RH to 100% RH (non-condensing) |
| Mounting options | Wall/Pole |
| IP rating | IP68 |
| Surge protection | Ethernet port: ±4 kV for common mode |
| MTBF | 250,000 hours |
| Certification and Regulatory Compliance | |
| RoHS | Yes |
| Safety compliance | EN 62368-1 |
| EMC | EN 55032EN 55035 |
Software Specifications |
|
| Model | RG-RAP6202(G) |
| Basic Configurations | |
| AP mode | Yes |
| Routing mode | Yes |
|
Internet access mode |
Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 addressPPPoE |
Interface |
|
| IPTV transparent transmission | No |
| Ethernet Interface | |
| PPPoE clients | Yes |
| Ethernet Switching | |
| IEEE 802.1Q VLAN | Yes |
WLAN |
|
| Maximum number of associated wireless clients | 64 (2.4 GHz)110 (5 GHz)
110 (2.4 GHz and 5 GHz enabled) |
| Recommended number of associated wireless clients | 16 (2.4 GHz)64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs | 8 |
| Radio-based client limiting | Yes |
| Layer 2 isolation | Yes |
| OFDMA | No |
| WMM | Yes |
| DFS | Yes |
| MLO | No |
| 4K-QAM | No |
Package Contents |
|
| Model | RG-RAP6202(G) |
| Package Contents | |
|
Package Contents |
1 x AP2 x Pole clamps
1 x Mounting bracket 4 x Expansion anchors (M8 x 60 mm) 2 x Internal/External hex machine screws (M8 x 20 mm) 2 x Cable glands (pre-installed) 1 x Connecting rod (pre-installed) 1 x User Manual 1 x Warranty Card |
| Accessories | |
| Power adapter | No |
