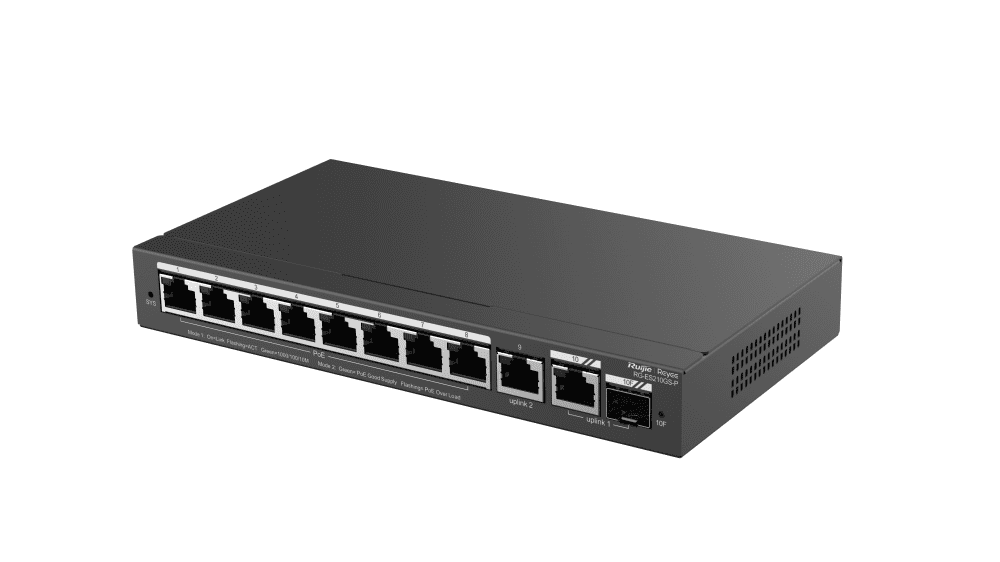

Ruijie RG-ES210GS-P, 10-Port Gigabit Smart Managed Switch
The Ruijie RG-ES210GS-P is a compact, feature-rich smart managed switch designed for small-to-medium businesses, enterprise edge deployments, and sophisticated home networks. Combining enterprise-level management capabilities with an accessible interface, this switch bridges the gap between basic unmanaged switches and fully managed enterprise gear.
Hardware Specifications |
|
| Model | RG-ES210GS-P |
| Product Information | |
| Warranty | 3 years |
| Port Specifications | |
| Total number of RJ45 ports | 10 |
| Total number of optical ports | 1 |
| Number of 1GE combo ports | 1 |
| Number of 1GE SFP ports | 1 |
| Number of 10/100/1000BASE-T ports | 10 |
| Reset button | 1 |
|
DIP switch |
LED mode switch toggled to left (Mode 1): The port LED status indicates the status of traffic transmission. Solid green means that the port is link up, while blinking green means that the port is transmitting and receiving data.
LED mode switch toggled to right (Mode 2): The port LED status indicates the PoE status. Solid green means that the port is supplying power, while blinking green means that the port is in power overload state. |
Power Supply and Consumption |
|
| PoE Out standard | PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 8 |
| Number of PoE/PoE+ Out ports | 8 |
| PoE budget | 120 W |
Hardware Specifications |
|
| Model | RG-ES210GS-P |
| PoE power pins | 1–2 (+), 3–6 (-) |
|
Power input |
DC adapter:● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 2.5 A Output: ● Rated output voltage: 54 V DC ● Maximum output current: 2.4 A |
| Maximum power consumption | 10 W (with no PoE load)130 W (with PoE full load) |
| Power supply | DC power adapter |
| System Specifications | |
| Flash memory | 4 MB |
| Forwarding rate | 14.8 Mpps |
| Switching capacity | 20 Gbps(bit/s) |
Dimensions and Weight |
|
| Casing | Metal |
| Product dimensions (W x D x H) | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.) |
| Weight | 0.55 kg (1.21 lbs) (without packaging materials)1.65 kg (3.64 lbs) (with packaging materials) |
| Shipping weight | 1.65 kg (3.64 lbs) |
Environment and Reliability |
|
| Fan | Fanless design |
| Cooling | Natural cooling |
| Mounting options | Wall/Desk |
| Hot swapping of cables | Hot swapping supported by the service port and powerconnector |
| MTBF | 200,000 hours |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
Hardware Specifications |
|
| Model | RG-ES210GS-P |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 8 kVContact discharge: 6 kV |
| Surge protection | Service port: ±6 kV for common modePower connector: ±4 kV for common mode and ±2 kV for differential mode |
| Certification and Regulatory Compliance | |
|
EMC |
EN 55032EN 61000-3-2
EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62638-1 |
| Certification | CE, FCC |
Package Contents |
|
| Model | RG-ES210GS-P |
| Manual | |
| User Manual | 1 |
| Warranty Card | 1 |
