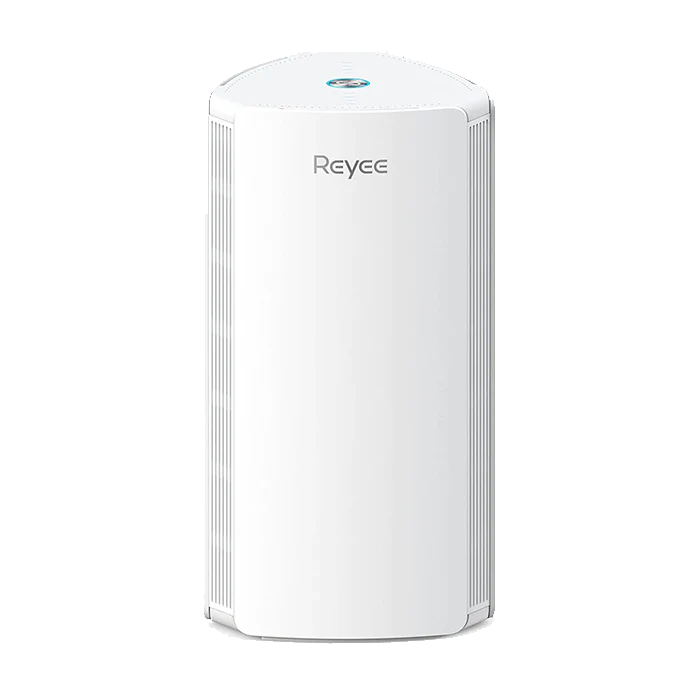

Ruijie RG-M18 1800M Wi-Fi 6 Dual-band Gigabit Mesh Router
Original price was: KSh 15,500.00.KSh 15,000.00Current price is: KSh 15,000.00. excl. VAT
- An unprecedented wireless experience with Wi-Fi 6
- Strong signal received, feels like “wall-less”
- Born for multi user, support up to 192 terminals
- Exclusive Reyee Mesh provides full space coverage Wi-Fi solution
- Smart signal indicator, find the best spot to place a sub router
- Take control of your home network at your fingertips
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network
Ruijie RG-M18 1800M Wi-Fi 6 Dual-band Gigabit Mesh Router
The Ruijie RG-M18 is a consumer/SMB-oriented Wi-Fi 6 mesh router system designed to deliver whole home wireless coverage through a simple, scalable setup. Positioned in the entry level Wi-Fi 6 mesh segment, it offers modern wireless technology, user friendly management, and Ruijie’s reliability at an accessible price point.
Hardware Specifications |
|
| Model | RG-M18 |
| Wi-Fi Radio | |
|
Operating band |
IEEE 802.11b/g/n/ax，2.400GHz~2.4835GHz； IEEE 802.11a/n/ac/ax，5.150GHz～5.350GHz； IEEE 802.11a/n/ac/ax，5.470GHz～5.725GHz；IEEE 802.11a/n/ac/ax，5.725GHz～5.850GHz； |
| FEM | EPA |
| Max. Wi-Fi Speed | 2.4 GHz, 573 Mbps5 GHz, 1200 Mbps |
|
Maximum transmit power |
2.4 GHz:802.11b: 26 dBm
802.11g: 6 Mbps 26 dBm; 54 Mbps 23 dBm 802.11n: MCS0 26 dBm; MCS7 22 dBm 802.11ac: MCS0 26 dBm; MCS9 21 dBm 802.11ax: MCS11 20 dBm
5 GHz: 802.11a: 6 Mbps 26dBm; 54 Mbps 23 dBm 802.11n: MCS0 27 dBm; MCS7 24 dBm 802.11ac: MCS0 26 dBm; MCS9 23 dBm 802.11ax: MCS0 27 dBm; MCS9 22 dBm; MCS11 19.5 dBm Note: The transmit power varies according to regulations in different countries and regions. |
|
Maximum transmit power(EIRP) |
Frequency bands using and the max EIRP: Note: Country specific restrictions apply European Union & United Kingdom:2400-2483.5 MHz, EIRP ≤ 20 dBm
5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm Myanmar: 2400-2483.5 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Thailand: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400-2483.5 MHz, EIRP ≤ 27 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 23 dBm Egypt： 2400-2483.5 MHz, EIRP ≤ 20 dBm |
Hardware Specifications |
|
| Model | RG-M18 |
| 5150-5350 MHz, EIRP ≤ 23 dBmVietnam:
2400-2483.5 MHz, EIRP ≤ 23 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm |
|
| MIMO | 2.4 GHz, 2 x 25 GHz, 2 x 2 |
| Wi-Fi standard | Wi-Fi 6 (IEEE 802.11ax) |
| Antenna | |
| Antenna | 4 x internal antennas |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna gain (5 GHz) | 4 dBi |
| Certification and Regulatory Compliance | |
| Certification | CE |
Dimensions and Weight |
|
| Product dimensions (W x D x H) | 91.5 mm × 91.5 mm × 180.6 mm (3.60 in. × 3.60 in. × 7.11 in.)(excluding antennas) |
| Weight | 0.369 kg (0.81 lbs) (without packaging materials)0.605 kg (1.33 lbs) (with packaging materials) |
Environment and Reliability |
|
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Operating temperature | -10 °C to +45 °C (14 °F to 113 °F) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Port Specifications | |
| LEDs | 1 x system status LED4 x Mesh LEDs |
| LAN ports | 3 x 10/100/1000BASE-T ports |
| WAN ports | 1 x 10/100/1000BASE-T port |
| Hardware Specifications | |
| Model | RG-M18 |
Power Supply and Consumption |
|
| Power supply | DC 12 V 1.5 A |
| Product Information | |
| Warranty | 3 years |
| System Specifications | |
| RAM | 256 MB |
| Software Specifications | |
| Model | RG-M18 |
| Automatic switching between wiredand wireless repeater mode | Yes |
| Recommended hop count | 2 |
| Maximum number of clients | 192 |
| Maximum number of devices | 32 |
Security |
|
| Encryption mode | Yes |
| System Performance Capacity | |
| Maximum number of concurrentclients | 64 (2.4 GHz)128 (5 GHz) |
| Recommended number ofconcurrent clients | 12 (2.4 GHz)36 (5 GHz) |
| IPTV/IGMP client capacity | 5 |
| IPTV/IGMP multicast capacity | 5 |
| IPTV/IGMP wired forwardingperformance | 20 Mbps |
| Recommended camera limit | 6 (2.4 GHz)16 (5 GHz) |
VPN |
|
| Number of concurrent tunnelssupported by the OpenVPN server | 8 |
| Certificate authentication | Yes |
| OpenVPN bandwidth | 13 Mbps |
| OpenVPN client | Yes |
| OpenVPN server | Yes |
| Server domain name configuration | Yes |
| Username and passwordauthentication | Yes |
| Number of concurrent tunnelssupported by the PPTP VPN server | 30 |
Package Contents |
|
| Model | RG-M18 |
| Accessories | |
| Ethernet cable | 1 |
| Power adapter | 1 |
| Device | |
| Device | 1 |
| Manual | |
| User Manual | 1 |
| Warranty Card | 1 |
