Ruijie RG-NBS5200-48GT4XS-UP 48-Port Gigabit PoE Switch
Original price was: KSh 162,000.00.KSh 160,000.00Current price is: KSh 160,000.00. excl. VAT
- 48-Port gigabit Layer 3 managed PoE switch, 4 SFP+ uplink
- Enterprise-class Quality Ensures High Performance
- 6KV surge protection reduces the possibility of port damage
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Visit our store and enjoy:
- Genuine, brand new, sealed stock
- Price-match against authorized dealers
- Installation & configuration services available
- Expert advice on compatibility with your network

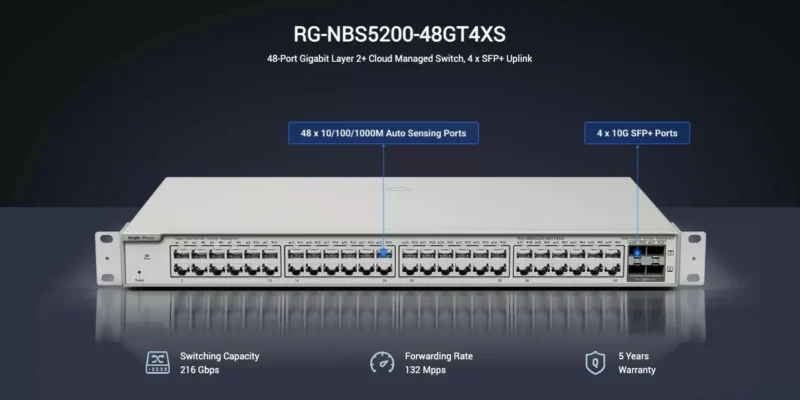

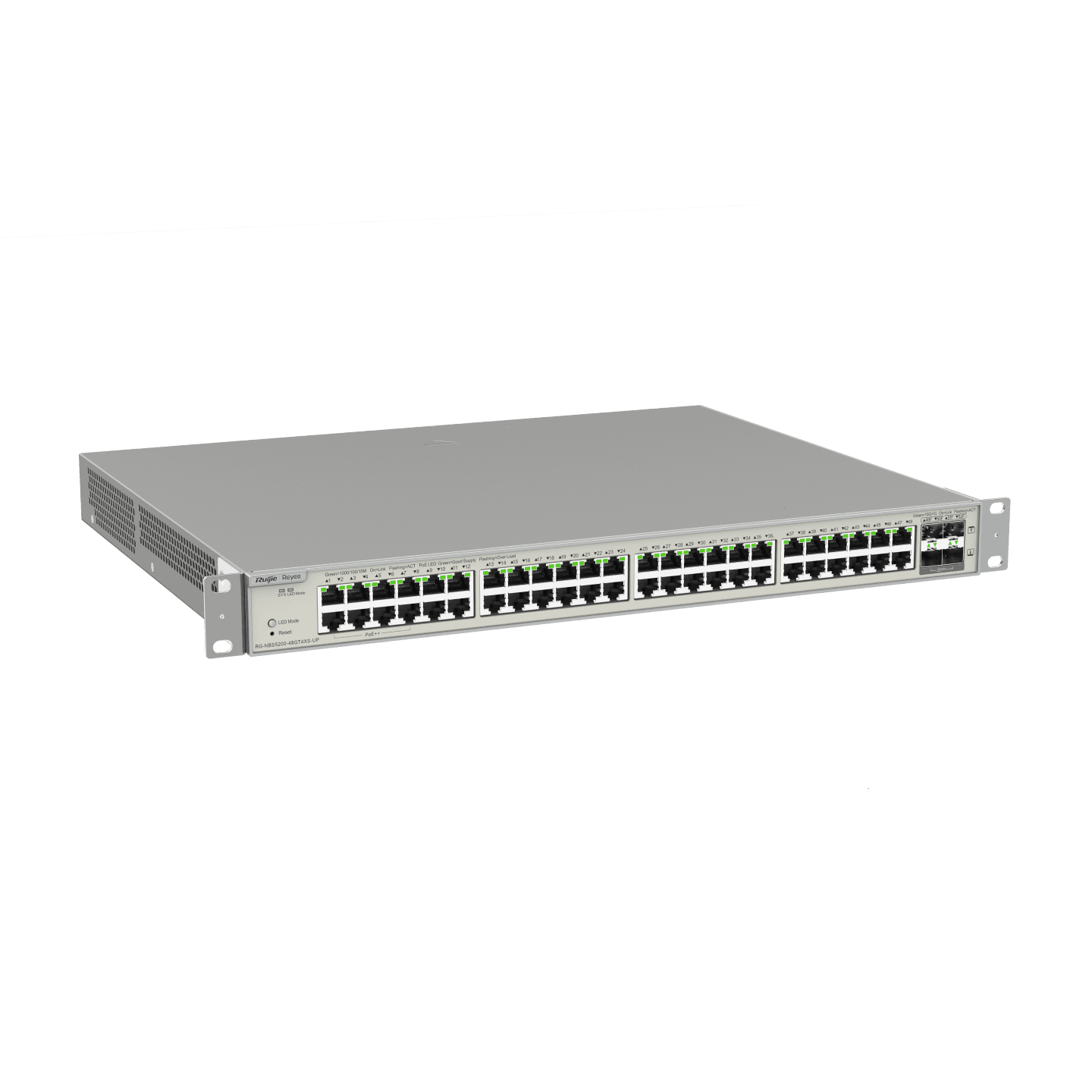

Ruijie RG-NBS5200-48GT4XS-UP 48-Port Gigabit Layer 3 PoE Switch
The Ruijie Reyee RG-NBS5200-48GT4XS-UP 48-Port L3 Cloud Managed GbE PoE+/PoE++ Pre-Configured Access Switch is a high-performance switch, ideal for enterprise networking needs. It includes forty-eight (48) Gigabit PoE+ ports, including eight (8) PoE++ ports, and four (4) additional SFP+ uplink ports, providing a versatile networking solution.
Designed with enterprise-class quality, it offers reliable performance and is fortified with 6KV surge protection to minimise port damage. The switch features robust security policies for network protection and allows easy lifetime management through Ruijie Cloud, enabling convenient remote network management.
Features
- Pre-configured for maximum efficiency.
- Features forty-eight (48) Gigabit PoE+ ports, including eight (8) PoE++ ports, and four (4) SFP+ uplink ports, providing extensive networking possibilities.
- Built with enterprise-class quality, ensuring reliable and high-performance operation suited for demanding business environments.
- Equipped with 6KV surge protection, significantly reducing the risk of port damage and enhancing the switch’s durability.
- Offers multiple security policies to safeguard your network from various threats, ensuring a secure and protected networking environment.
- Provides lifetime access to Ruijie Cloud for easy and remote management of the network, accessible from anywhere at any time.
Specifications
| Hardware Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| Product Information | |
| Warranty | 5 years |
| Port Specifications | |
| Total number of RJ45 ports | 48 |
| Total number of optical ports | 4 |
| Number of 1GE combo ports | No |
| Number of 1GE SFP ports | No |
| Number of 10GE SFP+ ports | 4 |
| Number of 10/100BASE-T ports | No |
| Number of 10/100/1000BASE-T ports | 48 |
| Number of 10/100/1000/2500BASE-T ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-Tports | No |
| Module slots | No |
| Reset button | 1 |
| DIP switch | No |
| Power Supply and Consumption | |
| PoE Out standard | Ports 1–8: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)Ports 9–48: PoE/PoE+ (IEEE 802.3af/at) |
| Number of PoE Out ports | 48 |
| Number of PoE/PoE+ Out ports | 48 |
Hardware Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| Number of PoE/PoE+/PoE++ Out ports | 8 |
| PoE budget | 740 W |
| PoE power pins | Ports 1–8: 1–2(-), 3– 6(+), 4–5(+), 7–8(-);Ports 9–48: 1–2 (+), 3–6 (-) |
| Power input | 220 V AC power supply:● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 10 A |
| Maximum power consumption | 75.6 W (with no PoE load)815.6 W (with full PoE load) |
| Power output | No |
| Power supply | Fixed power supply |
System Specifications | |
| RAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding rate | 132 Mpps |
| Switching capacity | 176 Gbps(bit/s) |
| Dimensions and Weight | |
| Casing | Metal |
| Product dimensions (W x D x H) | 440 mm x 357.6 mm x 43.6 mm (17.32 in. x 14.08 in. x 1.72 in.) |
| Weight | 5.64 kg (12.43 lbs) (without packaging materials) |
| Shipping weight | 7.15 kg (15.76 lbs) |
| Environment and Reliability | |
| Hot swapping of fan modules | No |
| Fan | 3 x fixed fans |
| Cooling | Air cooling, side-to-rear airflow |
| Acoustic noise | 25°C (77°F): 60 dB |
Hardware Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| Mounting options | Rack |
| Hot swapping of cables | Service ports support hot swapping of cables. |
| MTBF | 400,000 hours |
| Operating temperature | 0°C to +50°C (32°F to 122°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to+16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| Corrosion class | No |
| ESD protection | Contact discharge: 6 kVAir discharge: 8 kV |
| Surge protection | Service port: ±6 kV for common modePower connector: ±6 kV for both common mode and differential mode |
| Certification and Regulatory Compliance | |
| EMC | EN 55032EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | IEC 62368-1 |
| Certification | CE, FCC |
Software Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| Authentication | |
| RADIUS | Yes |
| 802.1X authentication | Yes |
| Port-based 802.1X authentication | Yes |
| MAC address-based 802.1Xauthentication | Yes |
| Guest VLAN | Yes |
| Basic Configurations | |
| PoE watchdog | Yes |
| Online upgrade | Yes |
Ethernet Switching | |
| Maximum number of VLANs | 4094 |
| Maximum number of MAC addressentries | 16000 |
| Interface flow control | Yes |
| MAC address-based VLAN | No |
| IP subnet–based VLAN assignment | No |
| IEEE 802.1Q VLAN | Yes |
| Basic QinQ | No |
| VLAN configuration supported onLAN ports | Yes |
| Voice VLAN | Yes |
| STP (IEEE 802.1d) | Yes |
| RSTP (IEEE 802.1w) | Yes |
| MSTP (IEEE 802.1s) | Yes |
| LLDP | Yes |
Software Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| LLDP-MED | Yes |
| Static MAC address | Yes |
| MAC address filtering | Yes |
| Static aggregation | Yes |
| LACP | Yes |
| Inbound or outbound rate limitingbased on interface traffic | Yes |
Gateway Features | |
| 802.1p priority-based trafficclassification | Yes |
| DSCP priority-based trafficclassification | Yes |
| Egress queues based on 802.1p andDSCP priorities | Yes |
| SP | Yes |
| WRR | Yes |
| SP+WRR | Yes |
| Global QoS | Yes |
Interface | |
| Jumbo frame length (MTU) | 9216 bytes (interface configuration mode) |
| EEE | Yes |
| Cable test | Yes |
| IP Routing | |
| Maximum number of IPv4 staticroutes | 500 |
| IPv6 routing table size (networkroute) | 500 |
| Maximum number of IPv6 staticroutes | 500 |
Software Specifications | |
| Model | RG-NBS5200-48GT4XS-UP |
| Number of VCS members | 2 |
| System dual backup | Yes(Only supported on devices with a factory-installed software version of ReyeeOS 2.320 or later) |
| Enabling dual backup for thepartition Uboot (based on a single flash memory) | Yes |
| Load balancing | No |
| ERPS | Yes:Stand-alone No:Hot standby |
| Security | |
| Maximum number of ACEs | Number of ACEs in the inbound direction of an interface: 1900Number of ACEs in the outbound direction of an interface: 0 |
| Port isolation | Yes |
| Broadcast storm control | Yes |
| Multicast storm control | Yes |
| Unknown unicast storm control | Yes |
| DHCP snooping | Yes |
| Standard ACL | Yes |
| Extended MAC ACL | Yes |
| Extended IP ACL | Yes |
| IPv6 ACL | Yes |
| IP-MAC-port binding | Yes |
| ARP anti-spoofing | Yes |
| IP source guard | Yes |
| CPU Protection Policy | Yes |
| System Performance Capacity | |
| Recommended camera limit | 200 W H265: 400400 W H265: 200 |
